Product Description :

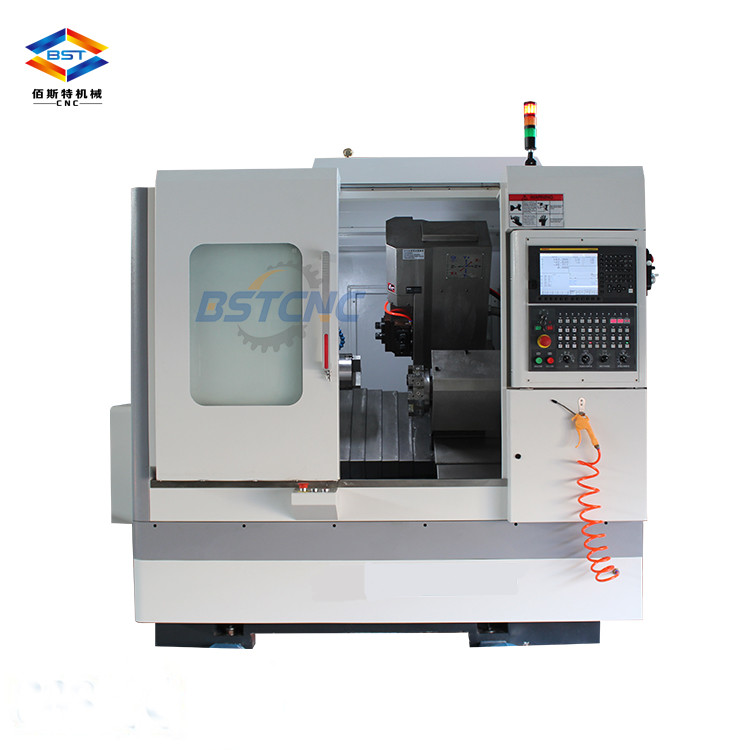

The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.
Standard configuration:
|
Item |
Unit |
CK46D |
|
|
1 |
Max.Swing Over Bed |
mm |
450 |
|
2 |
Max.Swing Over Carriage |
mm |
130 |
|
3 |
Max.Turning Length |
mm |
450 |
|
4 |
Carriage Length |
mm |
780 |
|
5 |
Lathe Bed Structure |
|
30° Integral inclined lathe |
|
6 |
Distance Between Carriage Of Spindle |
mm |
80 |
|
7 |

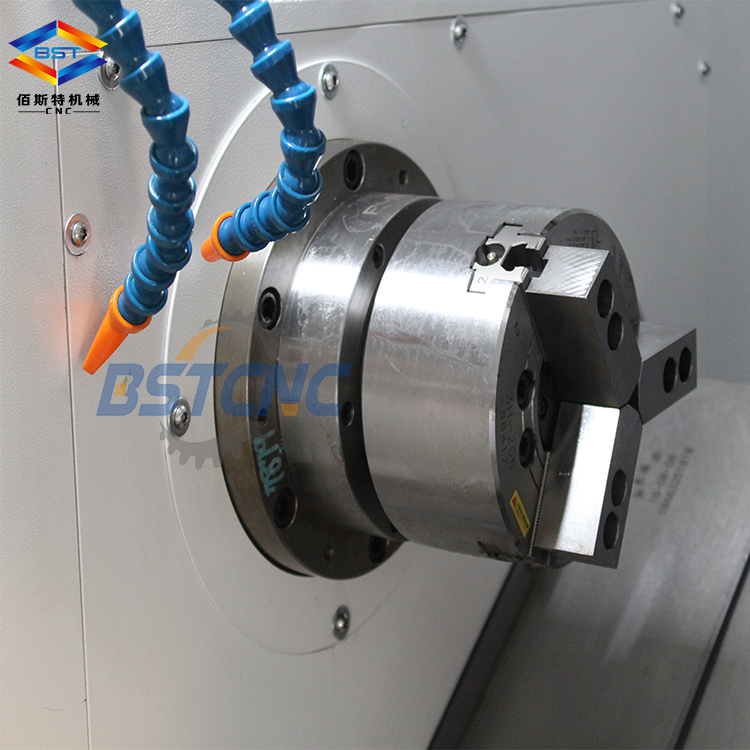

Spindle Nose |
|
A2-5 |
|
8 |
Spindle Speed Range |
mm |
50-4500 |
|
9 |
Max. Spindle speed |
rpm |
4000 |
|
10 |
Spindle Bore |
mm |
56 |
|
11 |
Hole through Bar Diameter |
mm |
45 |
|
12 |
Main Motor (C Axis) Spindle Motor |
kw |
7.5 |
|
13 |

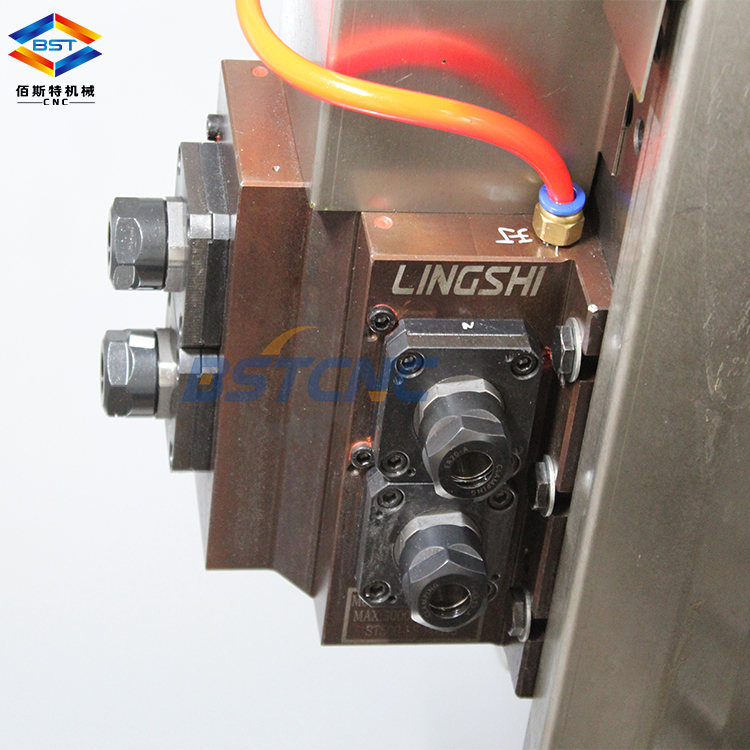

Milling Head (Y Axis) |
|
Side 4 And End 4 |
|
14 |
Milling Head Power |
kw |
2.3 |
|
15 |
Milling Head Speed |
r/min |
3000 |
|
16 |
Distance Of Each Milling Head |
mm |
60 |
|
17 |
X Axis Travel |
mm |
500 |
|
18 |
Z Axis Travel |
mm |
450 |
|
19 |
Y Axis Travel |
mm |
240 |
|
20 |

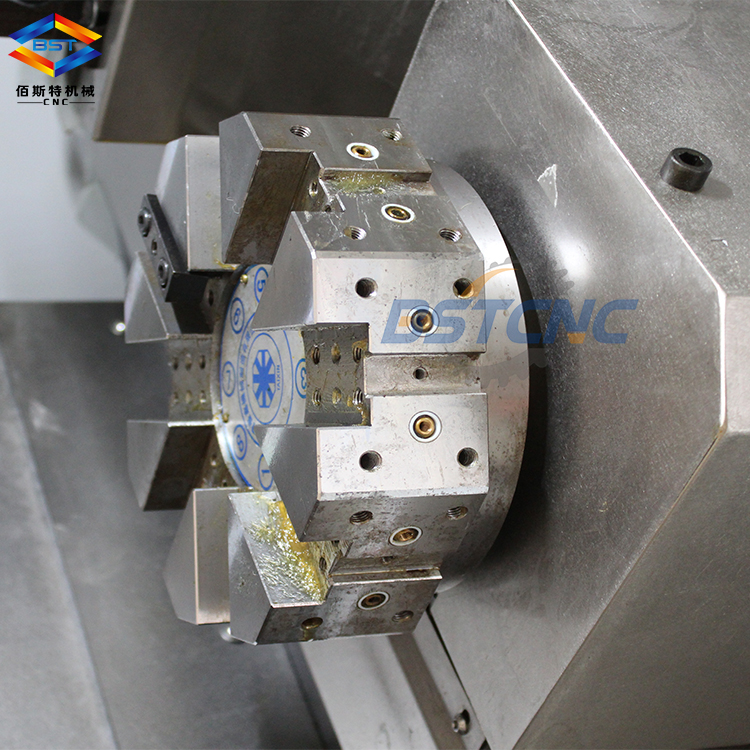

Turret |
|
Taiwan 8-station electric Turret |
|
21 |
X/Z/Y Axis Rapid Feed |
m/min |
24/24/15 |
|
22 |
X/Y/Z Positioning Accuracy |
mm |
0.006 |
|
23 |
X/Y/Z Repositioning Accuracy |
mm |
0.003 |
|
24 |
Weight |
kg |
3000 |
|
25 |
Machine Size |
mm |
2500x1800x1800 |
