Product Description :

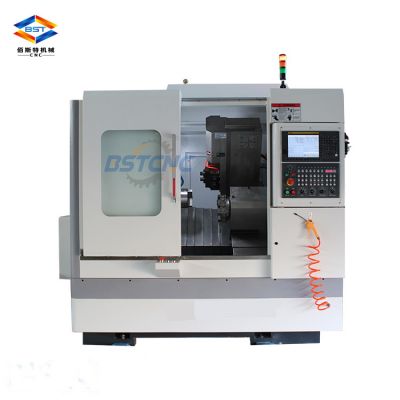

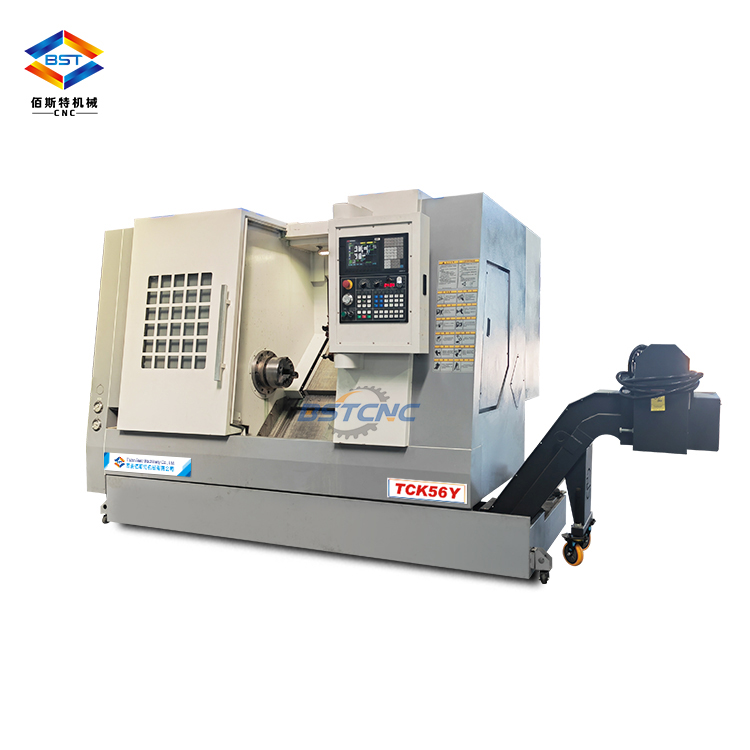

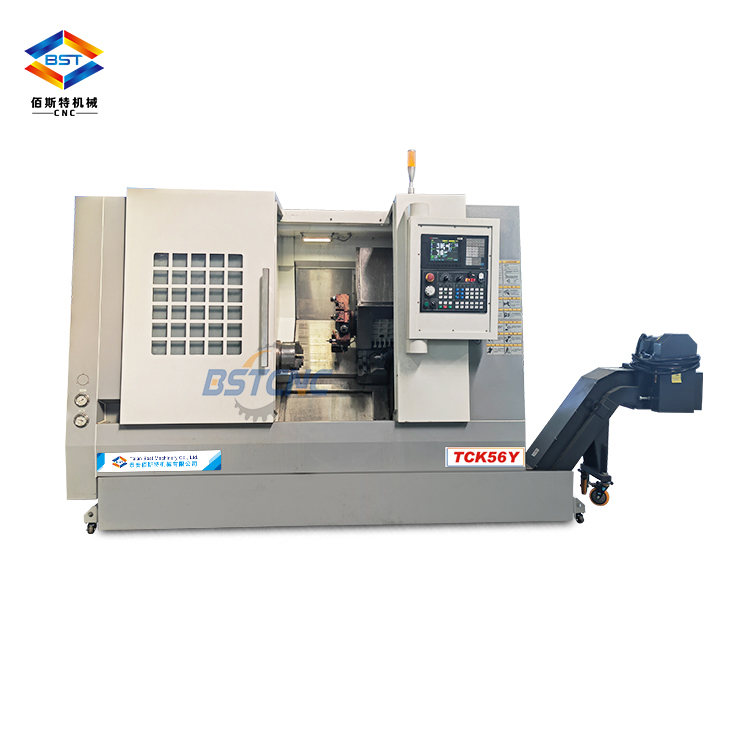

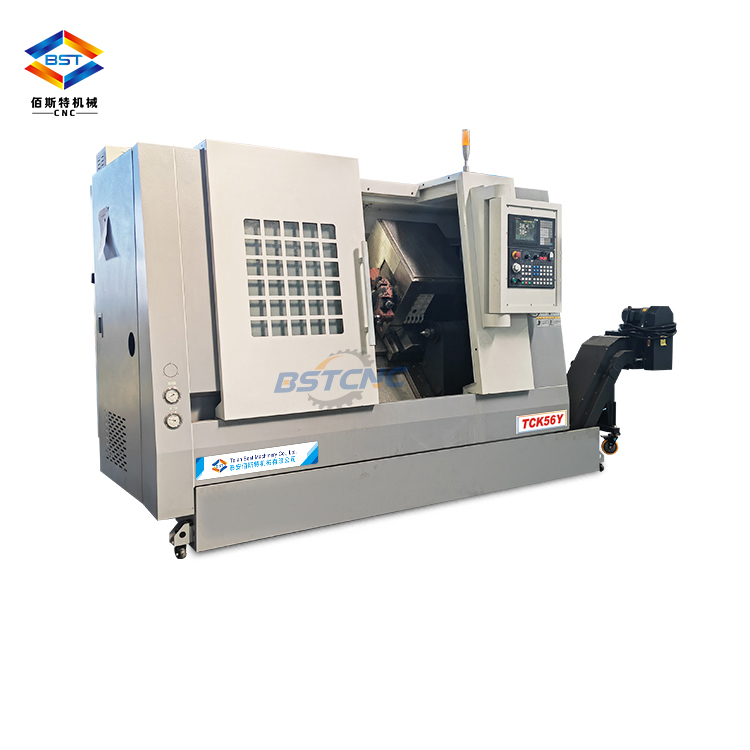

The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.
Standard configuration:
Optional configuration:
|
Item |
Unit |
Specification |
Remark |
|
|
Max.swing diameter over bed |
mm |
560 |
|
|
|
Max.processing length |
mm |
400 |
|
|
|
Max. processing diameter |
mm |
300 |
12-station power turret |
|
|

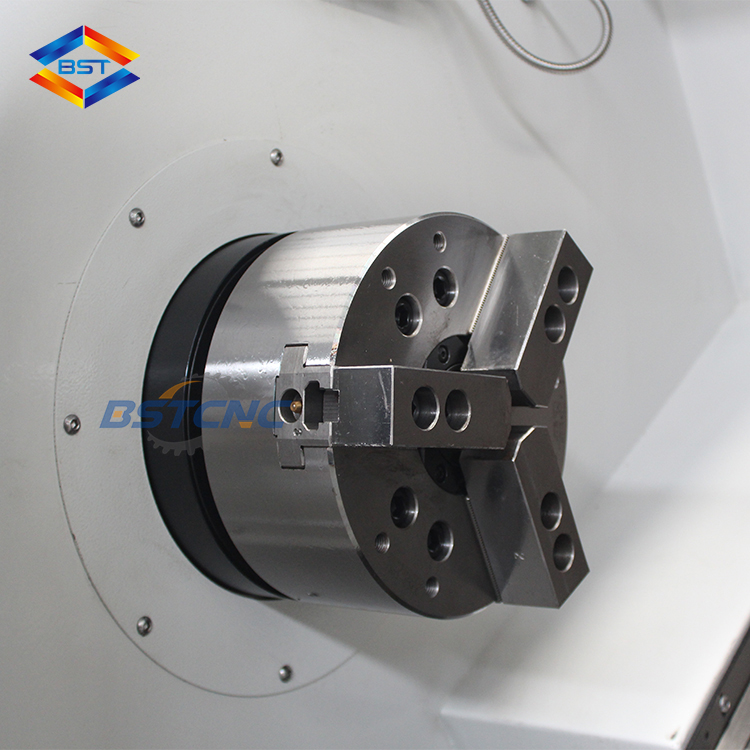

Spindle head form |
|
A2-6 |
Electric spindle |
|
|
Spindle bore |
mm |
65 |
|
|
|
Hole through spindle bore |
|
50 |
|
|
|
Main spindle |
Spindle speed range |
r/min |
50～4500 |
|
|
Spindle torque |
|
144N.m |
|
|
|
Main motor power |
KW |
30KW |
|
|
|
Travel |
Max. travel of X/Z/Y/C |
mm |
200/550/±35/360° |
|
|
Rapid speed of X/Z/Y/C |
|
30/30/12/200m/min |
|
|
|
Tailstock travel |
mm |
450 |
|
|
|
Tailstock sleeve travel |
mm |
100 |
||
|
Tailstock sleeve taper |
|
MT5 |
||
|

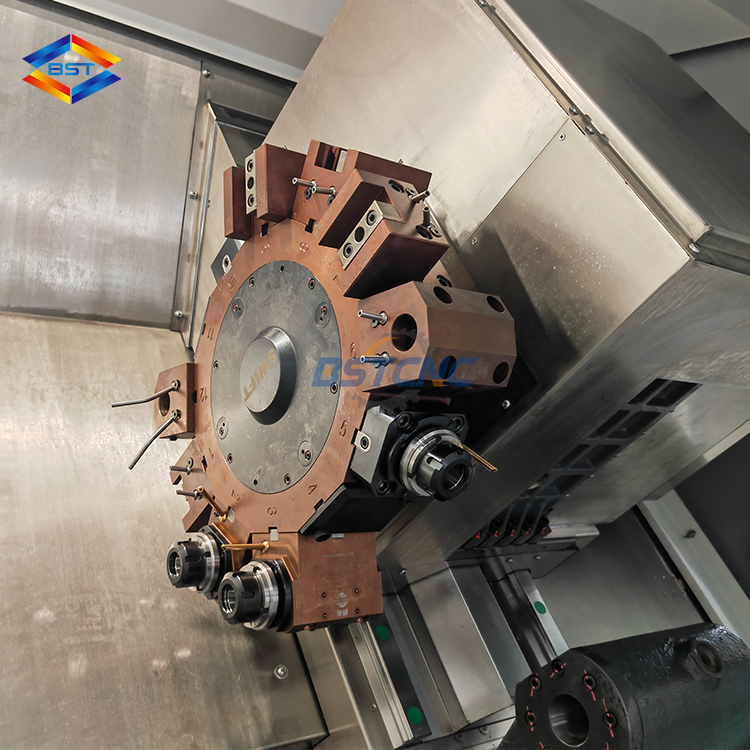

Turret |
Size |
BMT40-ER20 |
|
|
|
Type |
12 station power turret |
|
||
|
Cutting Tool size |
Outer circle cutting tool |
mm |
20×20 |
|
|
Boring tool diameter |
mm |
Ф25/Ф20 |
|
|
|
Live toolholder |
mm |
BMT40-ER20 |
|
|
|
ATC choose the nearest tool |
|
Yes |
|
|
|
Max. load |
Disc Workpiece |
kg |
200(with chuck and other accessories ) |
|
|
Shaft workpiece |
kg |
500(with chuck and other accessories ) |
|
|
|
Weight |
kg |
3800 |
|
|
|
Machine size(LxWxH) |
mm |
2800×1900×2300 |
|
|
