Product Description :

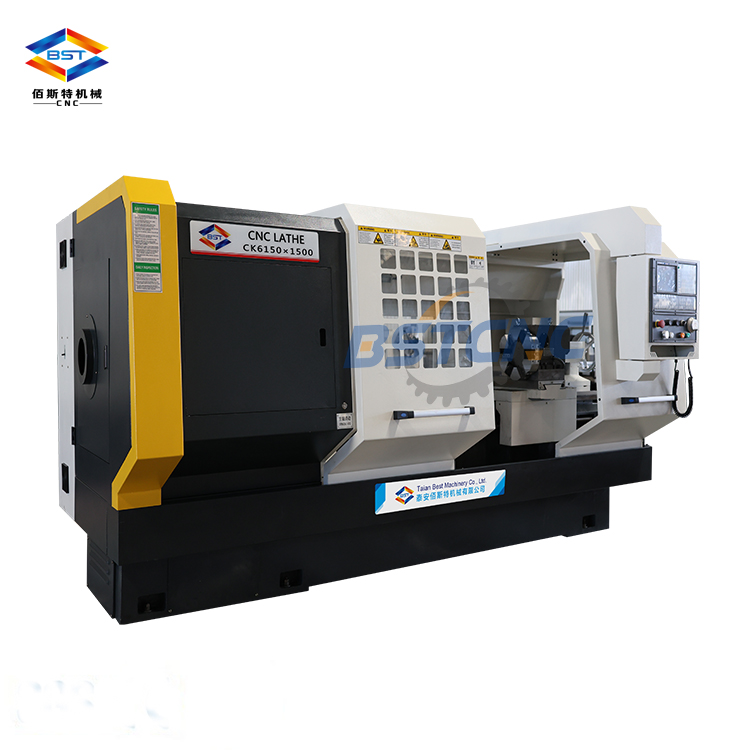

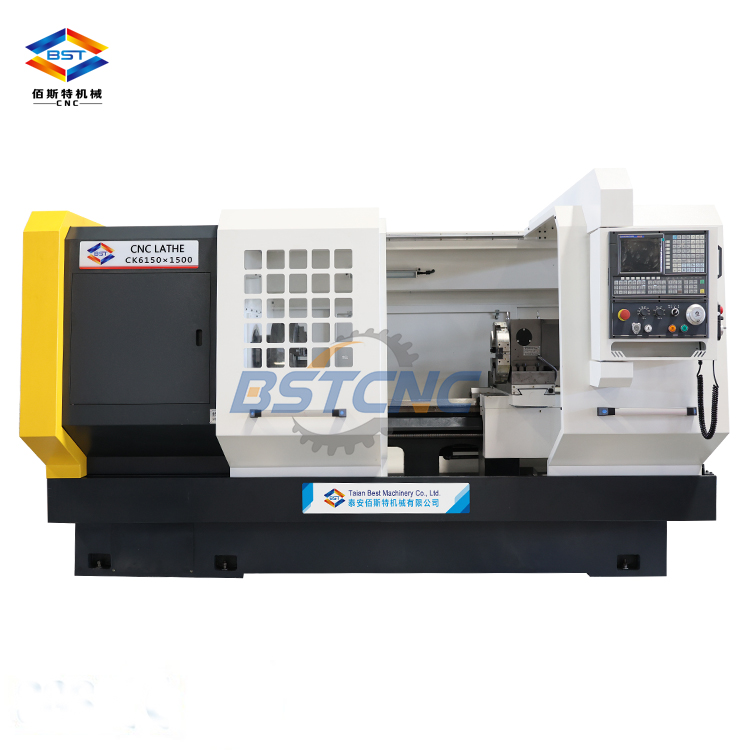

CDK6150 series CNC lathe， it is a device designed, developed and produced specifically for some lightweight large-diameter workpieces, with large spindle holes and high cost-effectiveness， high stability , high rigidity and high accuracy .
Standard Configuration :
-GSK980TB3

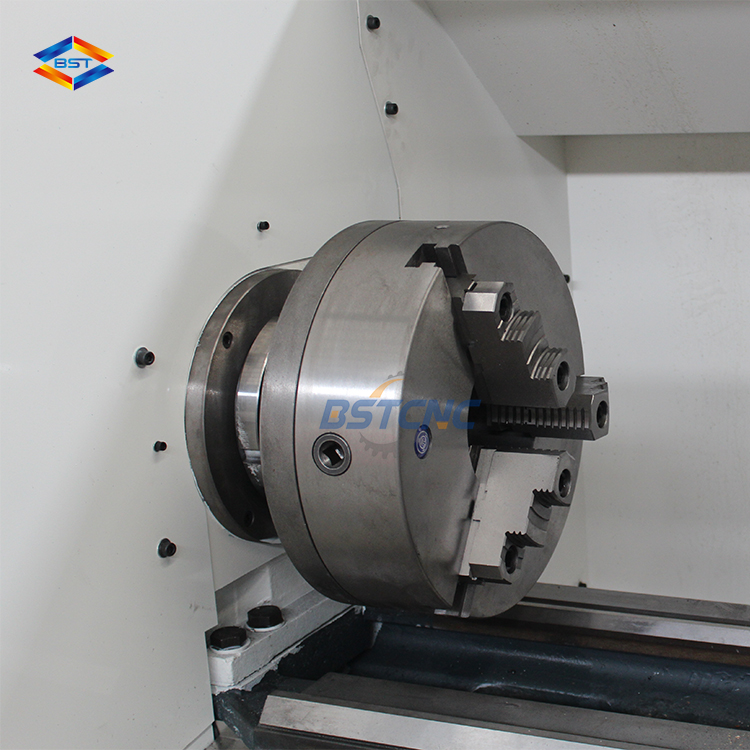

-3 jaws manual chuck
-4 station electric turret
-Manual tailstock
|
Item |
Unit |
CDK6150 (φ110) |
CDK6150 (φ140) |
CDK6150 (φ160) |
|||
|
Max dia.swing over bed |
mm |
500 |
|||||
|
Max dia.swing over cross slide |
mm |
270 |
|||||
|
Max.length of work-piece |
mm |
1000/1500/2000/3000 |
|||||
|
Width of bed |
mm |
400 |
|||||
|
Spindle bore |
mm |
110 |
140 |
160 |
|||
|
Power of spindle motor |
Kw |
7.5 |
|||||
|
Mode of spindle speed |
|
Three step variable speed |
|||||
|
Range of spindle speed |
r/min |
Ⅰ:70-280/Ⅱ:120-430/Ⅲ:210-800 |
|||||
|
Max.traverse of X/Z |
mm |
X:310 Z:800/1300/1800/2800
|
|||||
|
X/Z rapid traverse |
mm/min |
4000 |
|||||
|
X-axis motor
|
Speed |
r/min |
1500 |
||||
|
Torgue |
N.m |
6 |
|||||
|
Power |
Kw |
1.5 |
|||||
|
Z-axis motor |
Speed |
r/min |
1500 |
||||
|
Torgue |
N.m |
10 |
|||||
|
Power |
Kw |
1.5 |
|||||
|

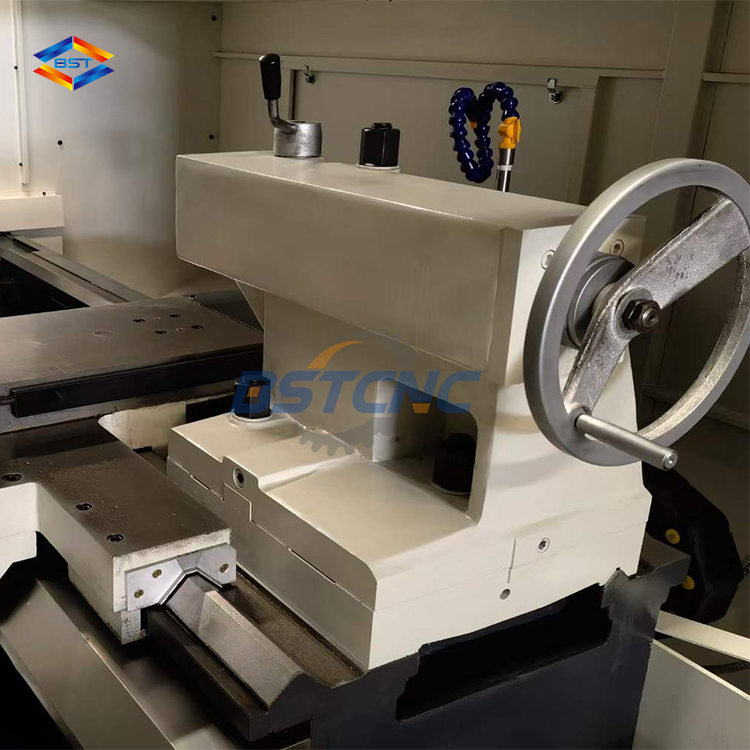

Tailstock quill |
Diameter |
mm |
75 |
||||
|
Travel |
mm |
150 |
|||||
|
Taper |
|
Morse NO.5 |
|||||
|

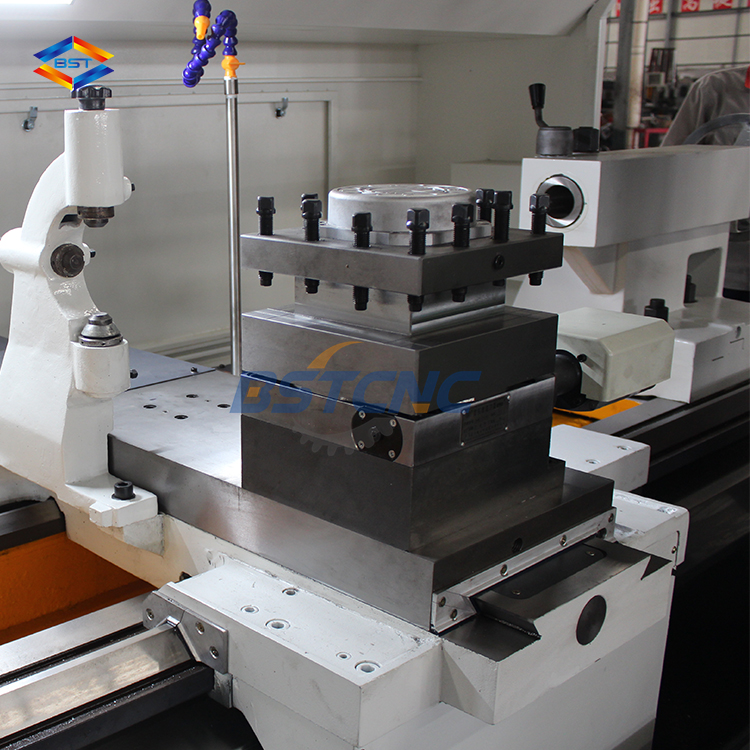

Electric tool-post |
Model |
|
HAK21192 |
||||
|
stations |
|
Vertical four-station |
|||||
|
Dimension |
mm |
192 × 192 |
|||||
|
Tool change time |
S |
2.6 |
|||||
|
Chuck |
|
K11-320-3 jaws chuck |
K11-380-3 jaws chuck |
K11-400-3 jaws chuck |
|||
|
Positioning accuracy |
mm |
X:0.020/Z:0.03 |
|||||
|
Repositioning accuracy |
mm |
X:0.012/Z:0.016 |
|||||
|
Overall dimensions(L*W*H) |
mm |
2700 × 1500 × 1700 |
|||||
|
Machine weight |
T |
2.5 |
2.7 |
2.9 |
|||
