Product Description :

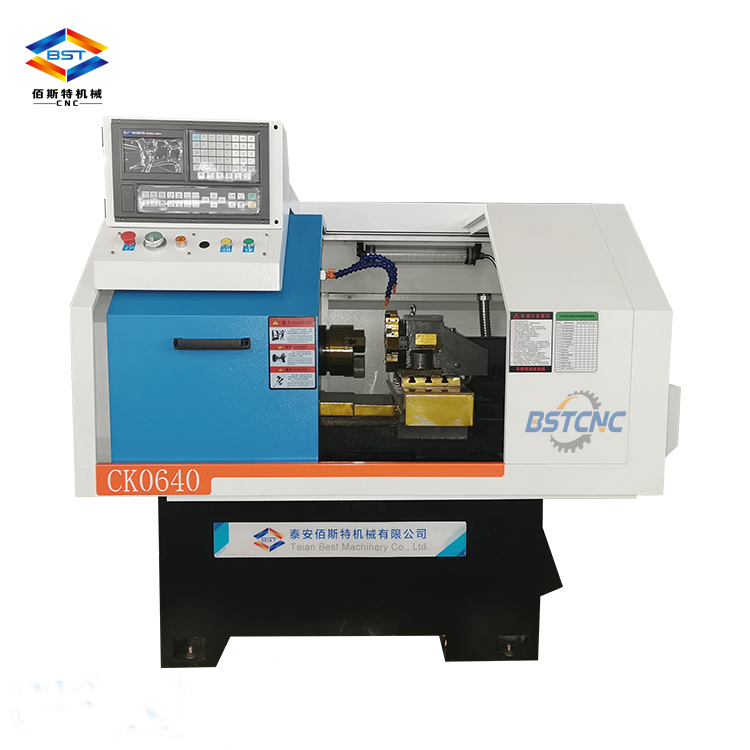

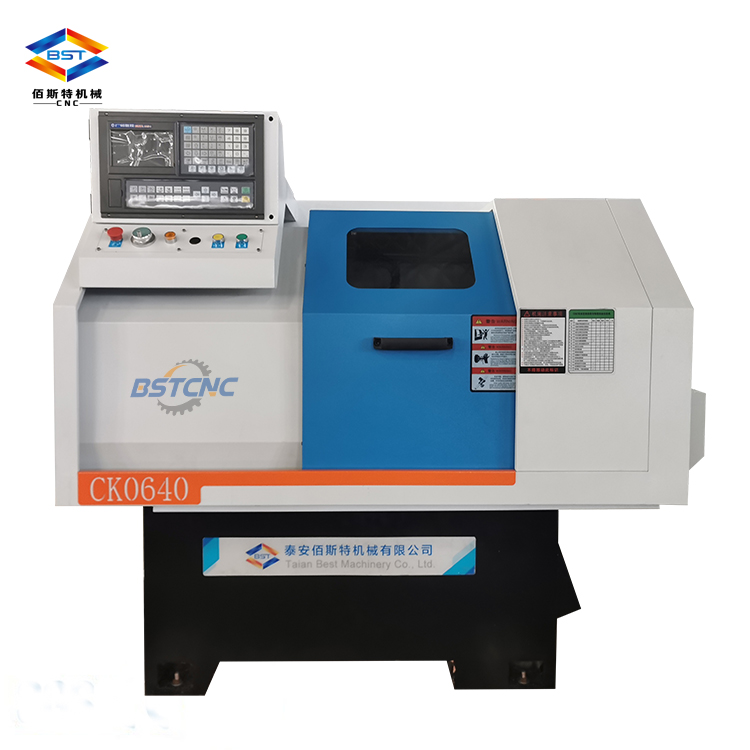

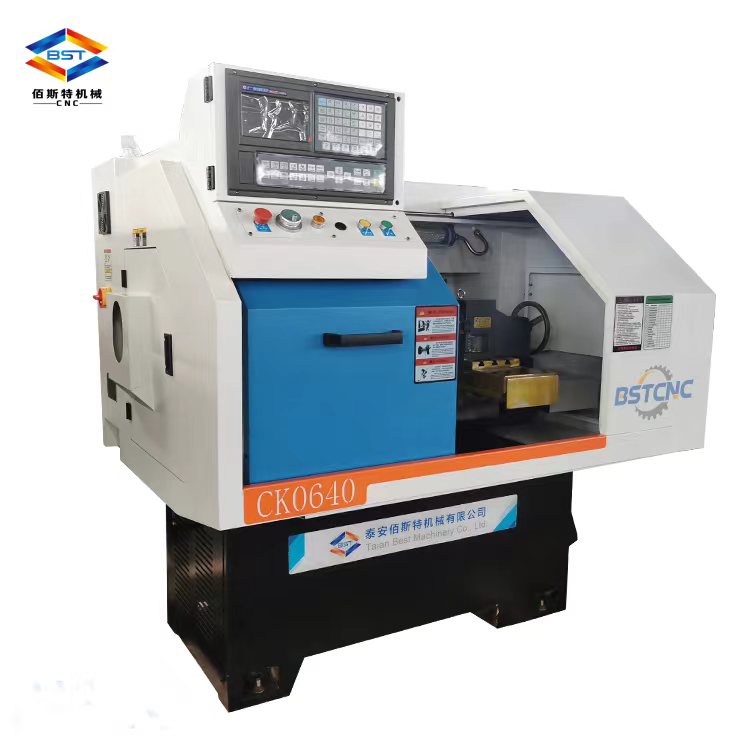

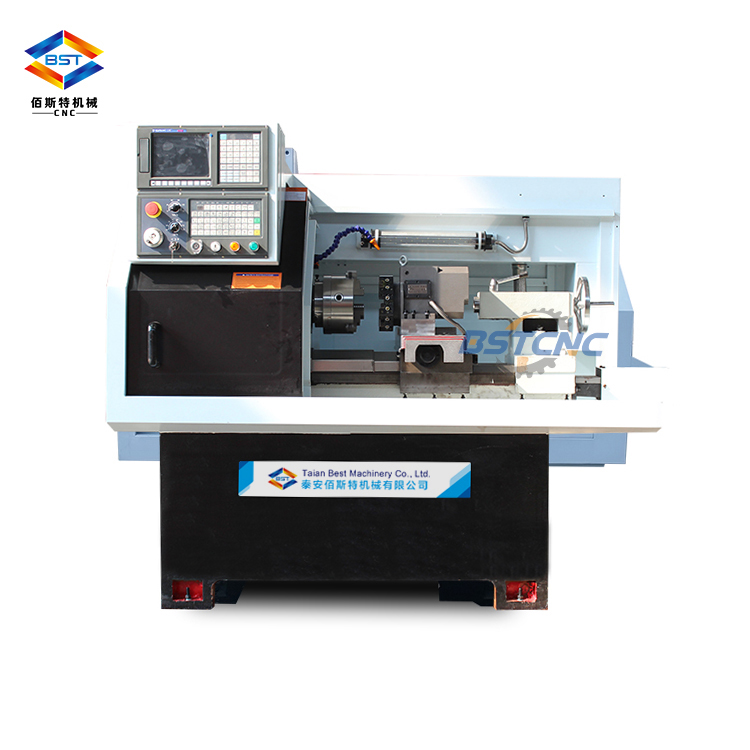

Small cnc lathe machine for auto parts processing CK0640 uses the design of mechanical and electrical integration,generous appearance beautiful,reasonable structure,easy operation. It can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.
Standard Configuration :
-GSK928 control system
-Pneumatic collet
-Gang type tool post
-Manual tailstock
|
Items |
CK0640 |
|
Spindle bore |
Φ42mm |
|
Max. swing over bed |
Φ250mm |
|
Max. swing over carriage |
φ130mm |
|
Max length of processing |
200mm |
|
X- axis max motion traveling schedule |
chuck 120mm/collet 200mm |
|
X-axis fast moving speed |
6000mm/min |
|
Z- axis fast moving speed |
8000 mm/min |
|
X-axis feed rates |
1~2000mm/min |
|
Z- axis feed rates |
1~1800mm/min |
|
Range of spindle speed |
50~2500rpm |
|
Thread machining scope (metric system) |
0.25~12mm |
|
Thread machining scope (British system) |
28~3 1/2 |
|
Turret type |
Gang type tool post |
|
Power of the main drive motor |
3KW |
|
Overall dimensions(L×W×H) |
1600×1000×1550 |
|
Net weight |
950 kg |
