Product Description :

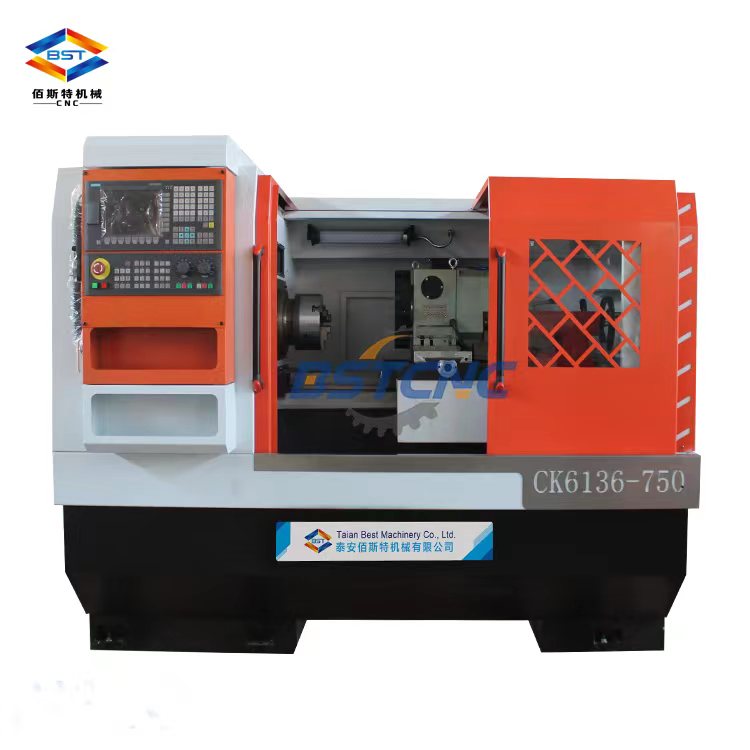

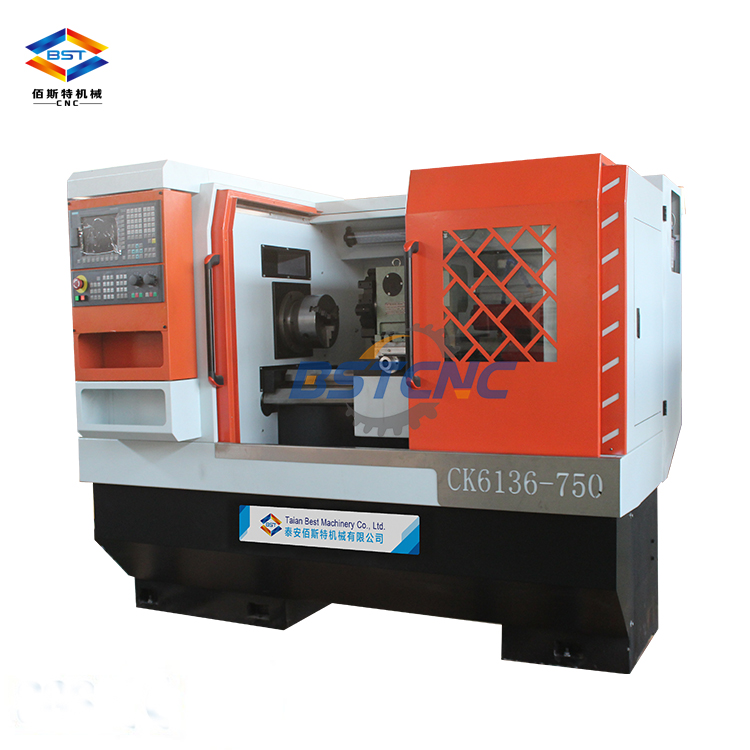

CK6136 series CNC horizontal lathe machine has the features of high precision ,large power,high rigidity and etc.The main parts and structure all passed optimal design . It is a best choice for turning axle,disk type,sleeve,special plate and screw arbor workpiece .Before the machine leave factory have to pass strict inspection. Every machine all test the positioning accuracy and repeatability accuracy of X axis and Z axis by laser interferometer to ensure machine's precision and reliability.
Standard Configuration :
-GSK928

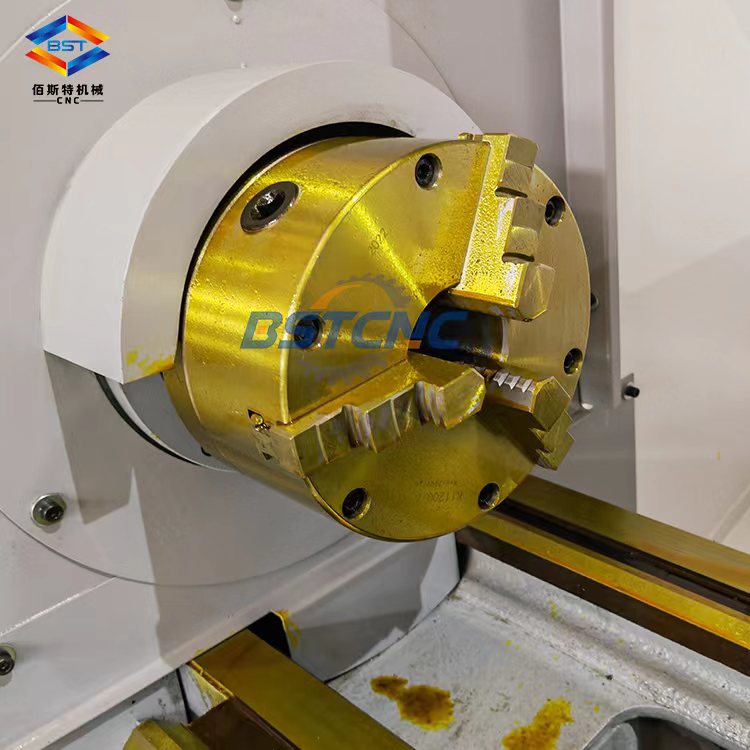

-3 jaws manual chuck

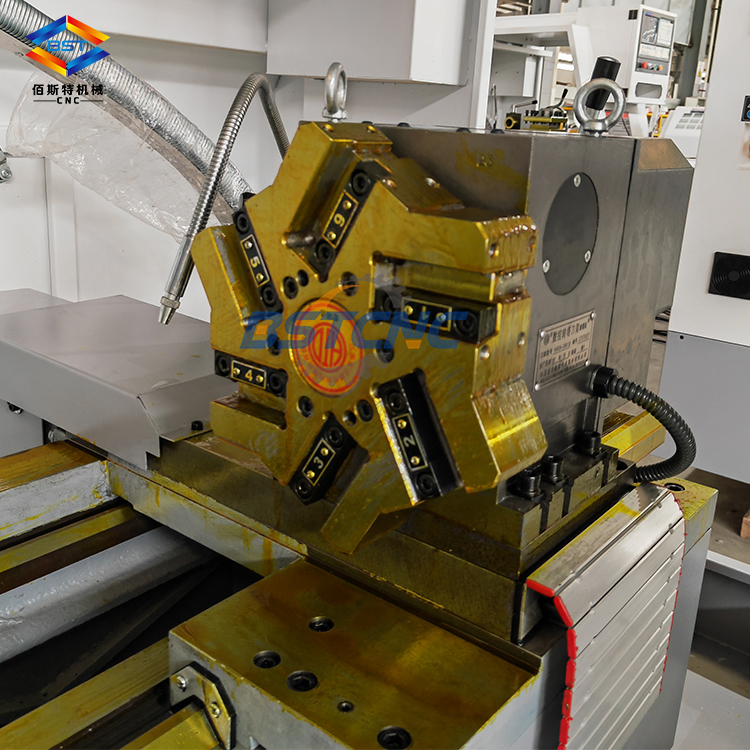

-4 station electric turret
-Manual tailstock
|
Item |
CK6136 |
|
Max. swing dia. over bed |
Φ360mm |
|
Max. swing dia. over cross slide |
Φ190mm |
|
Processing length |
750/1000mm |
|
Dia. of spindle |
Φ60mm |
|
Spindle taper |
MT6 |
|
Spindle speed mode |
Independent spindle |
|
Tool holder |
4 station |
|
Tool bar section |
20X20mm |
|
Main motor power |
5.5KW |
|
Travel of X/Z AXIS |
X: 260 Z: 750 |
|
X/Z axis position accuracy |
0.02/0.025mm |
|
X/Z axis repeatability |
0.01/0.012mm |
|
X/Z axis torque |
4/6N.M |
|
X/Z axis fast feeding speed |
6/8 M/MIN |
|
Tailstock sleeve travel |
120mm |
|
Tailstock taper |
MT4 |
|
Dimension |
2120x1500x1700mm |
|
weight |
1800KG |
