Product Description :

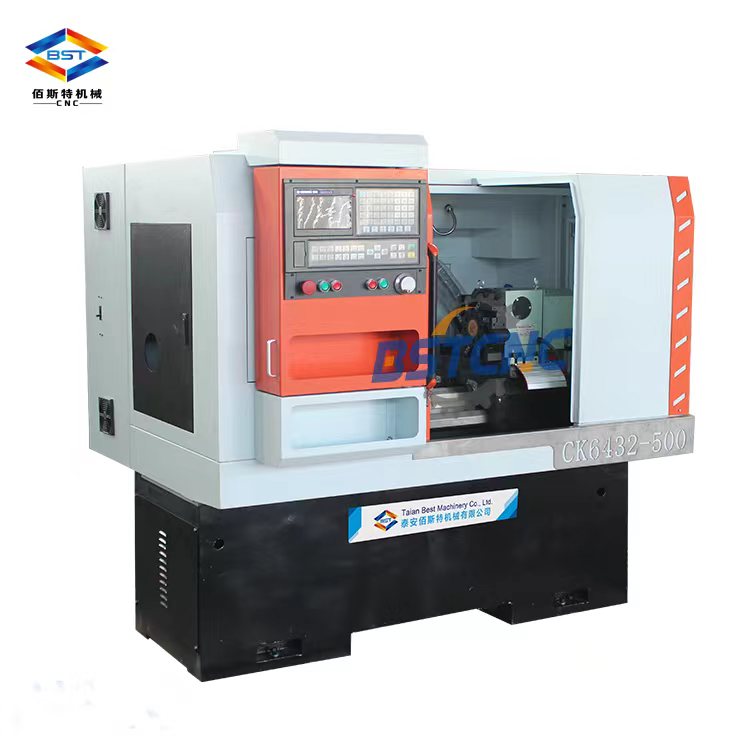

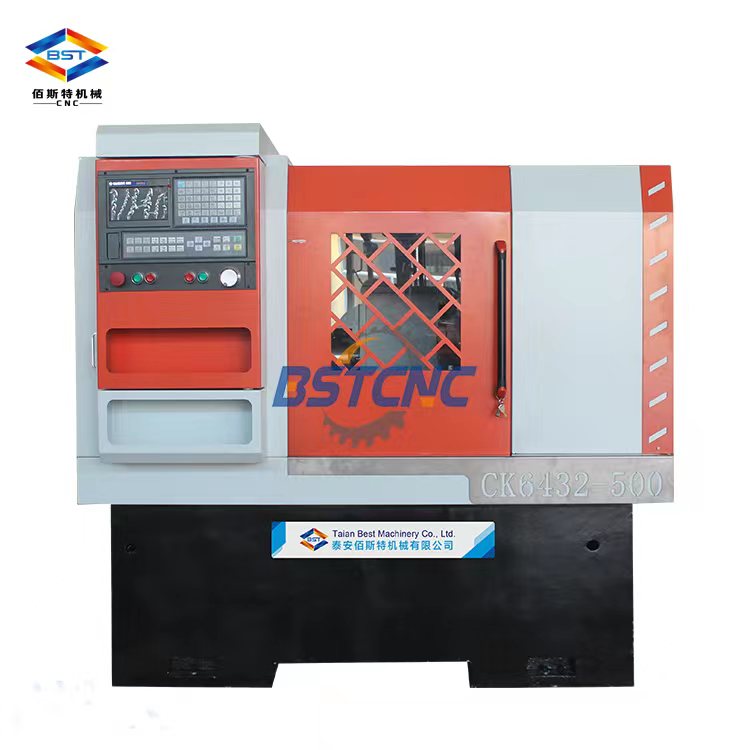

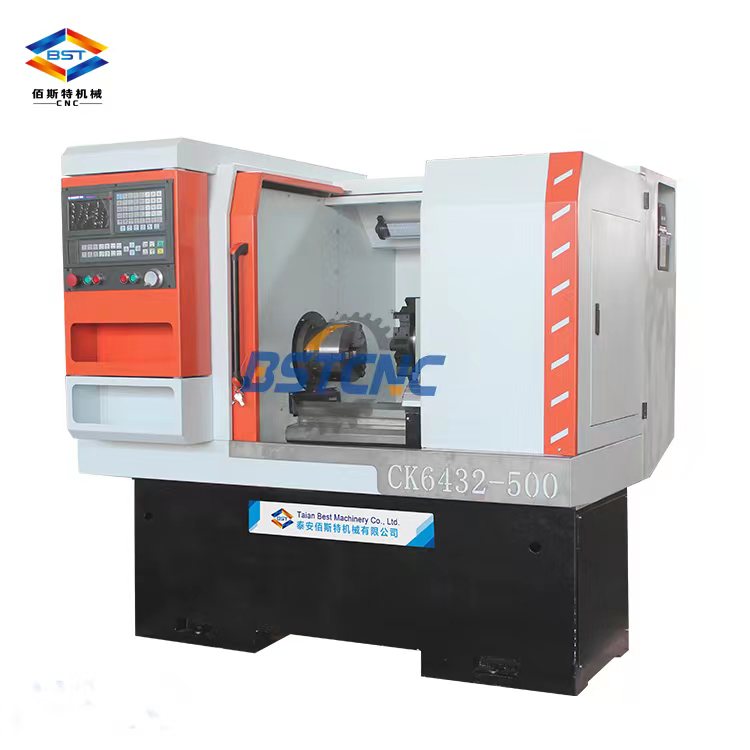

CK6432 series CNC horizontal lathe machine has the features of high precision ,large power,high rigidity and etc.The main parts and structure all passed optimal design . It is a best choice for turning axle,disk type,sleeve,special plate and screw arbor workpiece .Before the machine leave factory have to pass strict inspection. Every machine all test the positioning accuracy and repeatability accuracy of X axis and Z axis by laser interferometer to ensure machine's precision and reliability.
Standard Configuration :
-GSK928

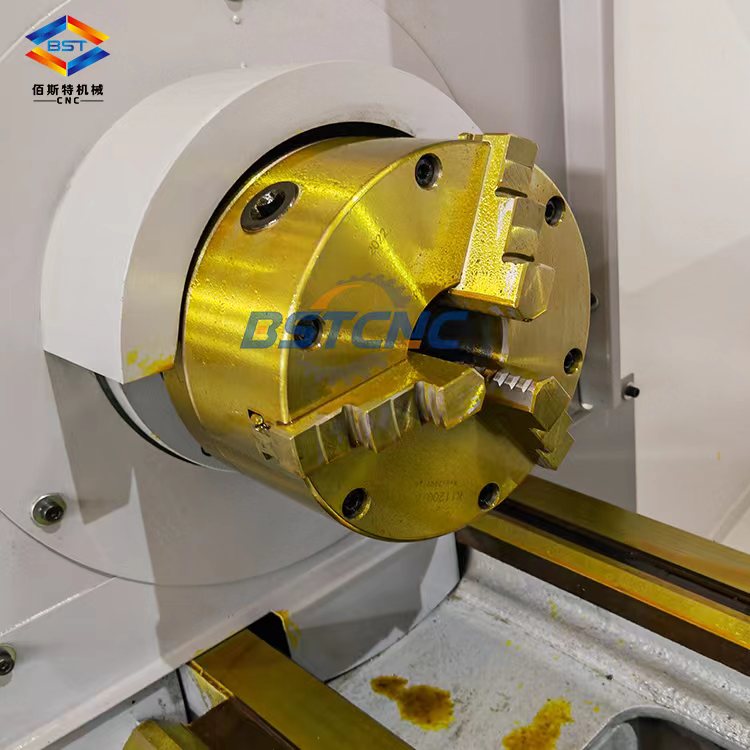

-3 jaws manual chuck
-4 station electric tool post
-Manual tailstock
|
Item |
CK6432 |
|
Max. swing dia. over bed |
Φ360mm |
|
Max. swing dia. over cross slide |
Φ150mm |
|
Max. workpiece length |
500mm |
|
Diameter of spindle bore |
60mm |
|
Spindle taper |
A2-6 |
|
Spindle speed |
150~2500rpm |
|
Chuck size |
200mm |
|
Tool holder |
Vertical |
|
Main motor power |
4 kw |
|
X/Z axis position accuracy |
0.02/0.025mm |
|
X/Z axis repeatability |
0.01/0.012mm |
|
X/Z axis torque |
4/4N.m |
|
X/Z axis fast feeding speed |
8/10M/MIN |
|
Tailstock sleeve travel |
100mm |
|
Tailstock taper |
MT4 |
|
Dimension |
1700x1400x1700mm |
|
Weight |
1500KG |
