Product Description :
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Standard configuration:
Items |

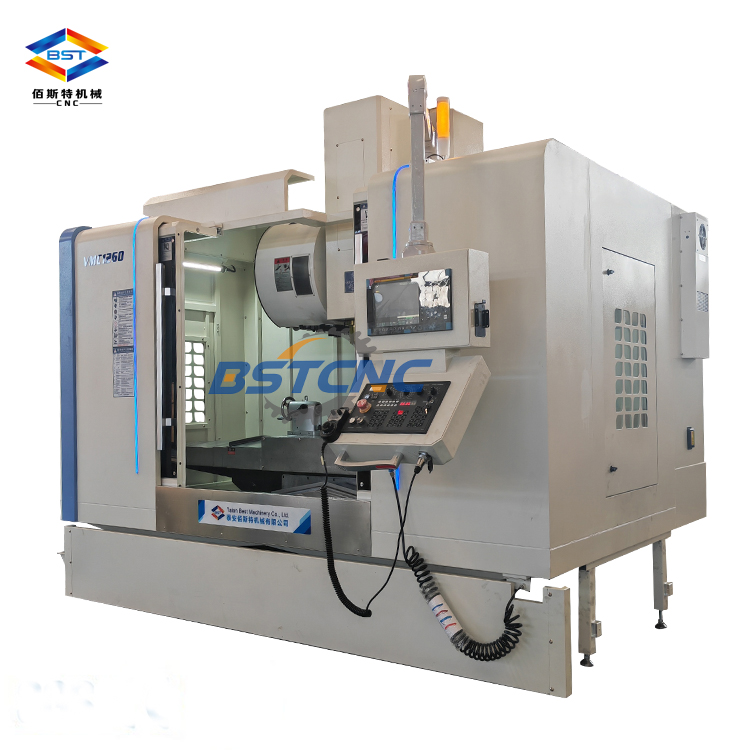

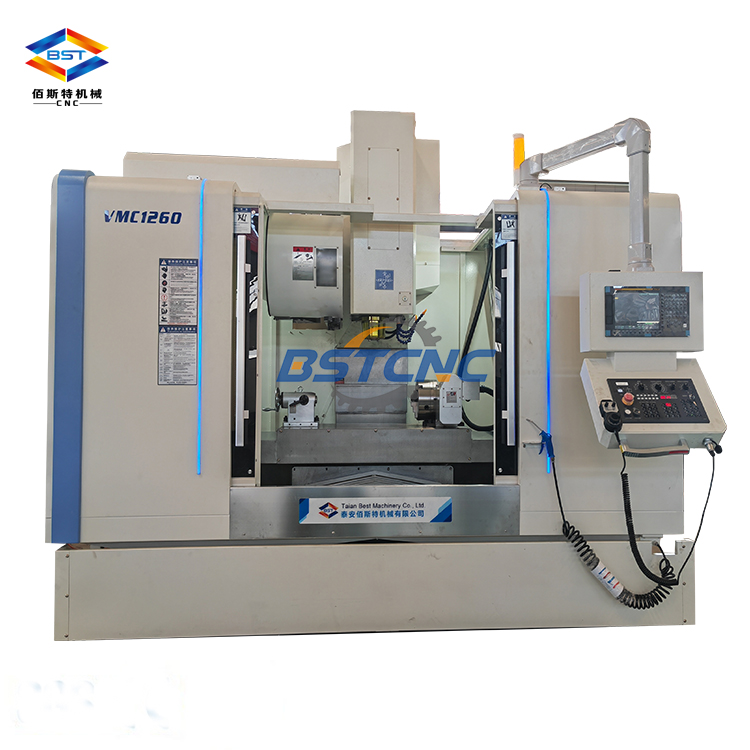

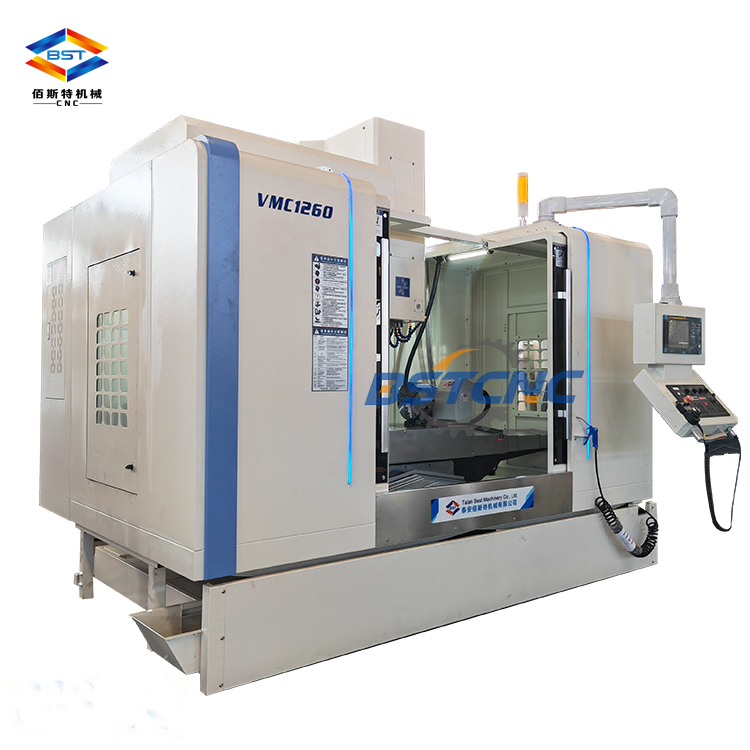

VMC1260 CNC MACHINING CENTER |
|
Travel |
X axis |
1200mm |
Y axis |
600mm |
|
Z axis |
600mm |
|
Spindle nose to table |
100-700mm |
|
Spindle nose to column |
667mm |
|
Feed |
max X rapid feed |
24m/min |
max Y rapid feed |
24m/min |
|
max Z rapid feed |
24m/min |
|
Cutting feed |
1-10000mm/min |
|
Torque |
X:18N.m Y:18N.m Z:22N.m |
|
Table |
Table size |
1200×600mm |
Max load |
700Kg |
|
T slot |
5×18×100mm |
|
Spindle |
Type |
Belt |
Speed |
8000rpm |
|
Spindle taper |
BT40-150 |
|
Main motor |
11KW/15KW |
|
Accuracy |
Accuracy (JIS) |
±0.005/300mm |
Repeatability (JIS) |
±0.0075mm |
|
Other |
Weight |
6500 Kgs |
Machine Size |
3400×2350×2600 |
