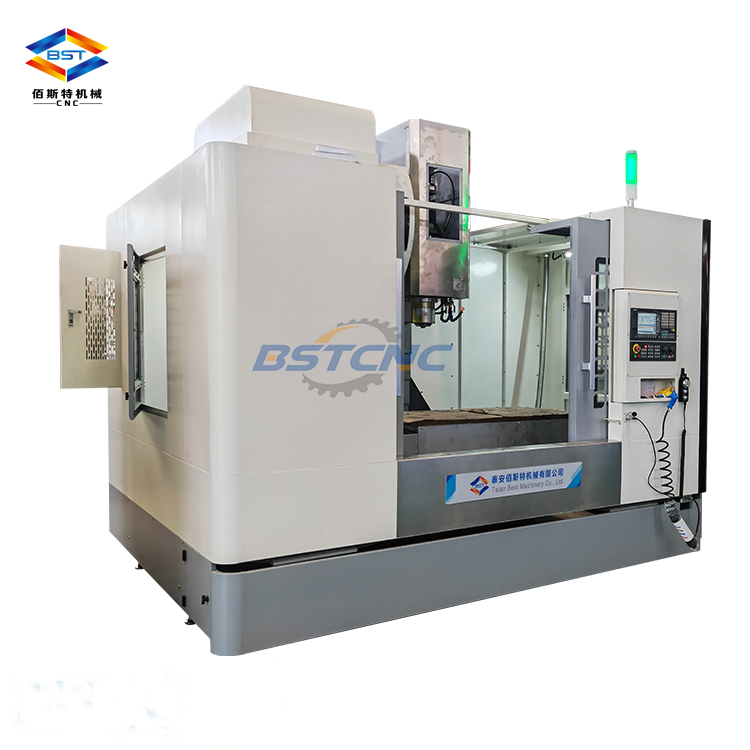

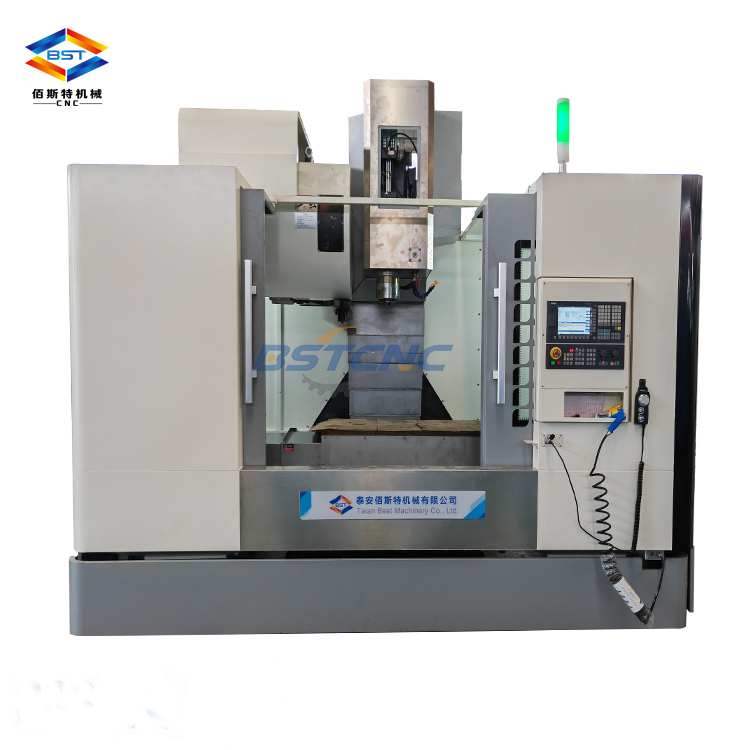

VMC1370 CNC Machining Center
VMC1370 CNC Machining Center VMC1370 CNC Machining Center VMC1370 CNC Machining Center VMC1370 CNC Machining Center VMC1370 CNC Machining Center

VMC1370 CNC Machining Center

Product Description :
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Standard configuration:

  • -GSK Control system;
  • -Taiwan BT40-150-8000RPM spindle;
  • -Taiwan Funnel Type Tool Changer;
  • -Taiwan Hiwin linear guideways and ball screw;
  • -Three color alarm Lamp;
  • -Automatic Central Lubrication System and Cooling system;
  • - Full Enclosure Machine Guard;
Product Parameter

  Items

VMC1370 CNC MACHINING CENTER

Travel

X axis

1300mm

Y axis

700mm

Z axis

700mm

Spindle nose to table

130-830mm

Spindle nose to column

767mm

Feed

 max  X rapid feed

24m36/min

 max  Y rapid feed

24m36/min

max  Z rapid feed

24m36/min

Cutting feed

1-10000mm/min

Torque

X:23N.m  Y:23N.m  Z:28N.m

Table

Table size

1300×700mm

Max load

800Kg

T slot

5×18×115mm

Spindle

Type

Belt

Speed

8000rpm

Spindle taper

BT40-150

Main motor

11KW/15KW

Accuracy

Accuracy JIS

±0.005/300mm

Repeatability  JIS

±0.003mm

Other

Weight

8000 Kgs

Machine Size

3450×2800×2850
