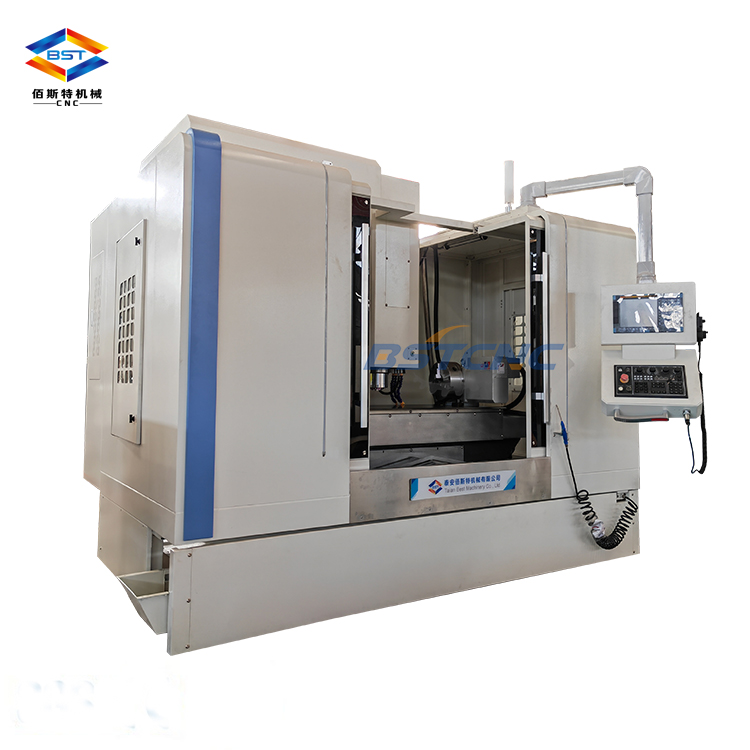

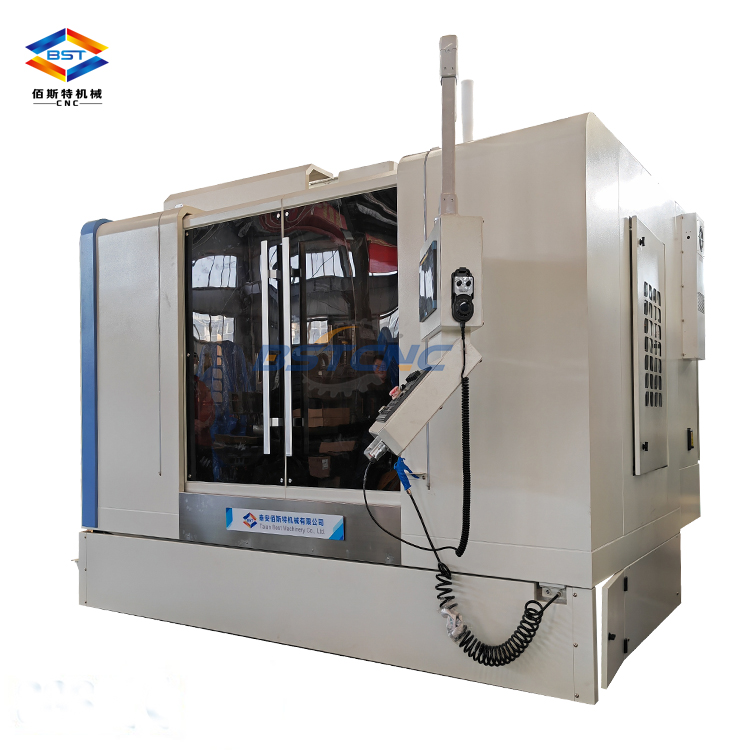

VMC1060 CNC Machining Center
VMC1060 CNC Machining Center VMC1060 CNC Machining Center VMC1060 CNC Machining Center VMC1060 CNC Machining Center VMC1060 CNC Machining Center

VMC1060 CNC Machining Center

Product Description :
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Standard configuration:

  • -GSK Control system;
  • -Taiwan BT40-150-8000RPM spindle;

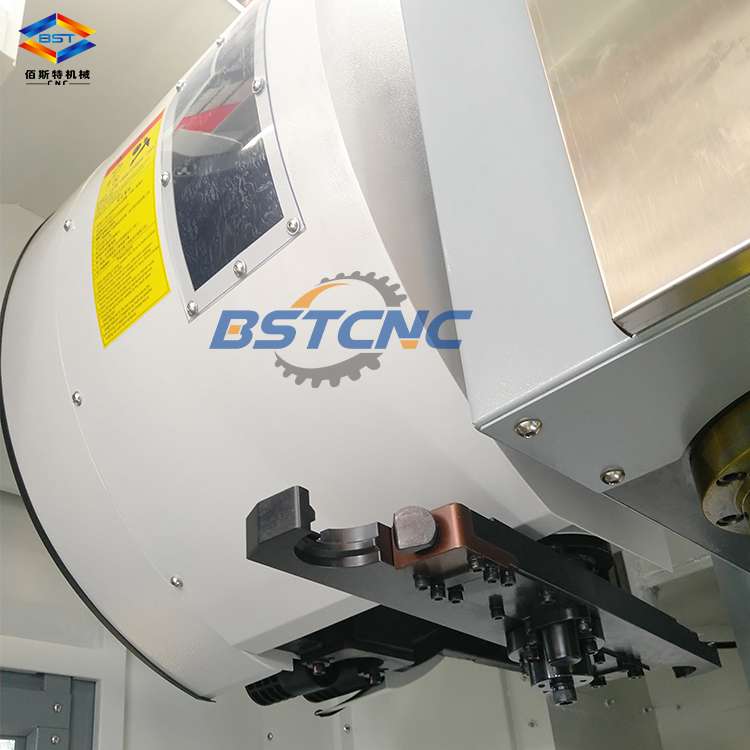

  • -Taiwan Funnel Type Tool Changer;
  • -Taiwan Hiwin linear guideways and ball screw;
  • -Three color alarm Lamp;
  • -Automatic Central Lubrication System and Cooling system;
  • - Full Enclosure Machine Guard;
Product Parameter

 Items

VMC1060 CNC MACHINING CENTER

Travel

X axis

1000mm

Y axis

600mm

Z axis

600mm

Spindle nose to table distance

150-750mm

Spindle nose to column

600mm

Feed

 max  X rapid feed

24m/min

 max  Y rapid feed

24m/min

max  Z rapid feed

24m/min

Cutting feed

1-10000mm/min

Torque

X:18N.m  Y:18 N.m  Z:22N.m

Table

Table size

1200×600mm

Max load

800Kg

T slot

5×18×100mm

Spindle

Type

Direct type

Speed

8000 rpm

Spindle taper

BT40/150

Main motor

11/15KW

Accuracy

Accuracy JIS

±0.015/300mm

Repeatability  JIS

±0.0075mm

Other

Weight

6200 Kgs

Machine Size

3100×2300×2400



Package size

3200x2400x2500
