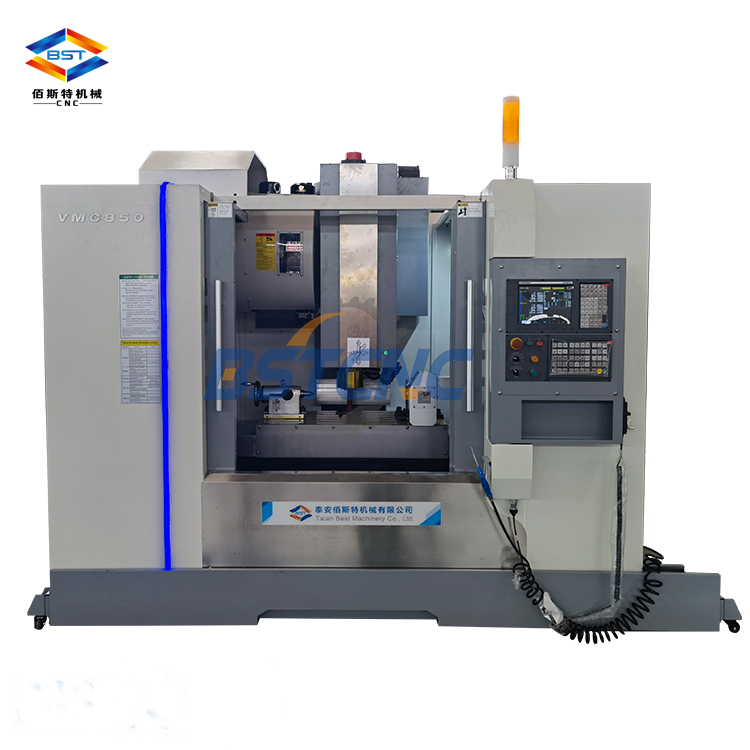

VMC850 CNC Machining Center
VMC850 CNC Machining Center VMC850 CNC Machining Center VMC850 CNC Machining Center VMC850 CNC Machining Center VMC850 CNC Machining Center

VMC850 CNC Machining Center

Product Description :
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Standard configuration:

  • -GSK Control system;

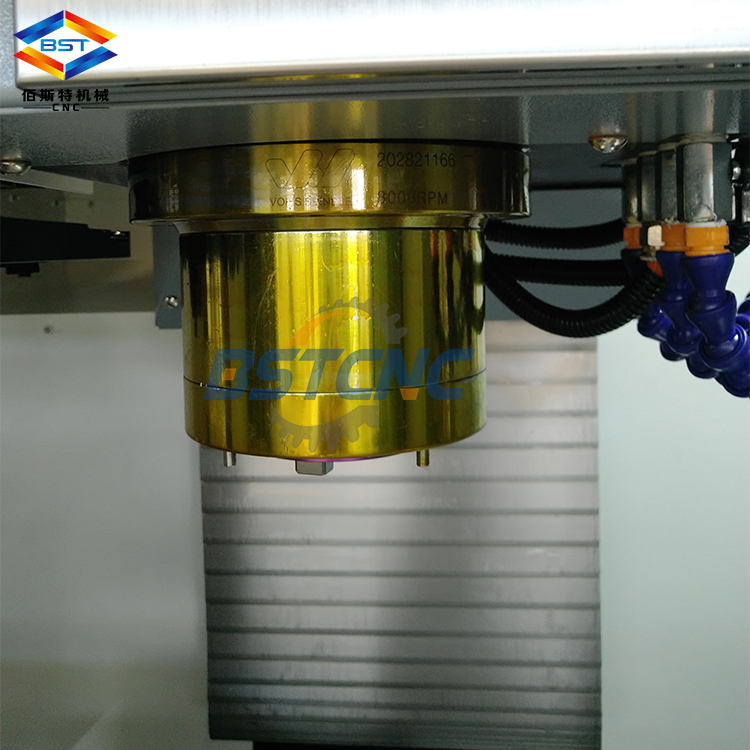

  • -Taiwan BT40-150-8000RPM spindle;

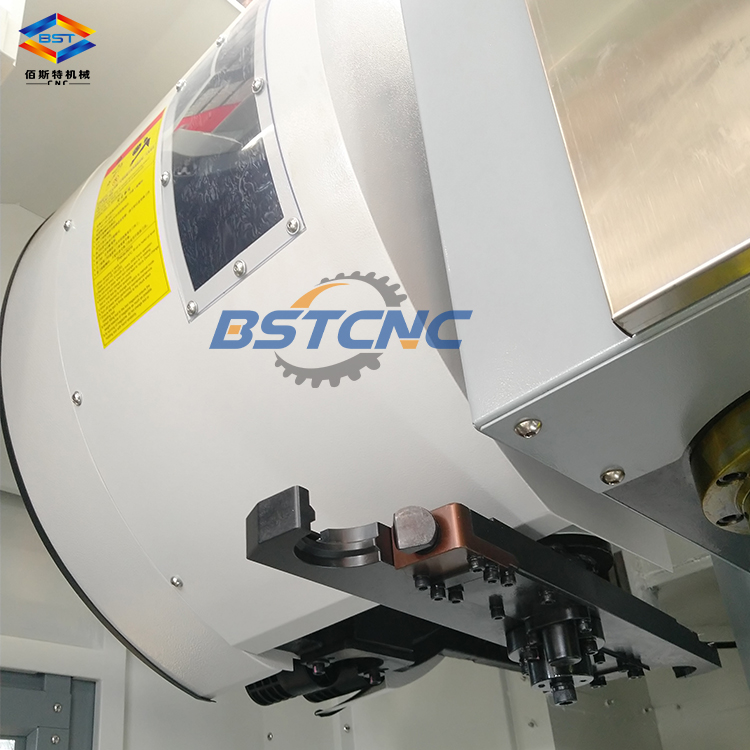

  • -Taiwan Funnel Type Tool Changer;
  • -Taiwan Hiwin linear guideways and ball screw;
  • -Three color alarm Lamp;
  • -Automatic Central Lubrication System and Cooling system;
  • - Full Enclosure Machine Guard;
Product Parameter

 Items

VMC850 CNC Machining Center

Travel

X axis

800mm

Y axis

500mm

Z axis

500mm

Spindle nose to table

120-620mm

Spindle nose to column

550mm

Feed

 max  X rapid feed

24 m/min

 max  Y rapid feed

24 m/min

max  Z rapid feed

15 m/min

Cutting feed

1-10000mm/min

Torque

X:10N.m  Y:10 N.m  Z:15N.m

Table

Table size

1000×500mm

Max load

500Kg

Table surface to floor

 840 mm

T slot

5×18×90mm

Spindle

Type

Belt

Speed

8000 rpm

Spindle taper

BT40

Main motor

7.5KW/11KW

Accuracy

Accuracy (JIS)

±0.015/300mm

Repeatability  (JIS)

±0.0075mm

Other

Weight

5200 Kgs

Size

2650×2300×2450
