Product Description :

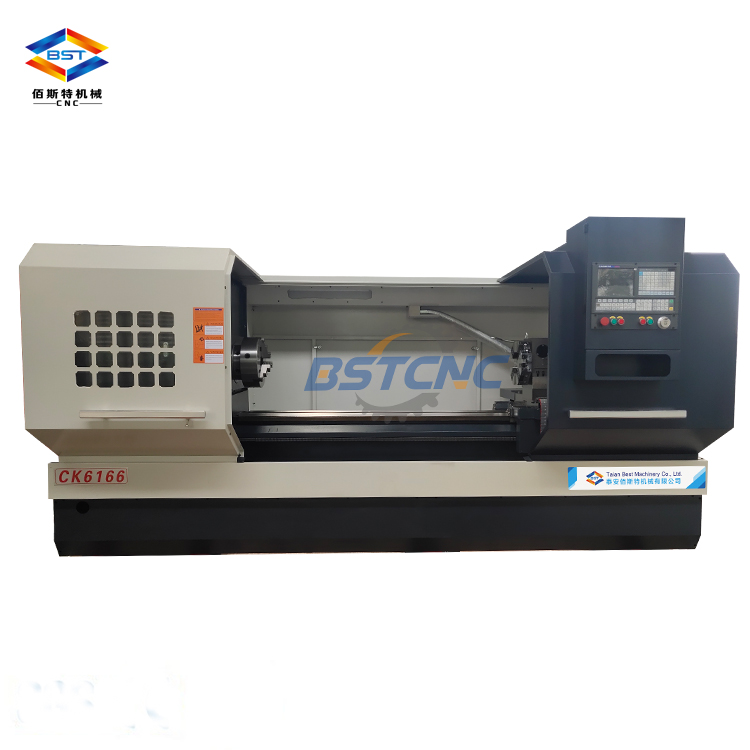

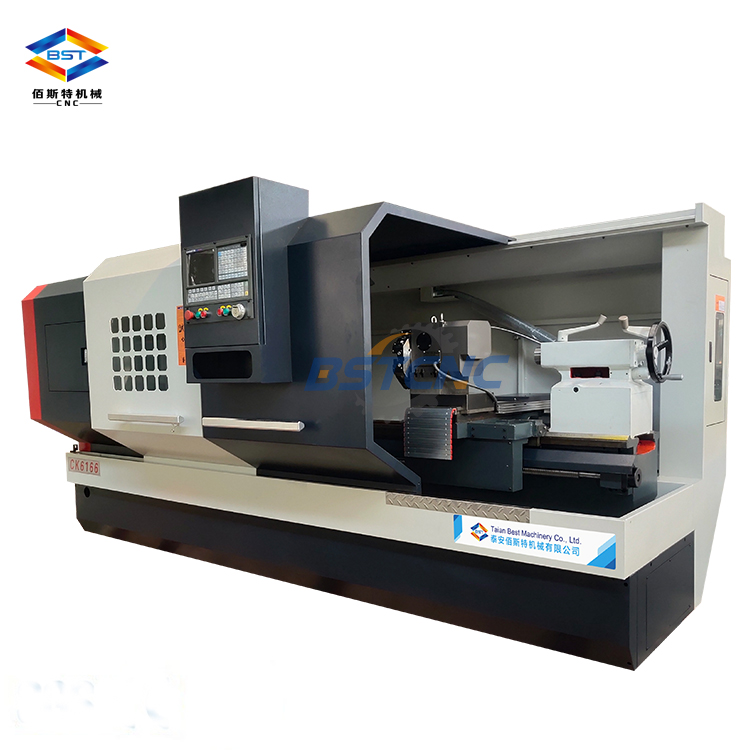

CK6166 series CNC Lathe Machine is an economical,practical type machine tools with good quality .The machine has a very wide use which is suitable for internal and external turning ,tapering,circular arc,thread,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining .You can choose the CNC system and optional accessories according to your requirements.
Standard Configuration :
-GSK980TB3

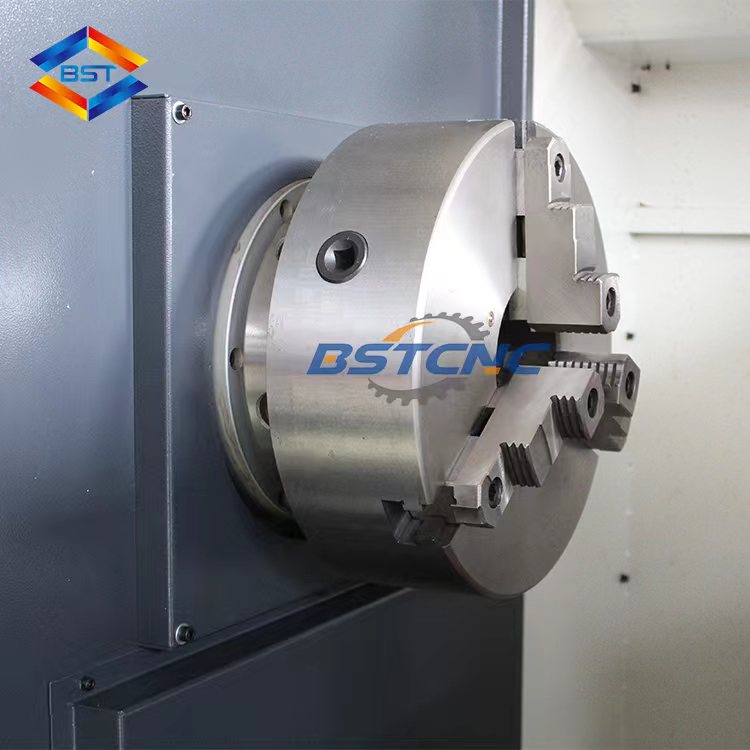

-3 jaws manual chuck

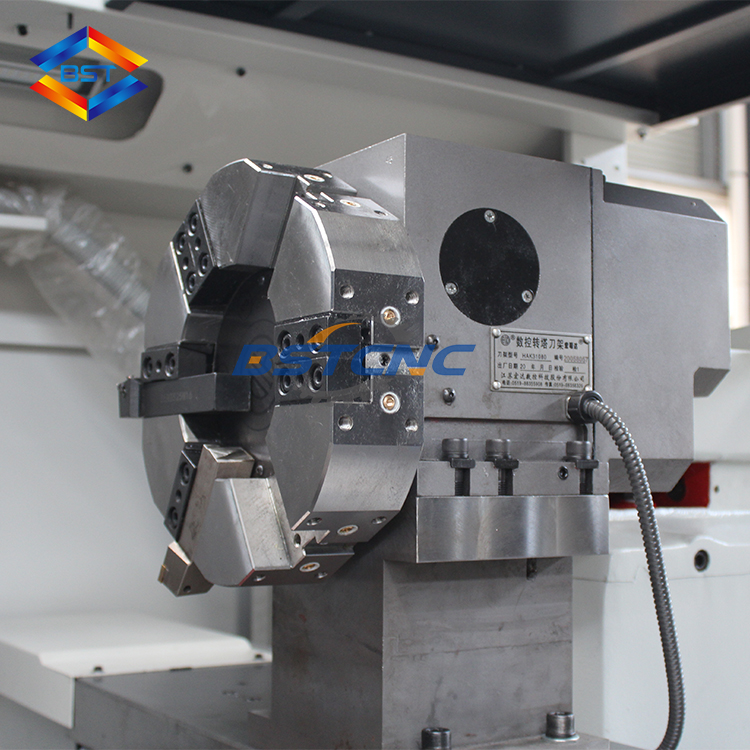

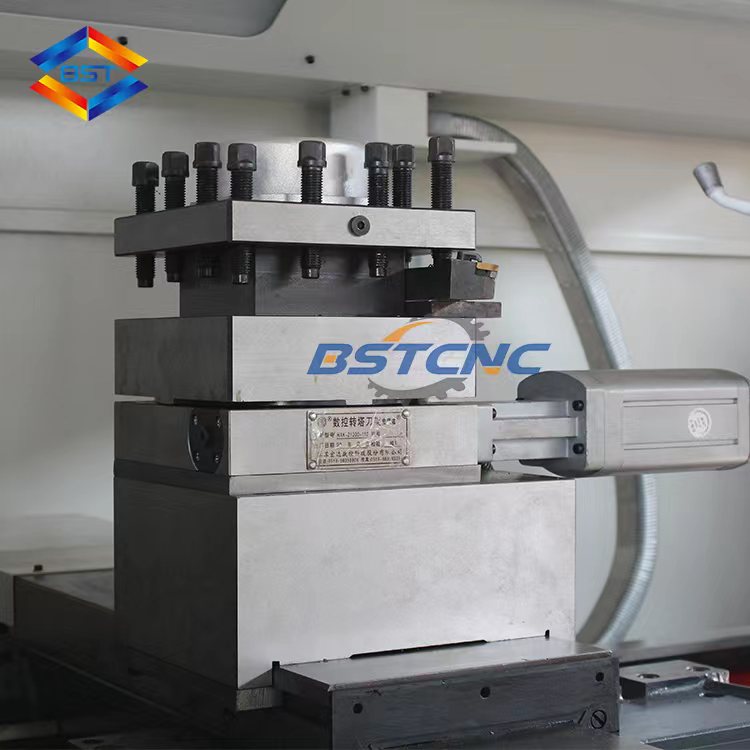

-4 station electric turret
-Manual tailstock
|
Specifications |
CK6166 |
|
Max.Swing over bed |
660mm |
|
Max.swing dia. over cross slide |
435mm |
|
Max.workpiece length |
750/1000/1500/2000/3000mm |
|
Spindle taper |
Morse NO.6(MT6) [φ90 1:20(B type)] [φ113 1:20(C type)] |
|
Chuck size |
C6[D8 (B TYPE ,C TYPE)] |
|
Spindle bore diameter |
φ52MM, [φ80MM (B TYPE)], [φ105MM(C TYPE)] |
|
Range of spindle speeds(3 steps) |
Independent spindle:100-1600r/min |
|
Tail stock center travel |
150mm |
|
Tail stock sleeve taper |
MT5 |
|
Positioning accuracy |
±0.015mm |
|
Repositioning accuracy |
±0.006mm |
|
X/Z rapid traverse |
4/6m/min |
|
Spindle Motor |
7.5KW |
|
Machine dimensions(LXWXH) |
2550x1550x1900mm |
|
Packing dimensions (LXWXH) |
2650x1650x2000mm |
|
Net weight |
2800KG |
|
Gross weight |
3000KG |
