Product Description :

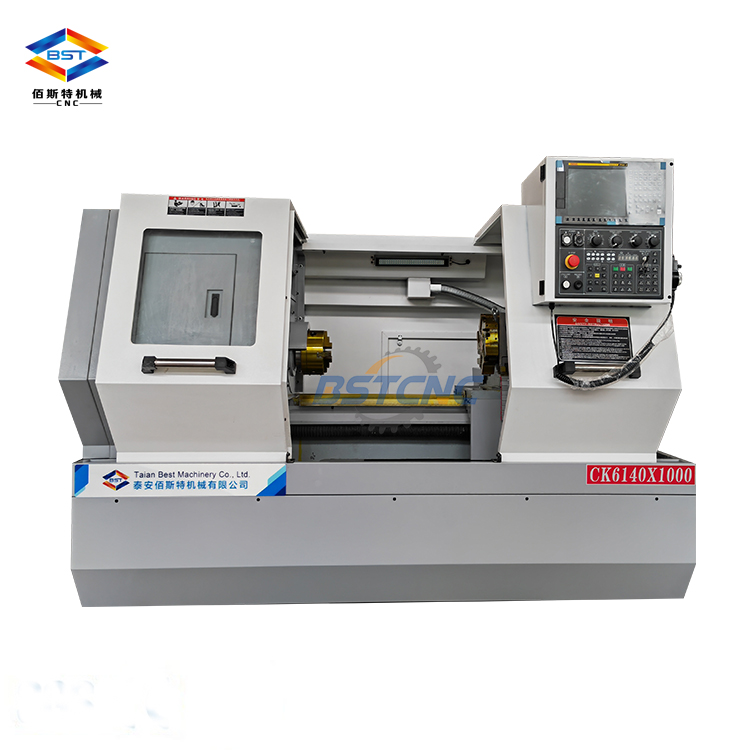

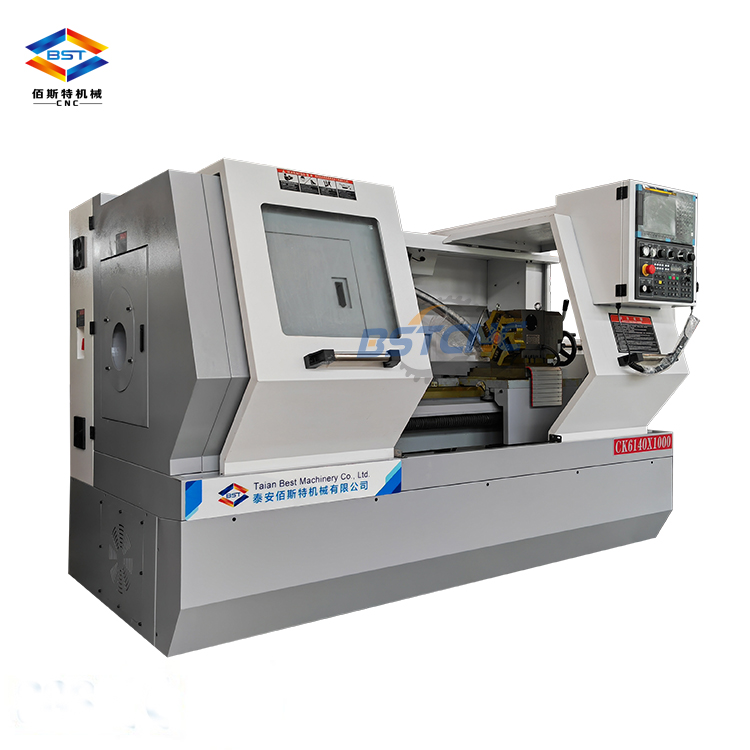

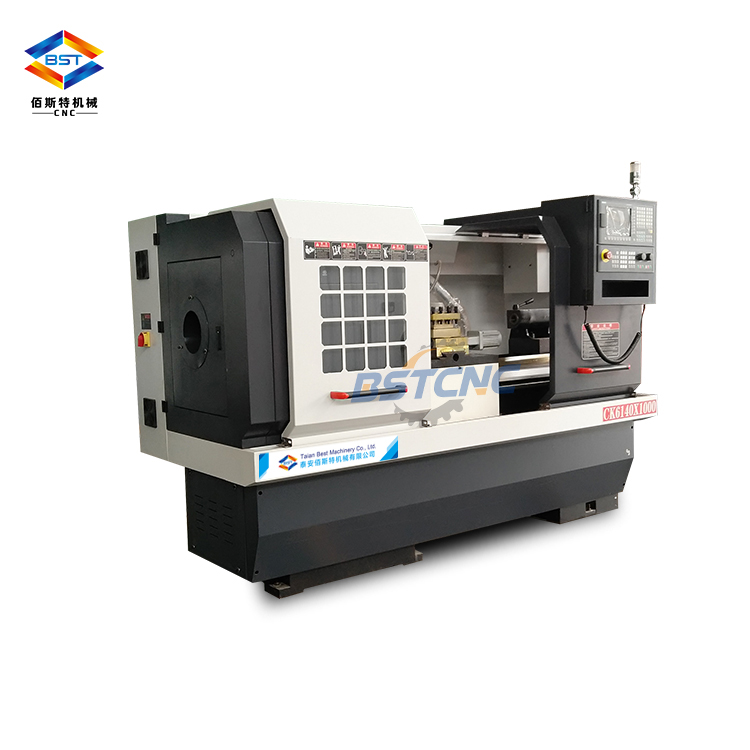

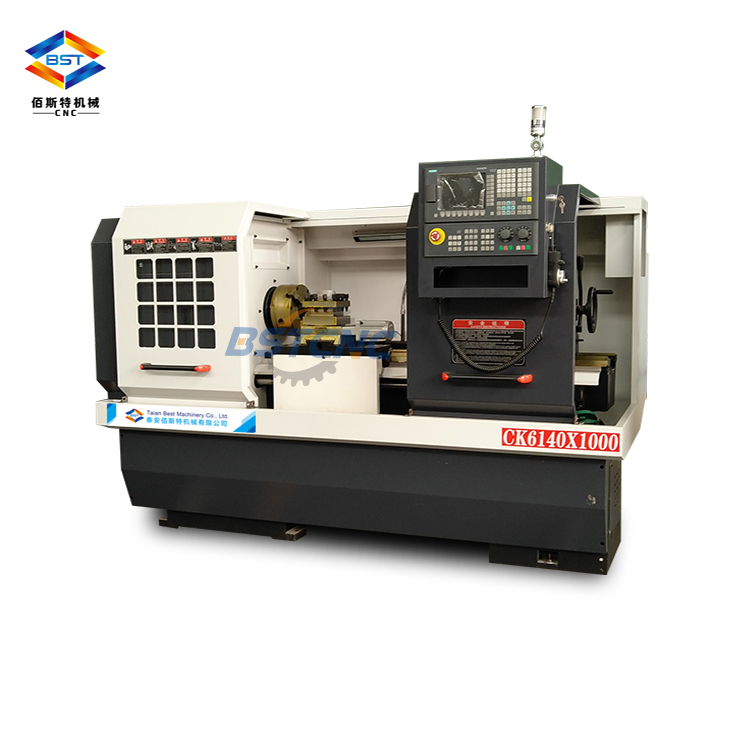

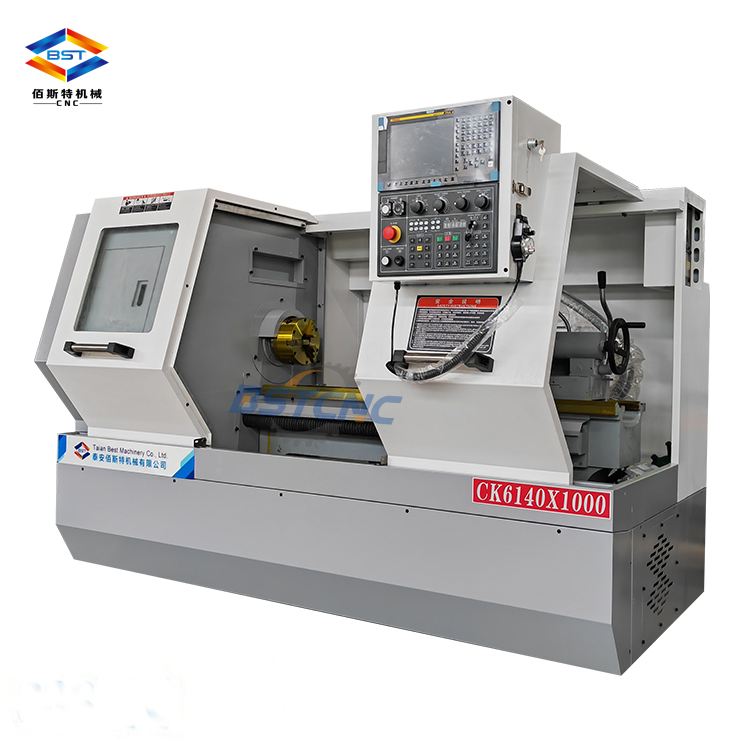

CK6140 series CNC horizontal lathe machine has the features of high precision ,large power,high rigidity and etc.The main parts and structure all passed optimal design . It is a best choice for turning axle,disk type,sleeve,special plate and screw arbor workpiece .Before the machine leave factory have to pass strict inspection. Every machine all test the positioning accuracy and repeatability accuracy of X axis and Z axis by laser interferometer to ensure machine's precision and reliability.
Standard Configuration :
-GSK980TB3
-3 jaws manual chuck
-4 station electric turret
-Manual tailstock
|
Specifications |
CK6140 |
|
Max.Swing over bed |
400mm |
|
Max.swing dia. over cross slide |
245mm |
|
Max.workpiece length |
750/1000/1500 |
|
Spindle taper |
Morse NO.6(MT6) [φ90 1:20(B type)] [φ113 1:20(C type)] |
|
Chuck size |
C6[D8 (B TYPE ,C TYPE)] |
|
Spindle bore diameter |
φ52MM, [φ80MM (B TYPE)], [φ105MM(C TYPE)] |
|
Range of spindle speeds(3 steps) |
Independent spindle:100-1600r/min |
|
Tail stock center travel |
150mm |
|
Tail stock sleeve taper |
MT5 |
|
Positioning accuracy |
±0.015mm |
|
Repositioning accuracy |
±0.006mm |
|
X/Z rapid traverse |
4/6m/min |
|
Spindle Motor |
7.5KW |
|
Machine dimensions(LXWXH) |
2350X1500X1600mm |
|
Packing dimensions (LXWXH) |
2700x1600x1900mm |
|
Net weight |
1800KG |
|
Gross weight |
2000KG |
