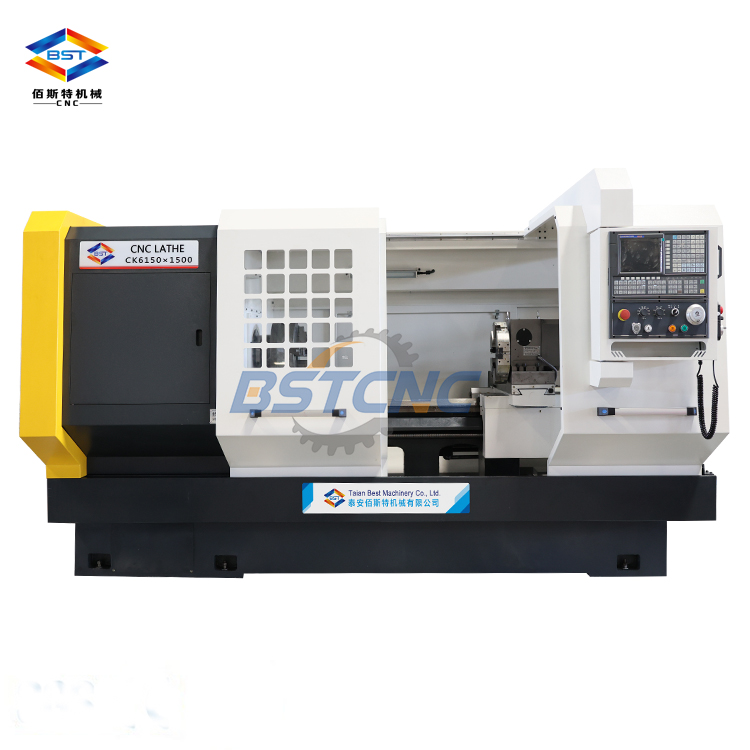

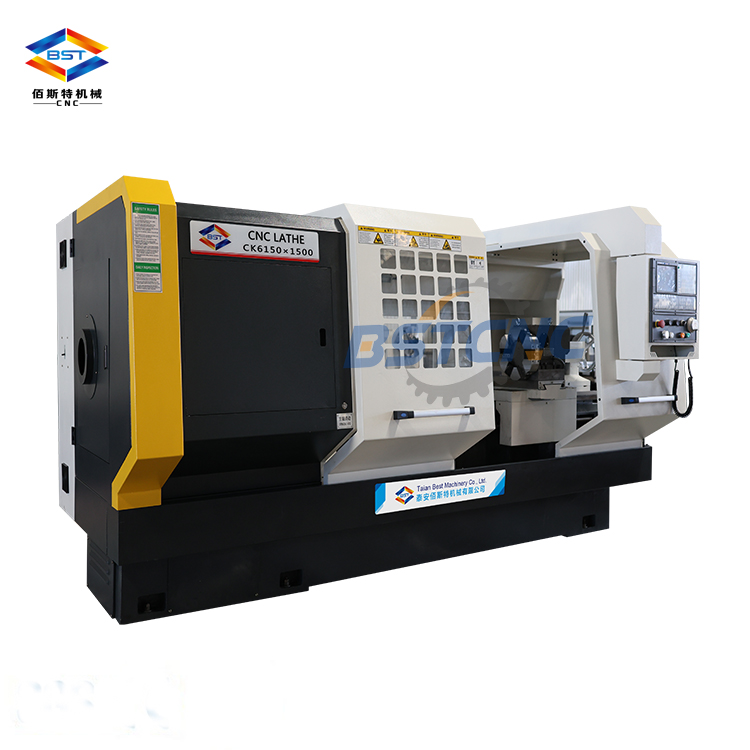

CDK6160 series CNC lathe， it is a device designed, developed and produced specifically for some lightweight large-diameter workpieces, with large spindle holes and high cost-effectiveness， high stability , high rigidity and high accuracy .
Standard Configuration :
-GSK980TB3
-3 jaws manual chuck
-4 station electric turret
-Manual tailstock
|
Item |
Unit |
CDK6160 |
|
|
Max dia.swing over bed |
mm |
600 |
|
|
Max dia.swing over cross slide |
mm |
370 |
|
|
Max.length of work-piece |
mm |
1000/1500/2000/3000 |
|
|
Width of bed |
mm |
400 |
|
|
Spindle bore |
mm |
200/225 |
|
|
Power of spindle motor |
Kw |
7.5 |
|
|
Mode of spindle speed |
|
Two step variable speed |
|
|
Range of spindle speed |
r/min |
Ⅰ :30-120/Ⅱ:120-500 |
|
|
Max.traverse of X/Z |
mm |
X:310 Z:800/1300/1800/2800 |
|
|
X/Z rapid traverse |
mm/min |
4000 |
|
|
X-axis motor
|
Speed |
r/min |
1500 |
|
Torgue |
N.m |
6 |
|
|
Power |
Kw |
1.5 |
|
|
Z-axis motor |
Speed |
r/min |
1500 |
|
Torgue |
N.m |
10 |
|
|
Power |
Kw |
1.5 |
|
|

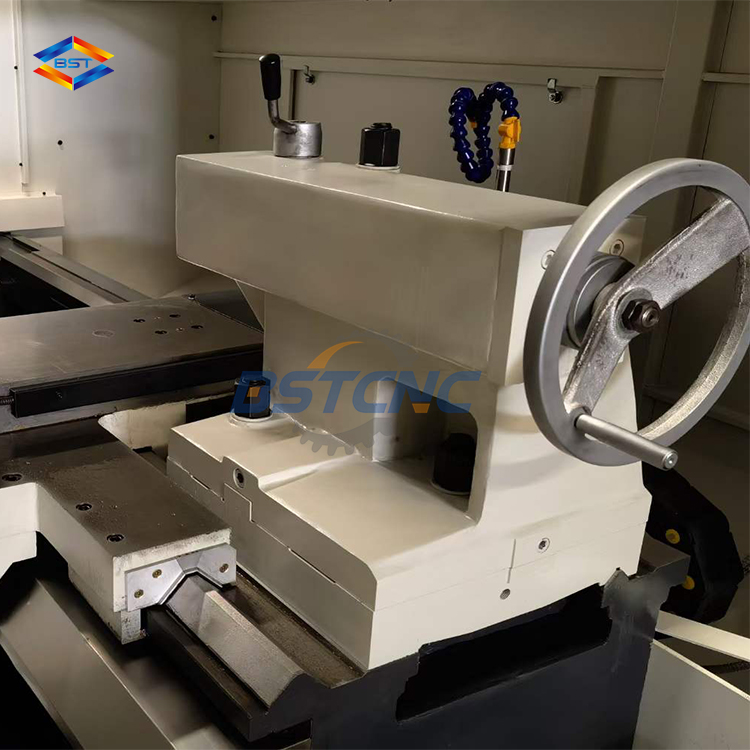

Tailstock quill |
Diameter |
mm |
75 |
|
Travel |
mm |
150 |
|
|
Taper |
|
Morse NO.5 |
|
|

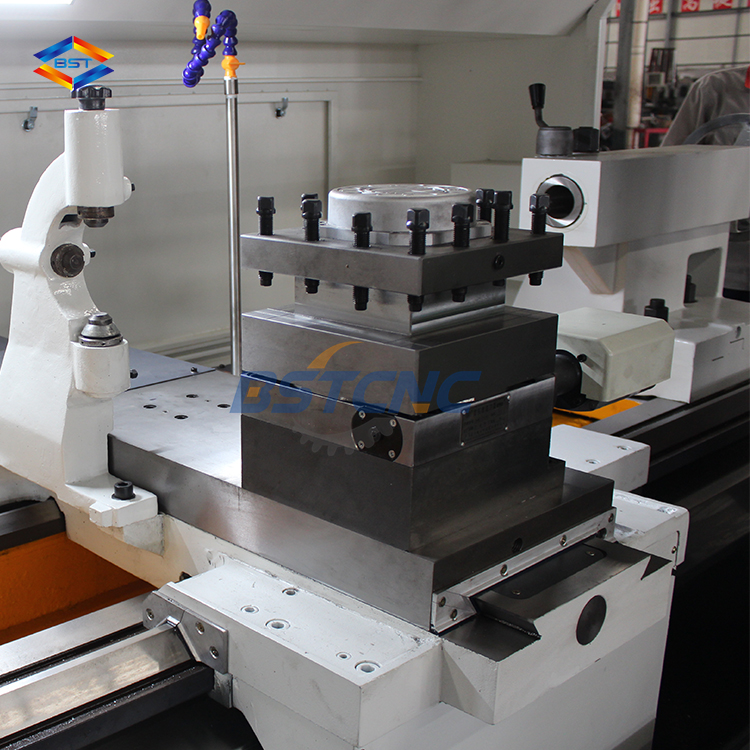

Electric tool-post |
Model |
|
HAK21192 |
|
stations |
|
Vertical four-station |
|
|
Dimension |
mm |
192 × 192 |
|
|
Tool change time |
S |
2.6 |
|
|

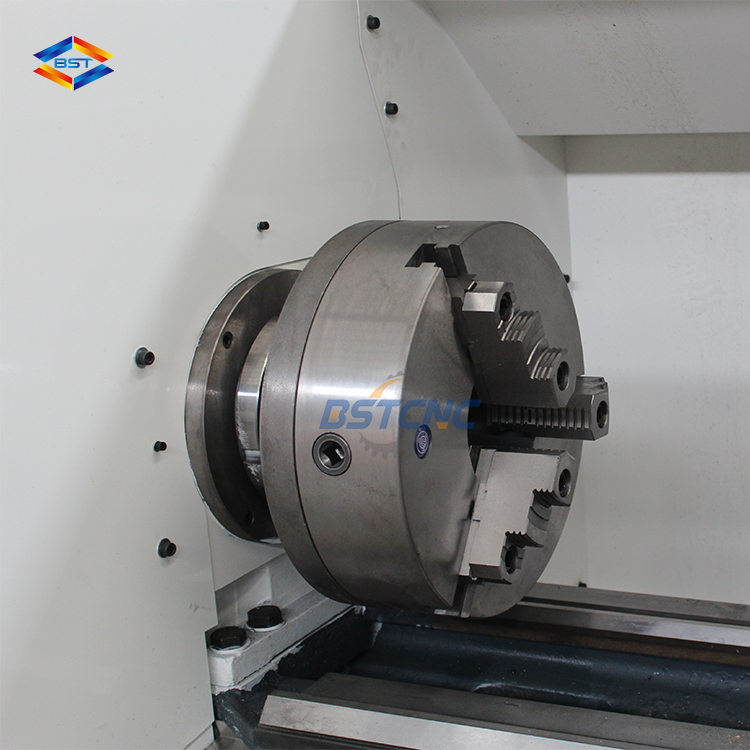

Chuck |
|
K11-500-3 jaws chuck |
|
|
Positioning accuracy |
mm |
X:0.020/Z:0.03 |
|
|
Repositioning accuracy |
mm |
X:0.012/Z:0.016 |
|
|
Overall dimensions(L*W*H) |
mm |
2700 × 1500 × 1700 |
|
|
Machine weight |
T |
3.0 |
|
