Q1319 Pipe Threading Lathe
Q1319 Pipe Threading Lathe Q1319 Pipe Threading Lathe Q1319 Pipe Threading Lathe Q1319 Pipe Threading Lathe Q1319 Pipe Threading Lathe

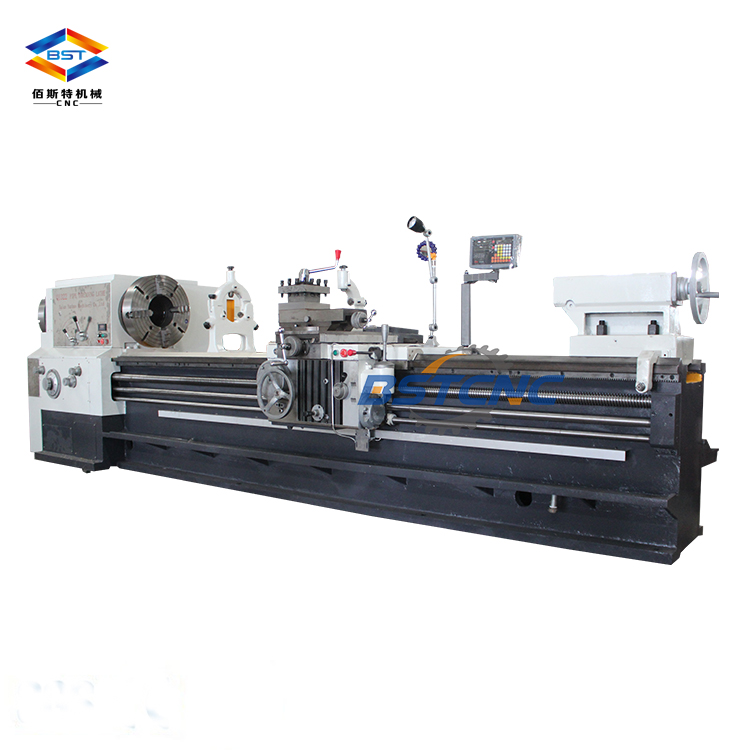

Q1319 Pipe Threading Lathe

Product Description :
Q13 series pipe threading lathe mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore,end face of shaftes and disks , this series is equipped with taper guide bar device which enables this series to process taper thread , this series is widely used in industries including petroleum exploiting ,minerals mining,chemical piping and geological prospecting for processing and repairing drilling pipe ,drilling rod,thread coupling and so on .
Product Characteristics:

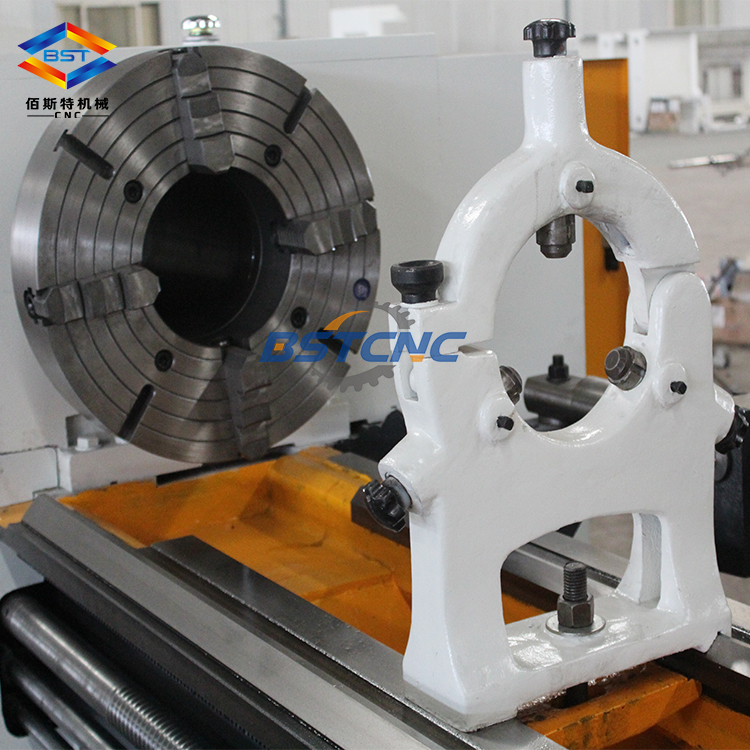

  • -Big spindle bore and double chuck allows clamp and process big diameter pipes ;
  • -Integral machine bed adopts high strength iron to realize high rigidity and presion ;
  • -Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
  • -Equipped with taper guide bar device this enables the machine to process taper threads;
Product Parameter

ITEM

UNIT

Q1319

Max dia.swing over bed

mm

630

Max dia.swing over cross slide

mm

340

Max.length of work-piece

mm

1500

Width of bed

mm

550

Spindle bore

mm

200

Power of spindle motor

KW

11KW

Spindle speed

RPM

FWD.12 STEPS, 36-380

Z axis feed grade/range

Mm/r

                                       26/0.07-1.33

X axis feed grade/range

Mm/r

                                      22/0.02-0.45

Carriage rapid traverse speed

mm/min

                                            4000

Cross slide rapid traverse speed

mm/min

2300

Metric thread grade/range

mm

24/1-14

Inch  thread grade/range

T.P.I

40/2-28

Traverse of Cross slide

mm

320

Max.traverse of turret

mm

200

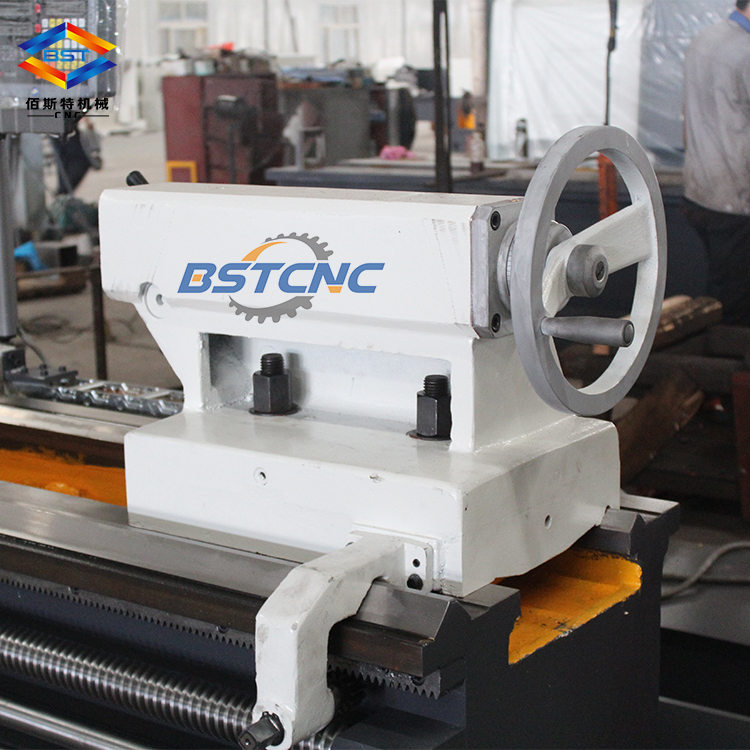

Tailstock quill travel

mm

205

Tailstock quill Dia/taper



100mm /MT5#

Overall dimensions(L*W*H)

mm

3657x1360x1555

Machine weight

KG

4500
