Product Description :

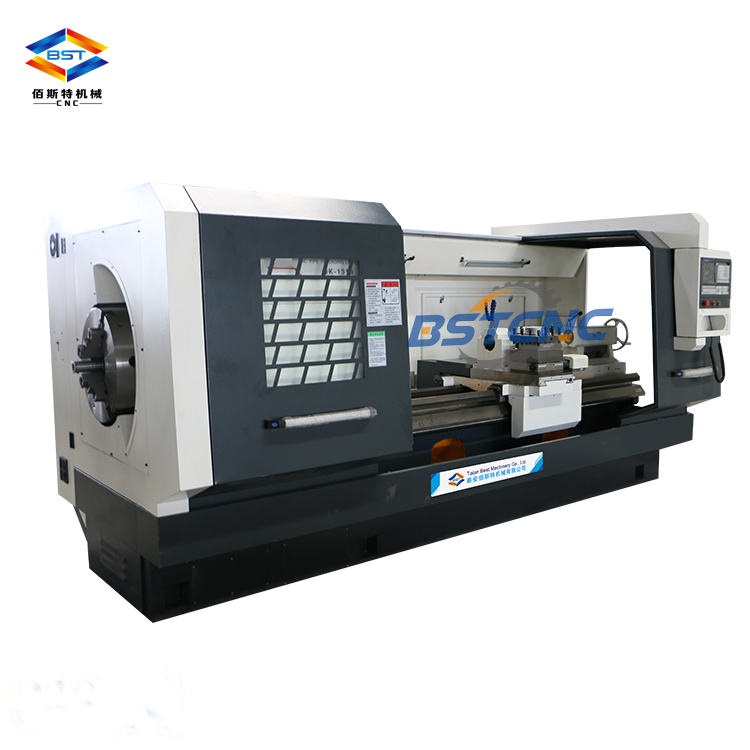

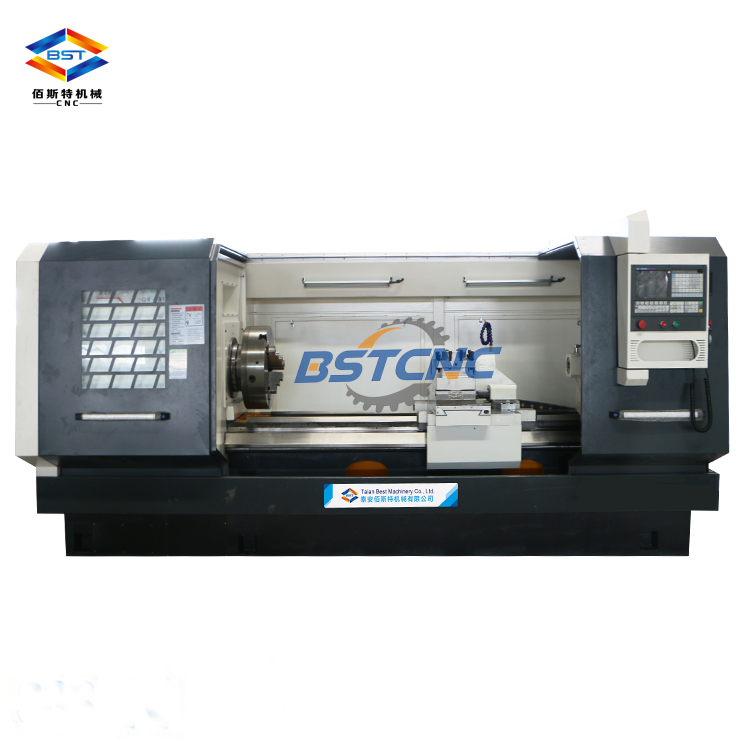

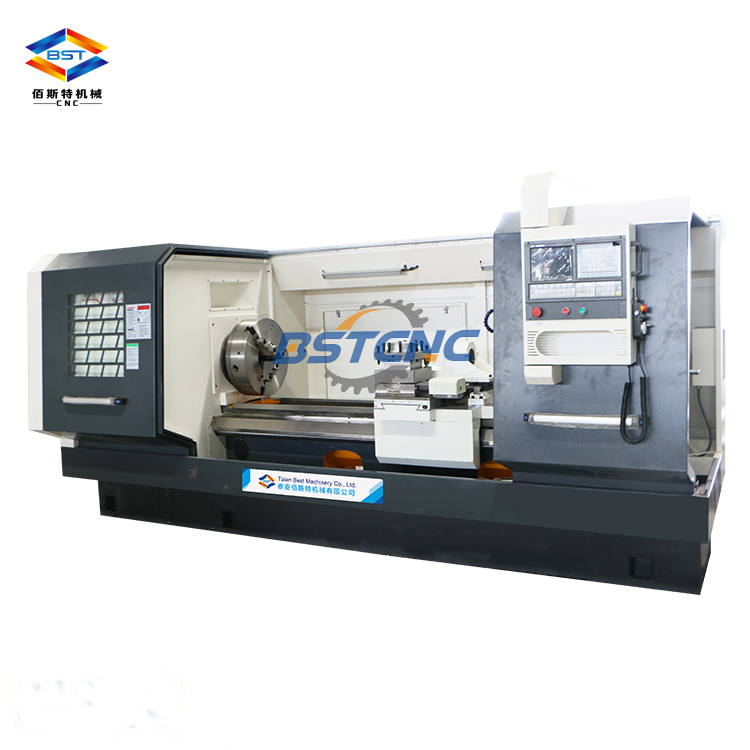

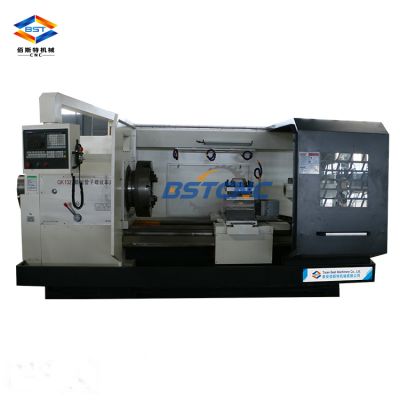

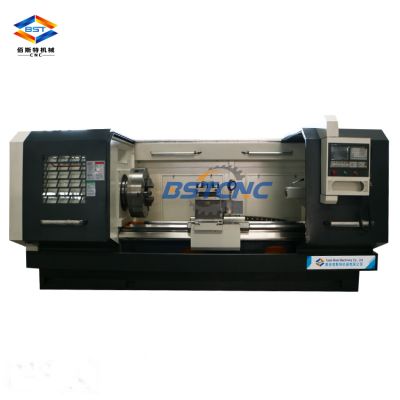

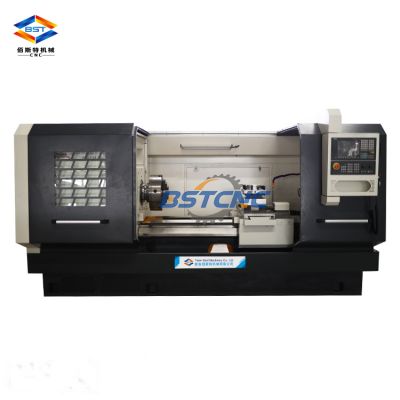

QK series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric,inch ,module,DP and taper thread ,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting ,minerals,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe ,drilling rod,thread coupling and so on .
Standard configuration:
|
ITEM |
UNIT |
QK1319 |
|
|
Max dia.swing over bed |
mm |
630 |
|
|
Max dia.swing over cross slide |
mm |
330 |
|
|
Max.length of work-piece |
mm |
1500 |
|
|
Width of bed |
mm |
550 |
|
|
Spindle bore |
mm |
200 |
|
|
Power of spindle motor |
KW |
11 |
|
|
Mode of spindle speed |
|
Two gears， smooth adjustment |
|
|
Range of spindle speed |
r/min |
L:25-120 H:100-500 |
|
|
Max.traverse of X/Z |
mm |
X:350 Z:1250 |
|
|
X/Z rapid traverse |
mm/min |
4000 |
|
|
X-axis motor |
Speed |
r/min |
1500 |
|
Torgue |
N.m |
10 |
|
|
Power |
Kw |
1.5 |
|
|
Z-axis motor |
Speed |
r/min |
1500 |
|
Torgue |
N.m |
15 |
|
|
Power |
Kw |
2.3 |
|
|
Tailstock quill |
Diameter |
mm |
100 |
|
Travel |
mm |
250 |
|
|
Taper |
|
Morse NO.5 |
|
|

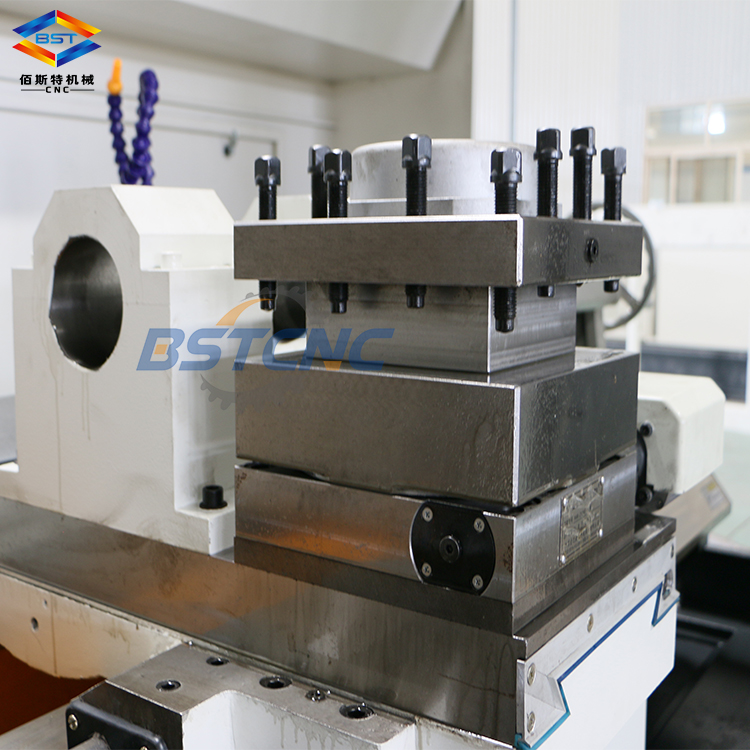

Electric tool-post |
Model |
|
HAK-21240 |
|
Type |
|
Vertical four-station |
|
|
Dimension |
mm |
240×240 |
|
|
Turret indexing time |
S |
2.6 |
|
|

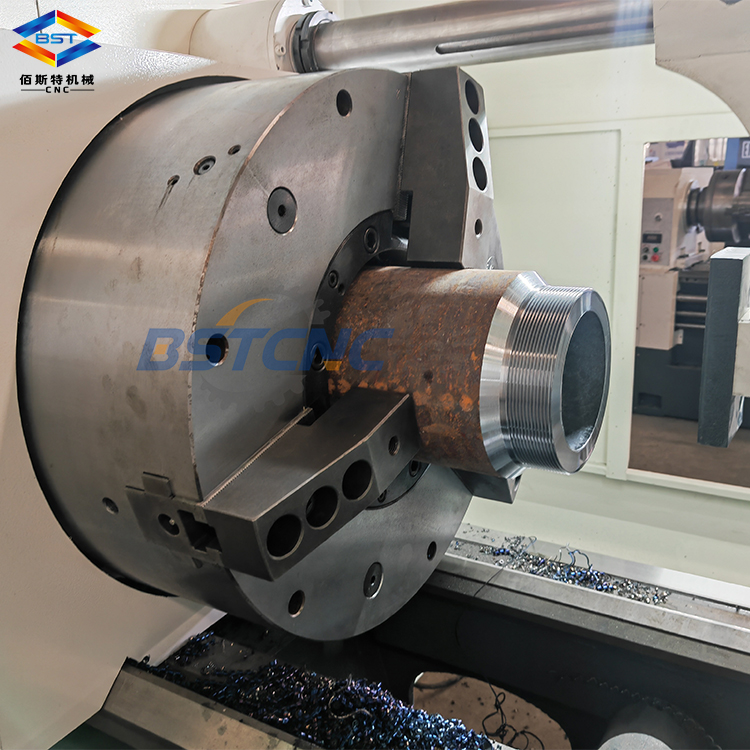

Chuck |
|
K11-500 THREE JAW CHUCK |
|
|
Positioning accuracy |
mm |
0.020 |
|
|
Repositioning accuracy |
mm |
0.01 |
|
|
Overall dimensions(L*W*H) |
mm |
3700x1755x1800 |
|
|
Machine weight |
KG |
4600 |
|
