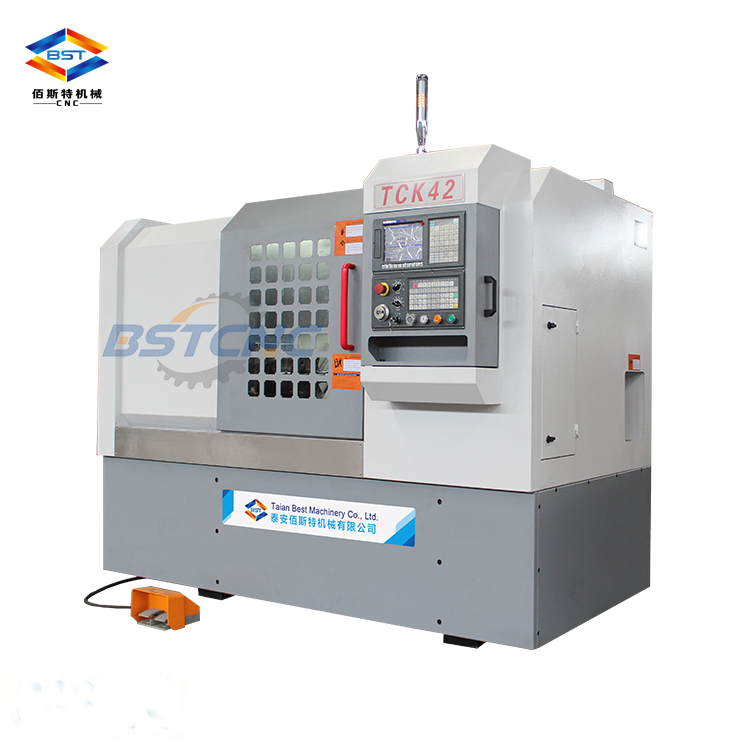

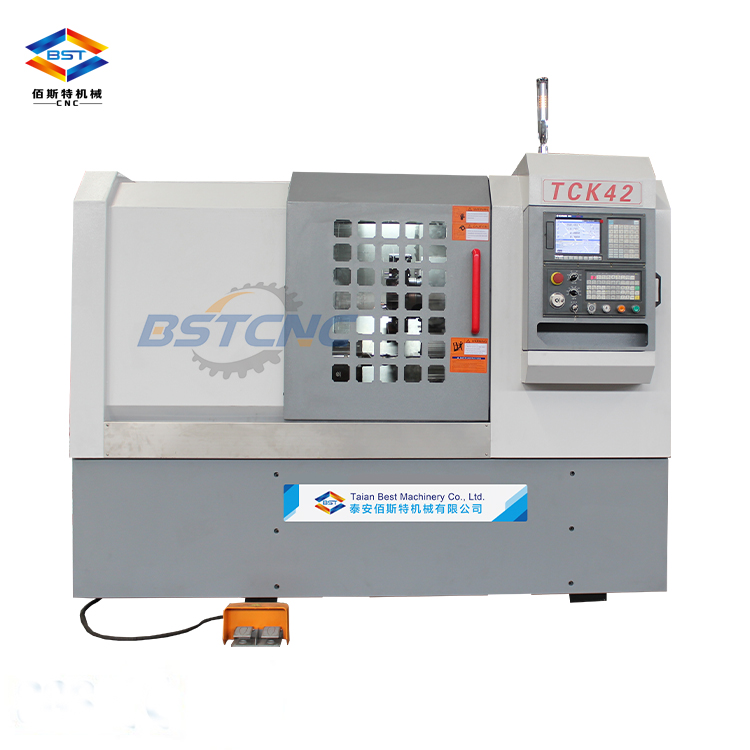

TCK42 Slant Bed CNC Lathe

Product Description :
The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.
Standard configuration:

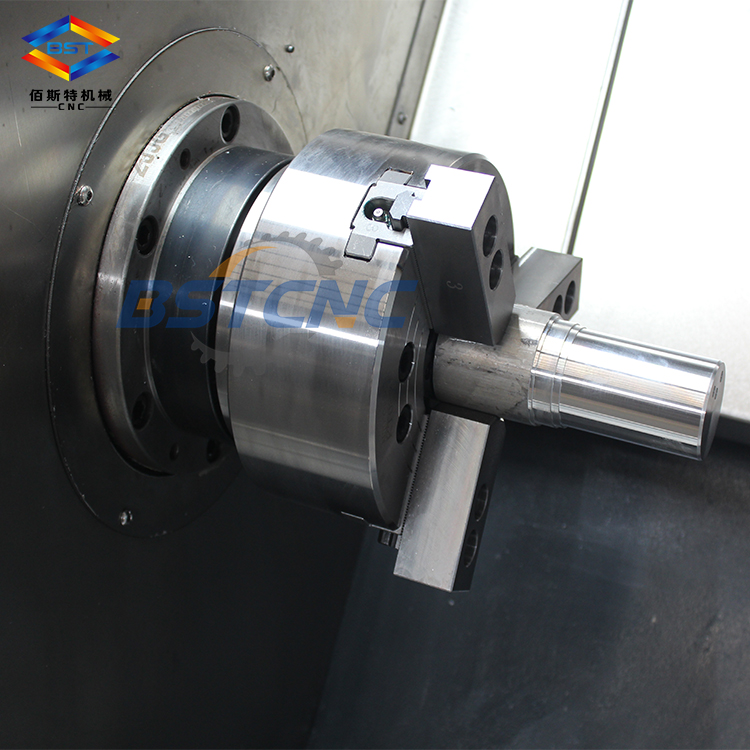

• -3-jaw hydraulic chuck and hydraulic station ;

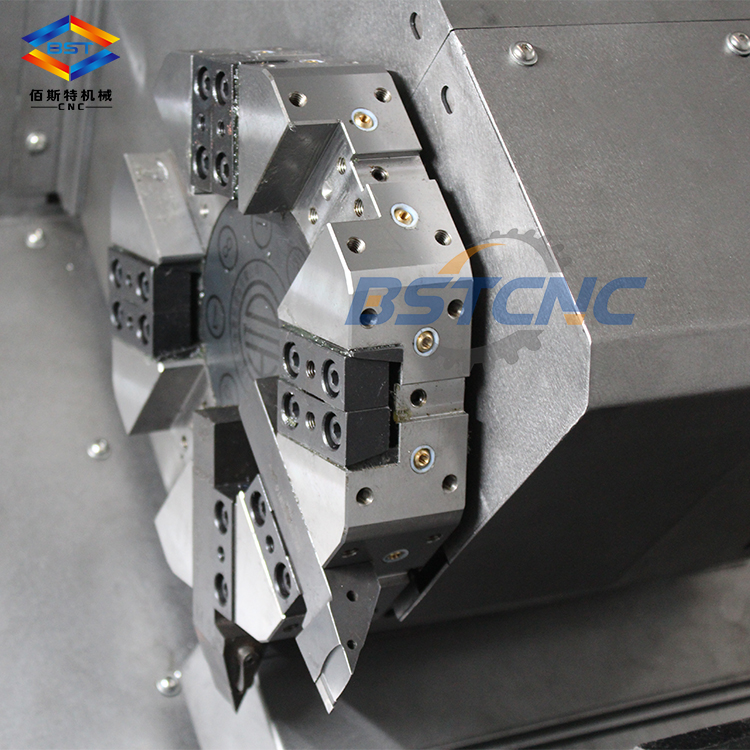

• -8 station electric turret;

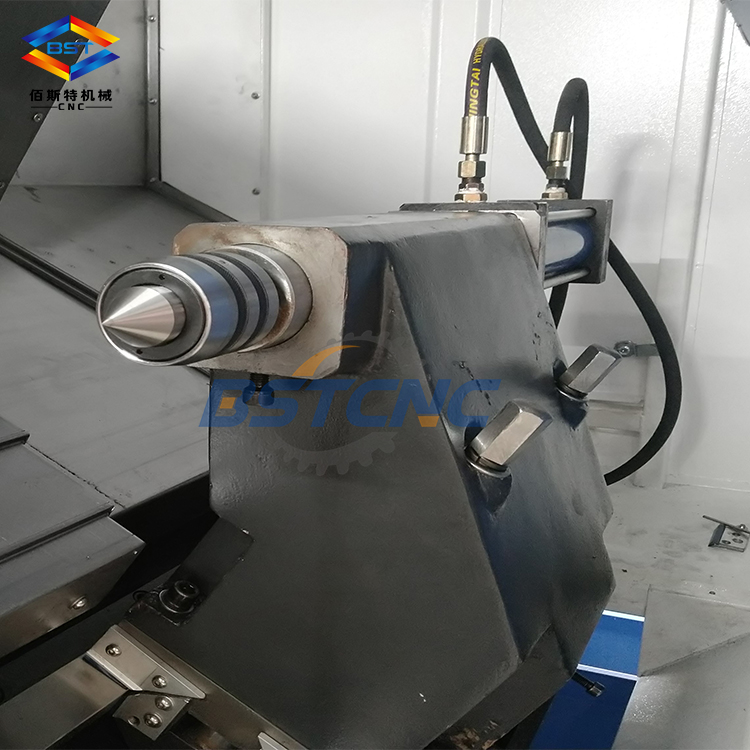

• -Hydraulic tailstock ;
• -7.5KW Servo motor ;
• -Lighting system and Cooling device;
• -Automatic lubrication system;
• -Taiwan HIWIN ball screw and Linear guideways;
• -GSK980TC3 control system ;
