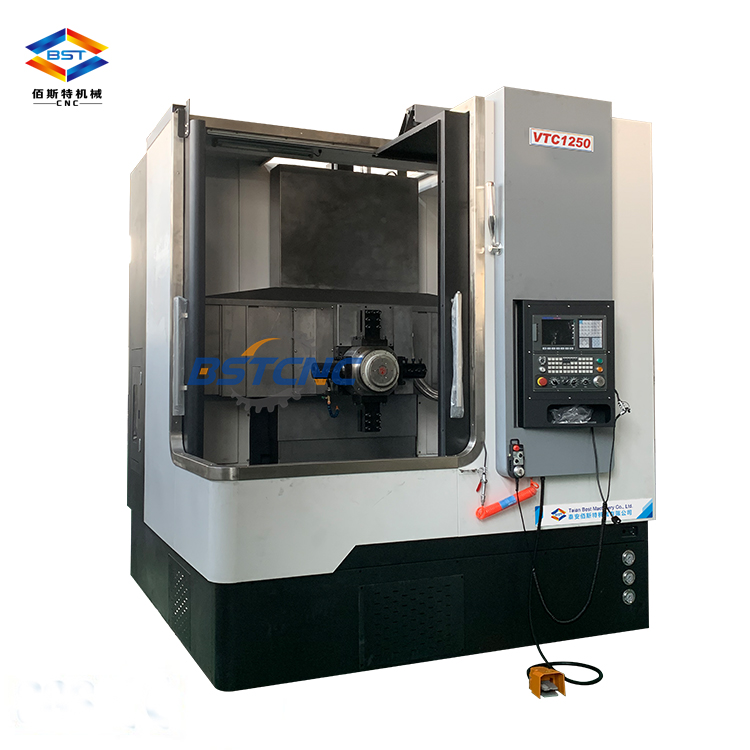

VTC1250 VERTICAL CNC TURNING CENTER
VTC1250 VERTICAL CNC TURNING CENTER VTC1250 VERTICAL CNC TURNING CENTER VTC1250 VERTICAL CNC TURNING CENTER VTC1250 VERTICAL CNC TURNING CENTER VTC1250 VERTICAL CNC TURNING CENTER

VTC1250 VERTICAL CNC TURNING CENTER

Product Description :

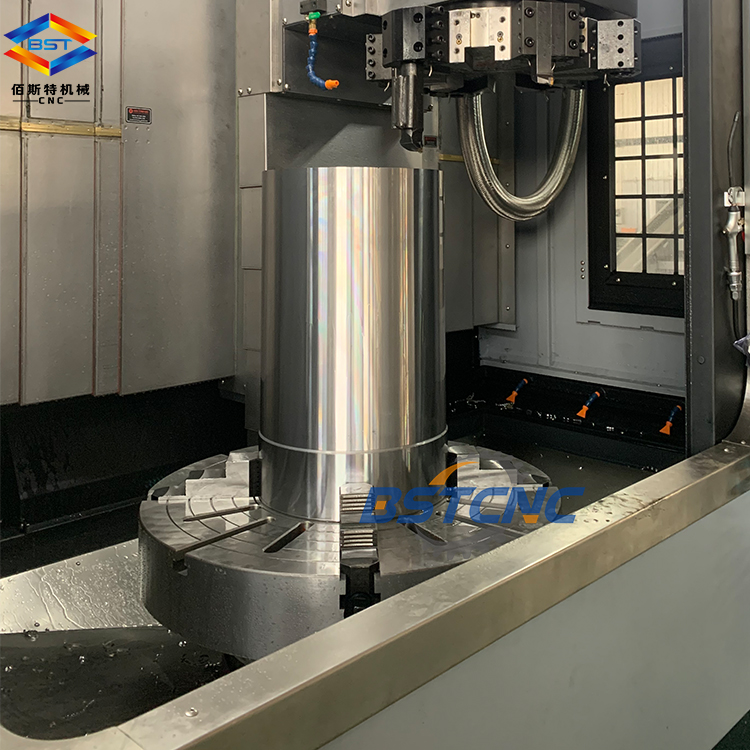

The VTC series machine tool is an automated CNC machining tool used for machining the inner and outer cylindrical surfaces, conical surfaces, end faces, grooves, and chamfers of parts. It is particularly suitable for machining automotive brake hubs, wheel drums, clutch pressure plates, flywheel shells, and other components; Add C-axis function, configure power turret, and complete drilling, tapping, and milling processing.
Standard configuration:

  • -GSK980 control system;

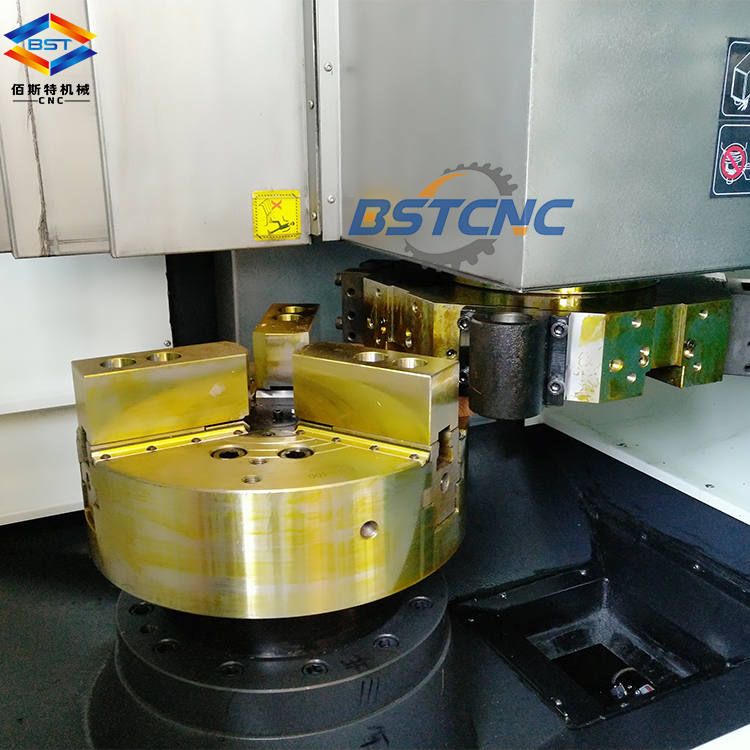

  • -4-jaw manual chuck1000mm;

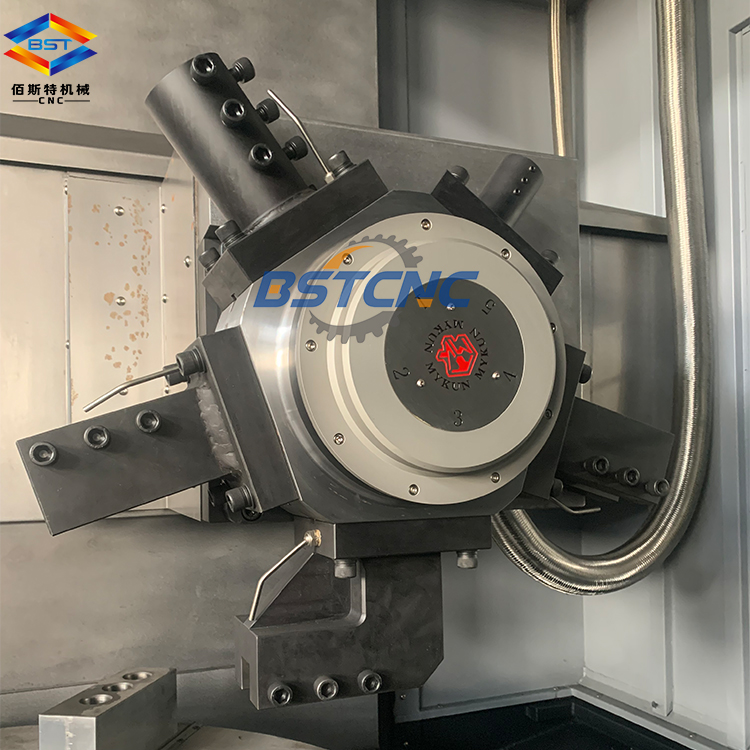

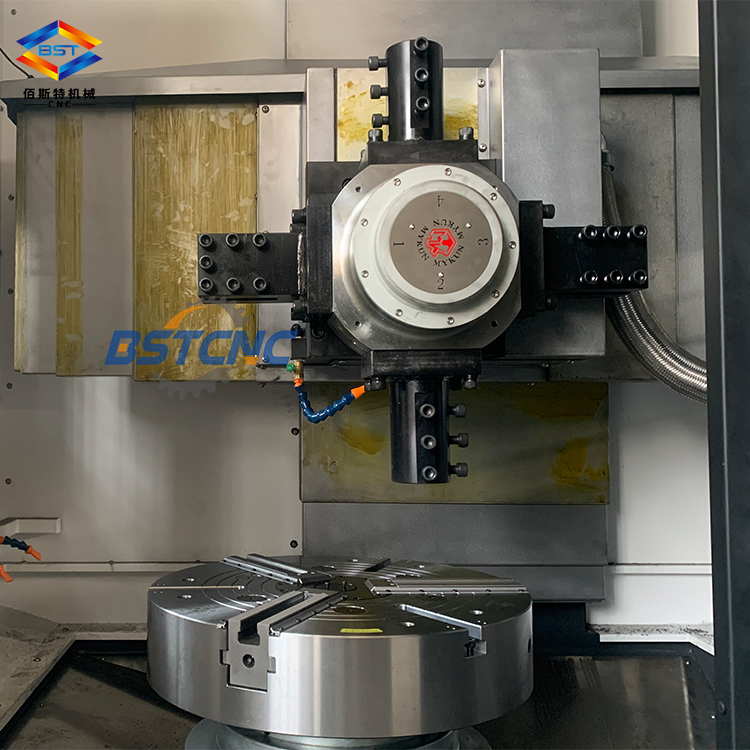

  • -Taiwan vertical 4 station turret;
  • -Taiwan HIWIN ball screw and Linear guideways;
  • -Full enclosure machine guard and Stainless steel splash guard;
  • -Automatic lubrication system and Cooling system;
  • -Lighting system with 3 color light, Leakage protection ,pneumatic Sliding door;
  • -Chain chip conveyor with chip chart;

For more requirements and configurations , please contact us directly .

Product Parameter

  Items

VTC1250

Processing Range

Max.swing diameter

1250mm

Max.turning diameter

1050mm

Spindle

Spindle taper

A2-11

Diameter of bearing

180mm

Speed Range

20-500rpm(double speed gear box)

Output Torque

2100Nm

Chuck

Chuck Diameter

1000mm manual

Turret

Turret type

Vertion 4 station

Turret specification

125mm center height

Cutting tool size

ф32/ф50mm

Travel

Travel of X axis

-50-650mm

Travel of Z axis

800mm

Max.processing height

150-950

Linear guide ways  and screw

X/Z linear guide ways

65/55 Roller

X/Z screw diameter

Ф 50mm

Feeding

 X axis rapid feed

15m/min

 Z axis rapid feed

12m/min

Cutting feed

0.1-5000m/min



Power and Torque of Motor

X axis power/torque

3.5kw/22Nm

 Z axis power/torque

3.5kw/22Nm

Main motor Power/torque

22/30kw-210Nm

(double speed gear box)

Dimension

Length X width X height

2700X2850X3250MM

Weight

12800KG
