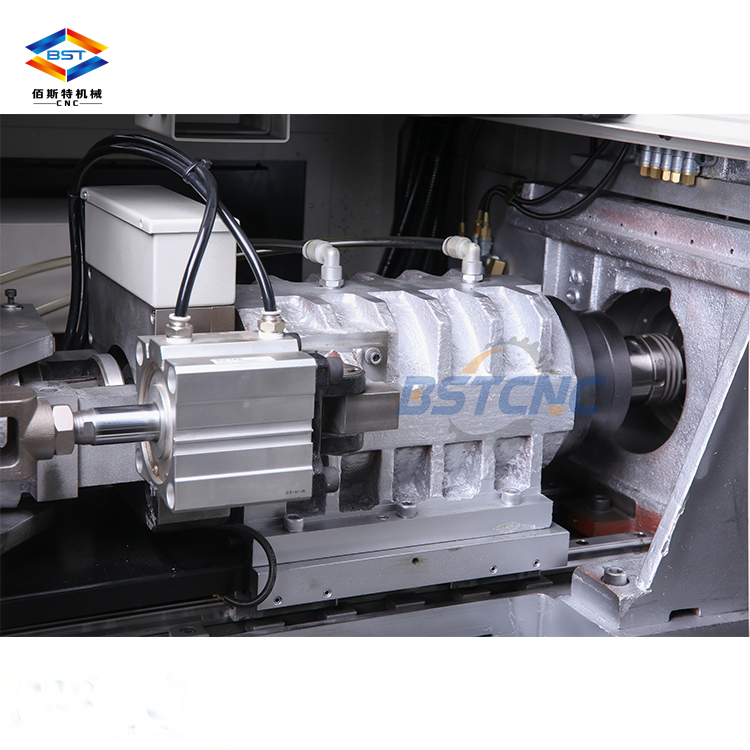

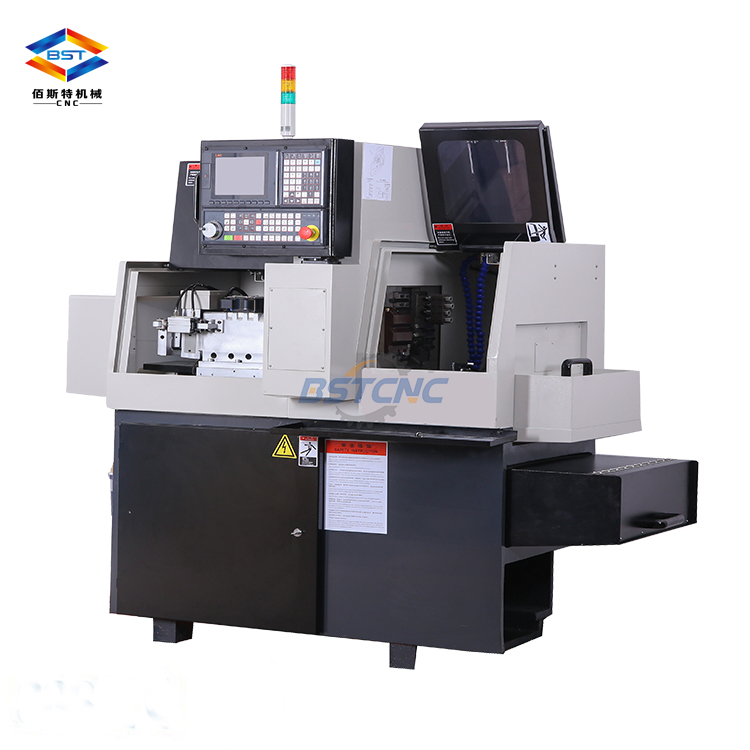

★The machine tool bed is integrally cast with resin sand,with strong seismic resistance and less deformation,so as to ensure the high rigidity and high precision of the machine tool.
★Widely used in electronic,communication,medical,household appliances and other industry parts.
★Japan Ankawa motor drive,Japan NSK bearing,Taiwan HIWIN or PMI ball screw and linear guide ways ,Taiwan LNC , Syntec system.
★ Switch on and off machine no need to return original point,saving time and to avoid interference from travel switches on the system.
|
Item |
Unit |
Specification |
|
|
Spindle |
Stroke |
mm |
105 |
|
Max.spindle speed |
rpm |
8000 |
|
|
Max.turning diameter |
mm |
φ26 |
|
|
Additional positive brake |
|
No grade |
|
|
Spindle bore diameter |
mm |
φ27 |
|
|

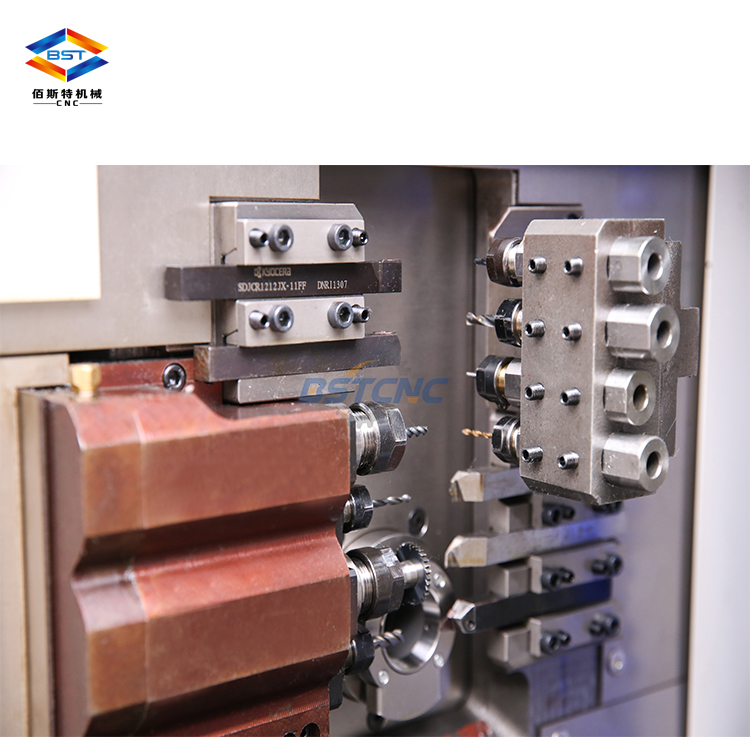

Tooling |
O.D tools Number |
ea |
5 |
|
OD tool size |
mm |
12X12 |
|
|
Front work tools Number |
ea |
4 |
|
|
Front.Max.drilling diameter |
mm |
Φ7(ER11) |
|
|
Front.Max.tapping diameter |
mm |
M6(ER11) |
|
|
Cross driven tools Number |
ea |
4 |
|
|
Cross driven tools Max.rpm |
rpm |
5000 |
|
|
Cross.Max.drilling diameter |
mm |
Φ8(ER16) |
|
|
Cross.Max.tapping diameter |
mm |
M6(ER16) |
|
|
Cross.Max.diameter of milling cutter |
mm |
Φ32(ER16) |
|
|
Motor |
Spindle motor |
kw |
4.8 |
|
Cross driven tools motor |
kw |
0.75 |
|
|
Servo motor |
kw |
(X/Z/Y)0.75 |
|
|
Lubricant motor |
kw |
0.25 |
|
|
Coolant pump |
kw |
0.85 |
|
|
Rapid traverse rate |
m/min |
X/Y 30, Z 24 |
|
|
Others |
Coolant tank capacity |
L |
115 |
|
Lubrication tank capacity |
L |
3 |
|
|
Center height |
mm |
1050 |
|
|
Dimensions(L×W×H) |
mm |
1850×1065×1800 |
|
|
Machine weight |
kg |
1780 |
|
|
Power consumption |
kw |
8 |
|
|
CNC controller |
|
Taiwan LNC/Syntec |
|
