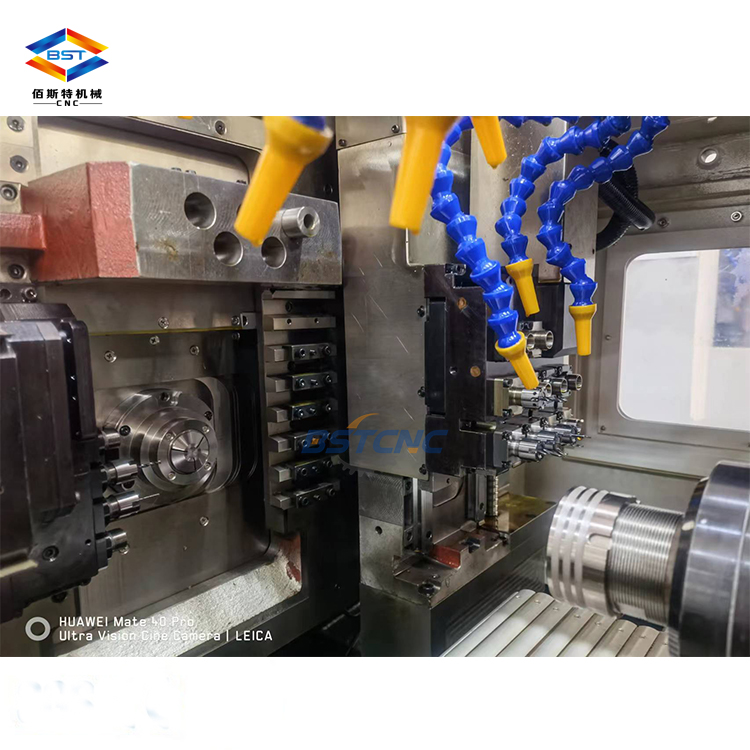

★The machine tool bed is integrally cast with resin sand,with strong seismic resistance and less deformation,so as to ensure the high rigidity and high precision of the machine tool.
★Widely used in electronic,communication,medical,household appliances and other industry parts.
★Japan Ankawa motor drive,Japan NSK bearing,Taiwan HIWIN or PMI ball screw and linear guide ways ,Taiwan LNC , Syntec system.
★ Switch on and off machine no need to return original point,saving time and to avoid interference from travel switches on the system.
|
Item |
Unit |
Specification |
|
|

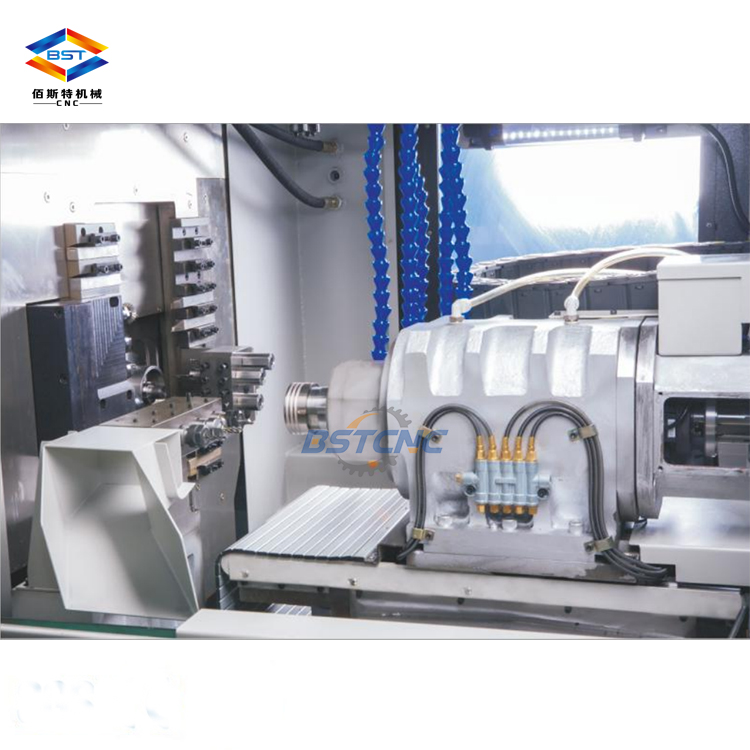

Spindle |
Stroke |
mm |
105 |
|
Max.spindle speed |
rpm |
8000 |
|
|
Max.turning diameter |
mm |
φ26 |
|
|
Additional positive brake |
|
No grade |
|
|
Spindle bore diameter |
mm |
φ27 |
|
|

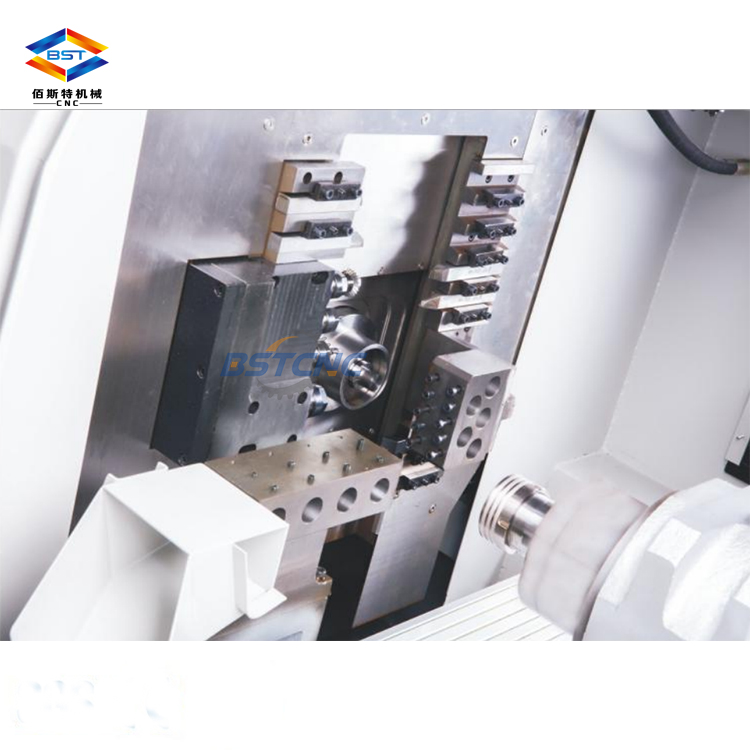

Tooling |
O.D tools Number |
ea |
12 |
|
OD tool size |
mm |
16X16 |
|
|
Front work tools Number (main) |
ea |
5 |
|
|
Front work tools Number (sub) |
ea |
5+4 |
|
|
Front.Max.drilling diameter |
mm |
Φ10(ER16) |
|
|
Front.Max.tapping diameter |
mm |
M8(ER16) |
|
|
Cross driven tools Number |
ea |
4 |
|
|
Cross driven tools Max.rpm |
rpm |
5000 |
|
|
Cross.Max.drilling diameter |
mm |
Φ8(ER16) |
|
|
Cross.Max.tapping diameter |
mm |
M6(ER16) |
|
|
Cross.Max.diameter of milling cutter |
mm |
Φ45(ER20) |
|
|
Motor |
Spindle motor |
kw |
5.5/3.7 |
|
Cross driven tools motor |
kw |
1 |
|
|
Servo motor |
kw |
(X1/Z1/Y/X2/Z2) 0.75 |
|
|
Lubricant motor |
kw |
0.25 |
|
|
Coolant pump |
kw |
0.85 |
|
|
Rapid traverse rate |
m/min |
(X1/Y/X2) 25, (Z1/Z2)18 |
|
|
Others |
Coolant tank capacity |
L |
200 |
|
Lubrication tank capacity |
L |
3 |
|
|
Center height |
mm |
1150 |
|
|
Dimensions(L×W×H) |
mm |
2600×1560×2050 |
|
|
Machine weight |
kg |
4890 |
|
|
Power consumption |
kw |
21 |
|
|
CNC controller |
|
Taiwan LNC/Syntec |
|
