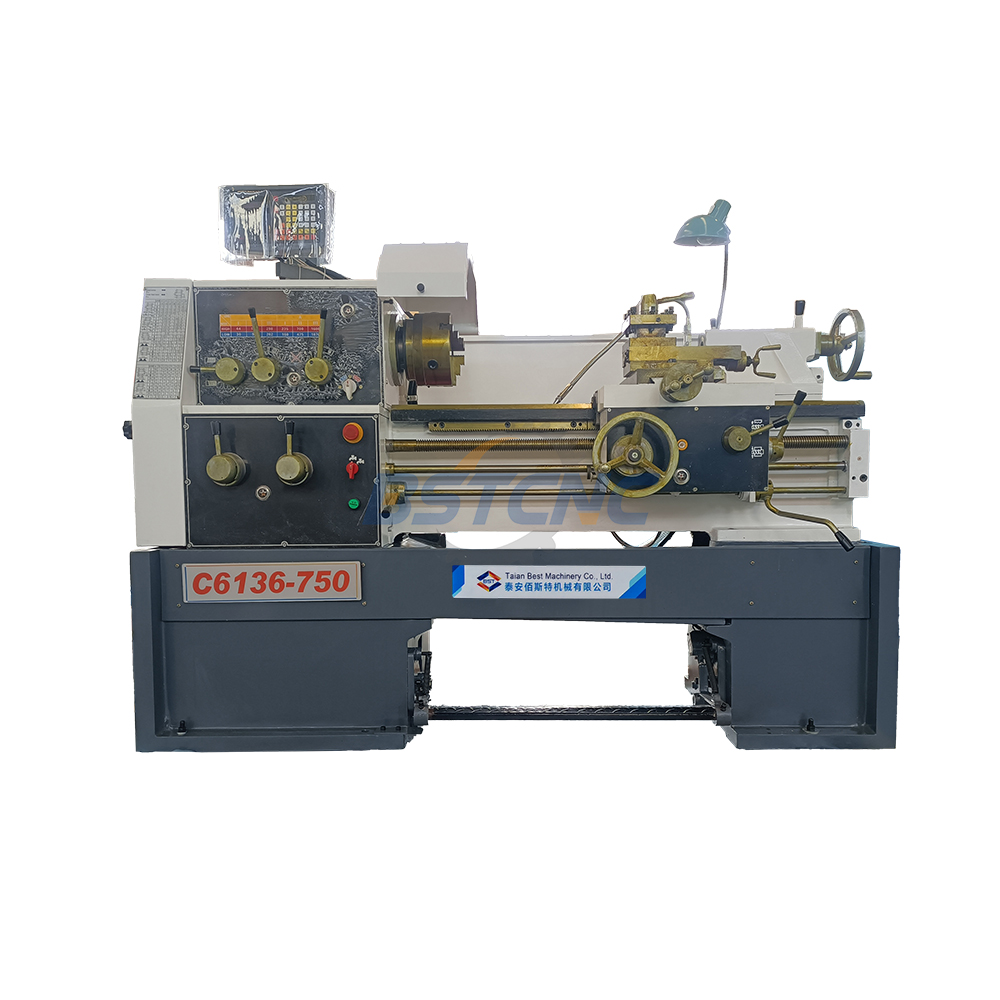

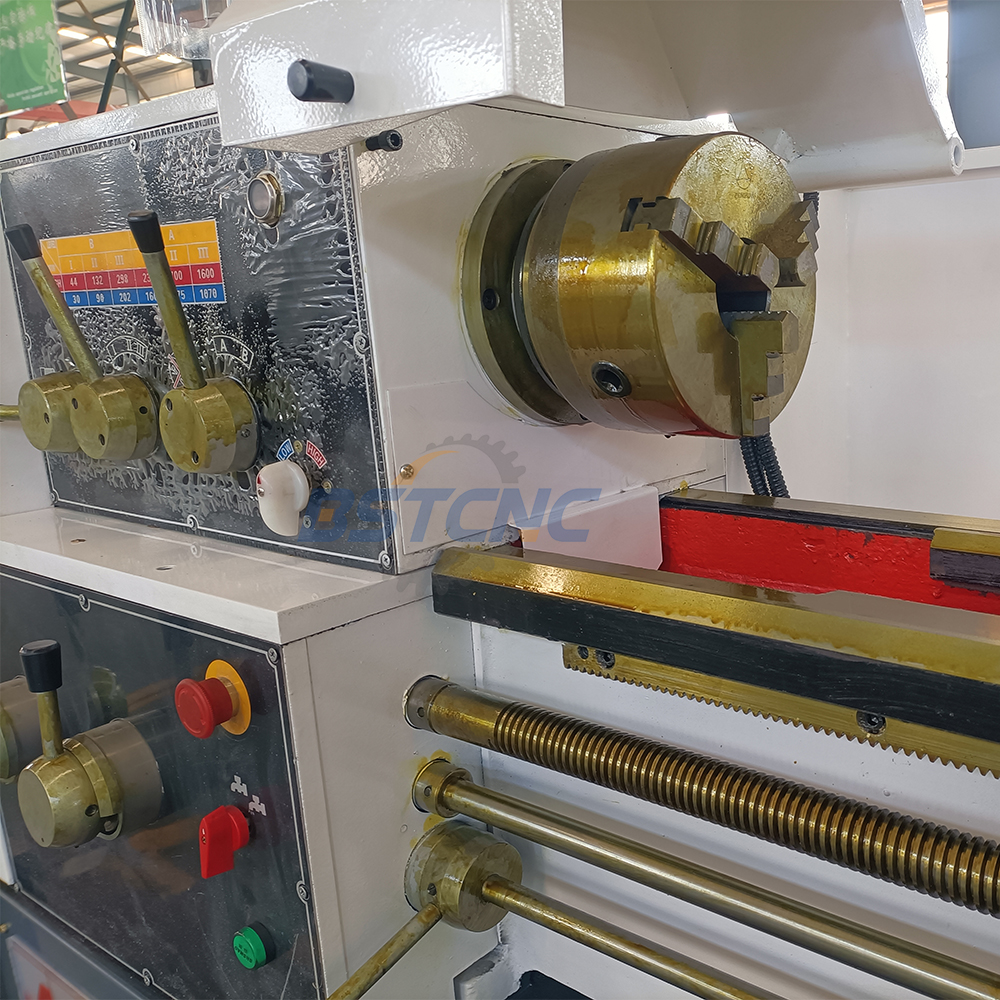

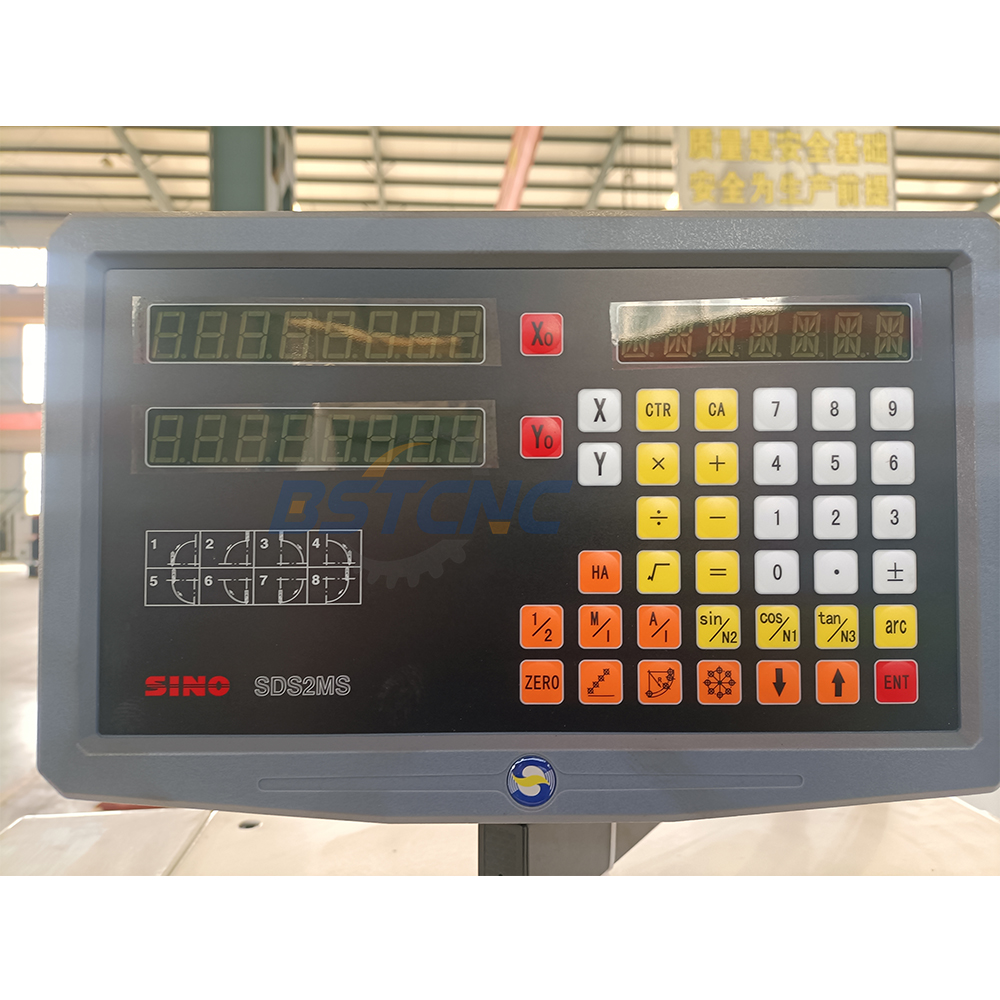

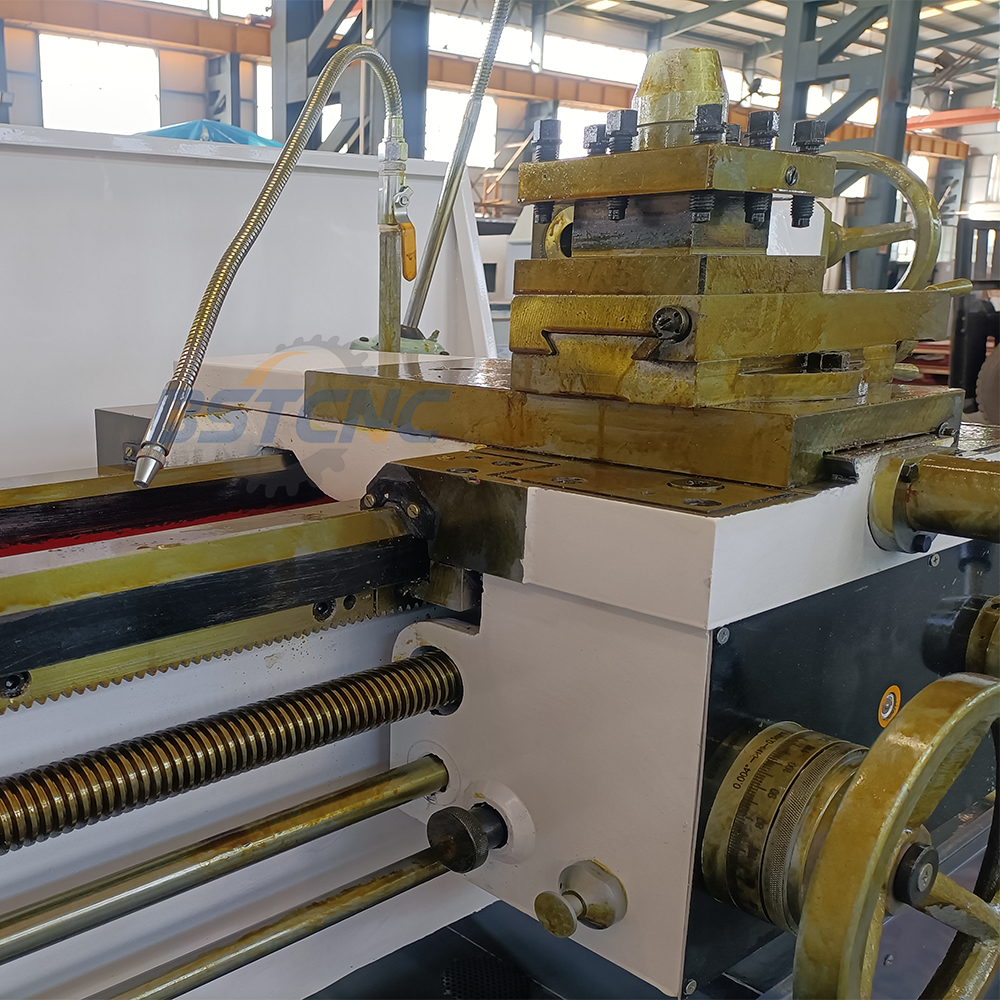

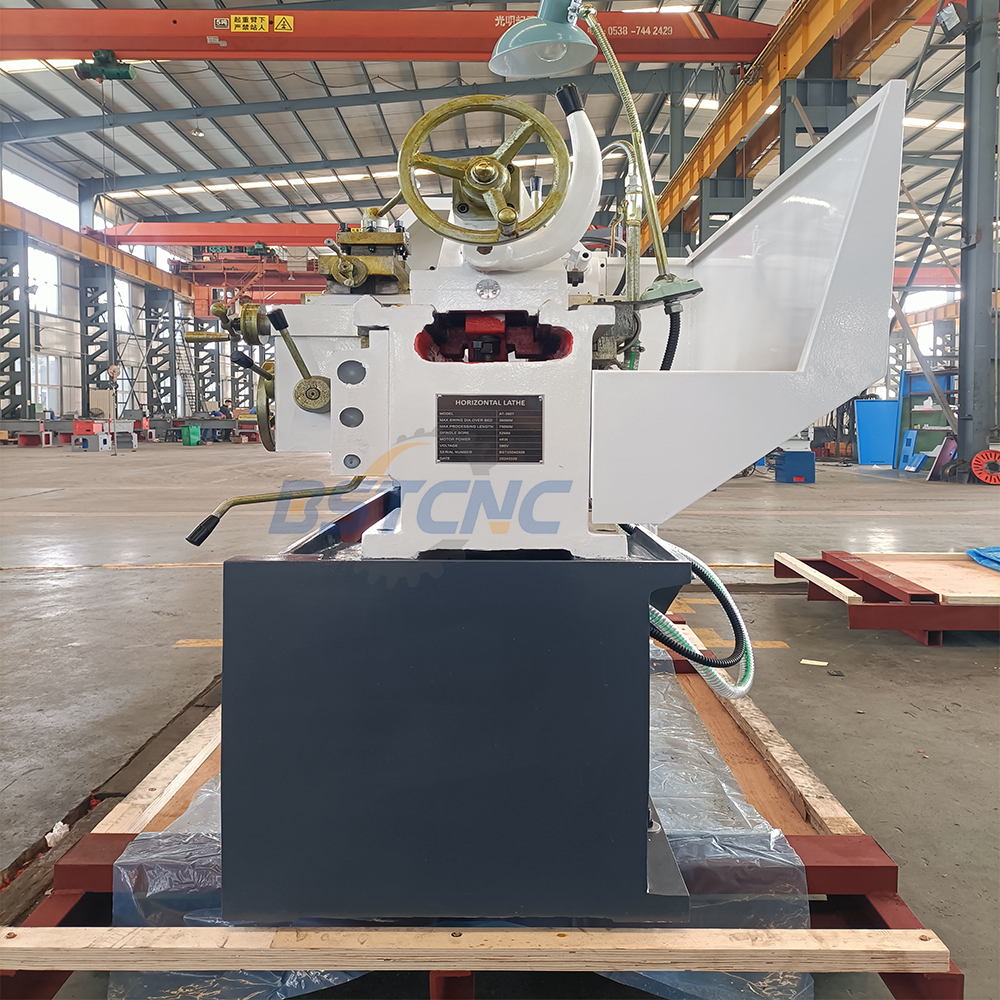

The CA6136 series manual horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotating surfaces, turning various metric, inch, modulus, and diametral pitch threads, and can perform drilling and oil groove pulling work. It is a highly versatile horizontal lathe and is widely used for batch processing of various shaft and disc parts.
Standard configuration:
|
Item |
CA6136 |
|
Max. Swing over bed |
360mm |
|
Max. swing over carriage |
200mm |
|
Max. Length of work piece |
750/1000mm |
|
Width of bed |
312mm |
|
Section of turning tool |
20 x 20 |
|
Spindle speed step |
12 grade （Forward, Reverse） |
|
Range of spindle speed |
30-1600r/min |
|
Hole through spindle |
52mm |
|
Spindle taper |
MT6 |
|
Spindle nose |
ISO(GB)C6 |
|
Number of feeds |
(0.039-1.05mm) ,(0.019-0.52)44 kinds |
|
Range of metric threads(kinds) |
0.5-20mm (25kinds) |
|
Range of inch threads(kinds) |
(80-1.75tpi) 35kinds |
|
Range of module threads(kinds) |
0.25-10( 24 kinds) |
|
Range of pitch threads(kinds) |
160-3.5DP(30 kinds) |
|
Tailstock sleeve travel |
100mm |
|
Tailstock sleeve diameter |
Φ60mm |
|
Taper of Tailstock spindle center hole |
NO.4 (MT4) |
|
Main motor |
3/4KW |
|
Packing Dimension |
1940/2180x 970x 1250mm |
|
Net /Gross weight |
1350/1550KG |
