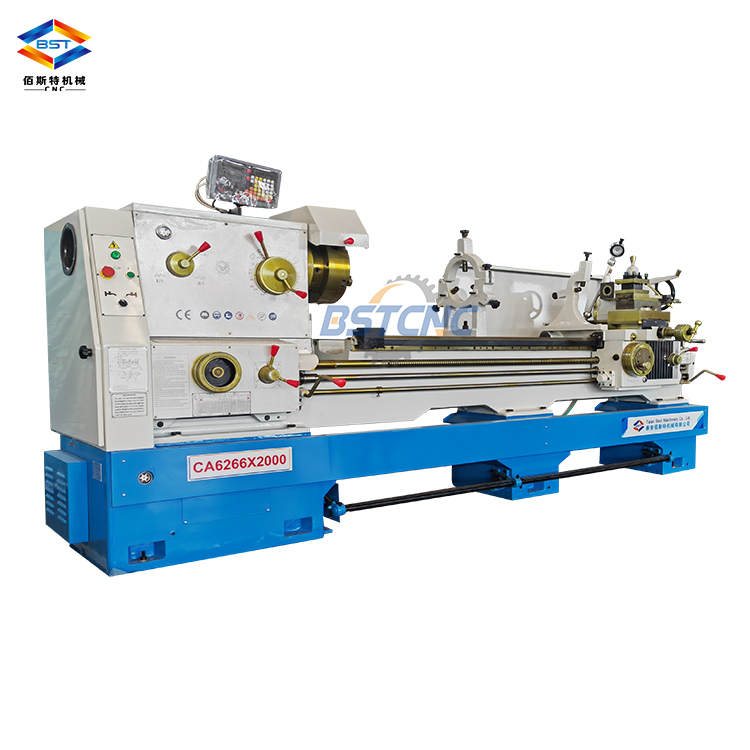

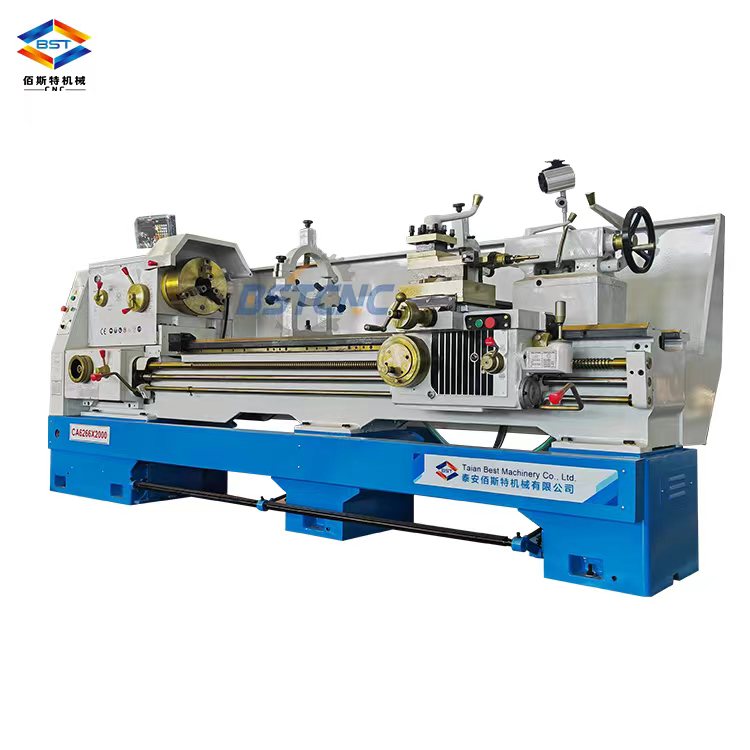

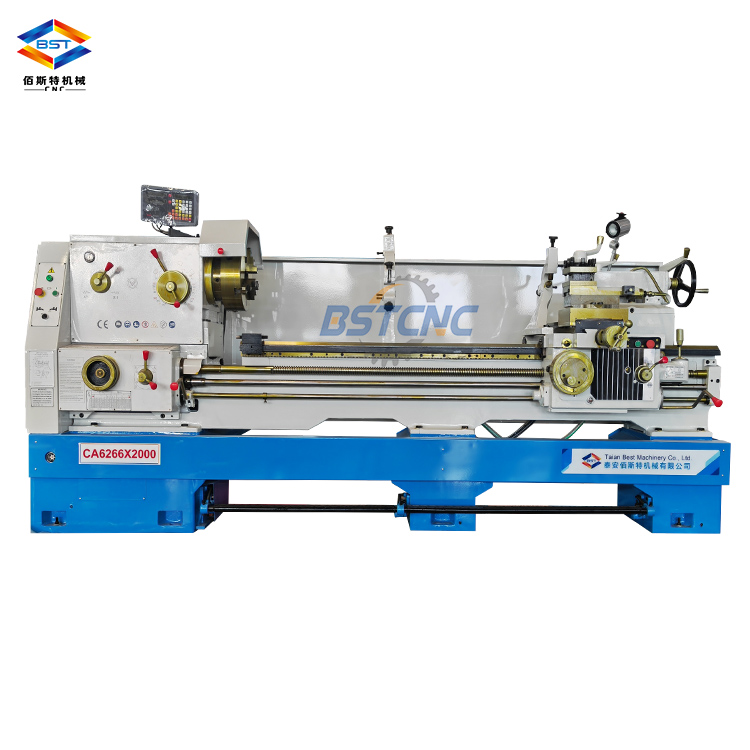

CA6166/CA6266 HORIZONTAL LATHE
CA6166/CA6266 HORIZONTAL LATHE CA6166/CA6266 HORIZONTAL LATHE CA6166/CA6266 HORIZONTAL LATHE CA6166/CA6266 HORIZONTAL LATHE CA6166/CA6266 HORIZONTAL LATHE

CA6166/CA6266 HORIZONTAL LATHE

Product Features:

  • -This lathe is suitable for internal and external turning,tapering ,and other rotating faces ,metric,module and inch threads, as well as drilling and pull oil slot .
  • -The lathe bed is 400mm,owns high rigidity,guide face after high frequency quenching,with high durability .
  • -Easy operated ,one handle to operate quite convenient .
  • -Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .

Standard configuration:

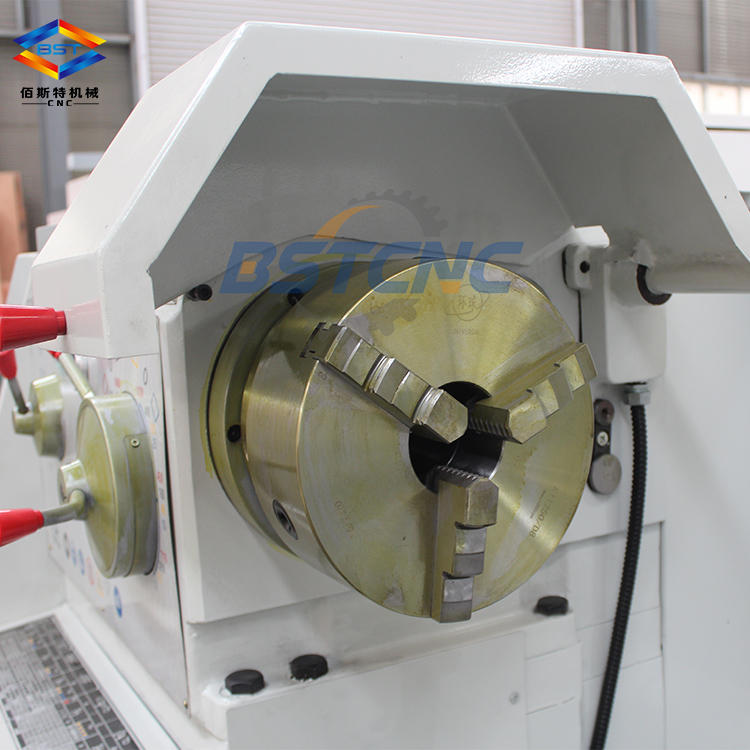

  • -3-jaw manual chuck;

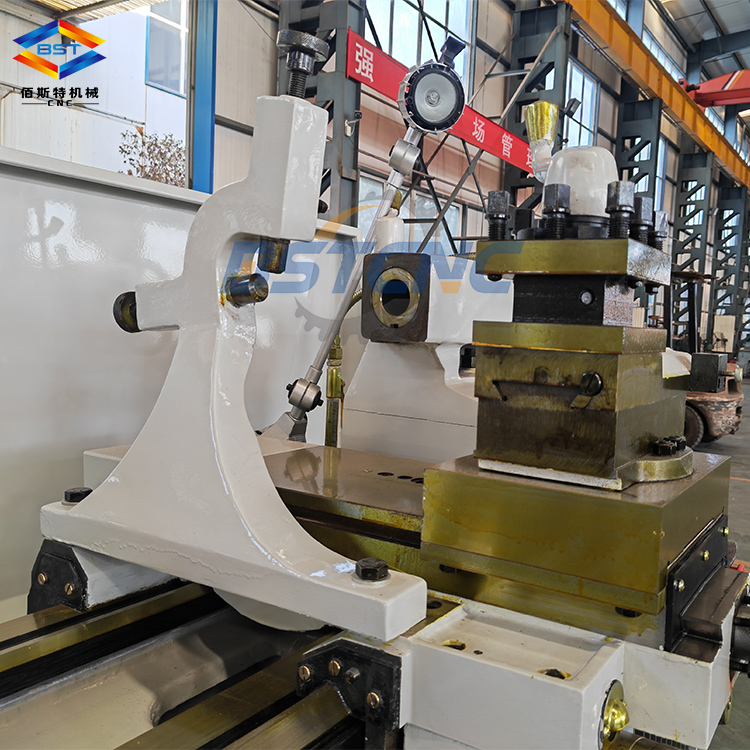

  • -4 station manual tool post;
  • -Manual tailstock ;
Product Parameter

Item

CA6166/CA6266

Max. Swing  over bed

660mm

Max. swing  over carriage

400mm

Max. swing in gapsaddle

880mm

Effective gap length

210mm

Max. Length of work piece

750/1000/1500/2000/3000/4000mm

Width of bed

400mm

Section of turning tool

25 x 25

Spindle speed

16-1400rpm(24 steps)

Hole through spindle

105mm

Spindle taper

NO.6(MT6) { Φ113 1:20}

Number of feeds

64 kinds

Range of metric threads(kinds)

(1-192mm) 44kinds

Range of inch threads(kinds)

(2-24tpi) 21kinds

Range of module threads(kinds)

0.25-48( Module 39 kinds)

Range of pitch threads(kinds)

1-96DP(37 kinds)

Max. Tailstock spindle travel

150mm

Tailstock spindle diameter

Φ75mm

Taper of Tailstock spindle center hole

NO.5 (MT5)

Main motor

7.5KW

Packing Dimension

2400x 1100 x 1400mm

Net /Gross weight

2300/2500KG
