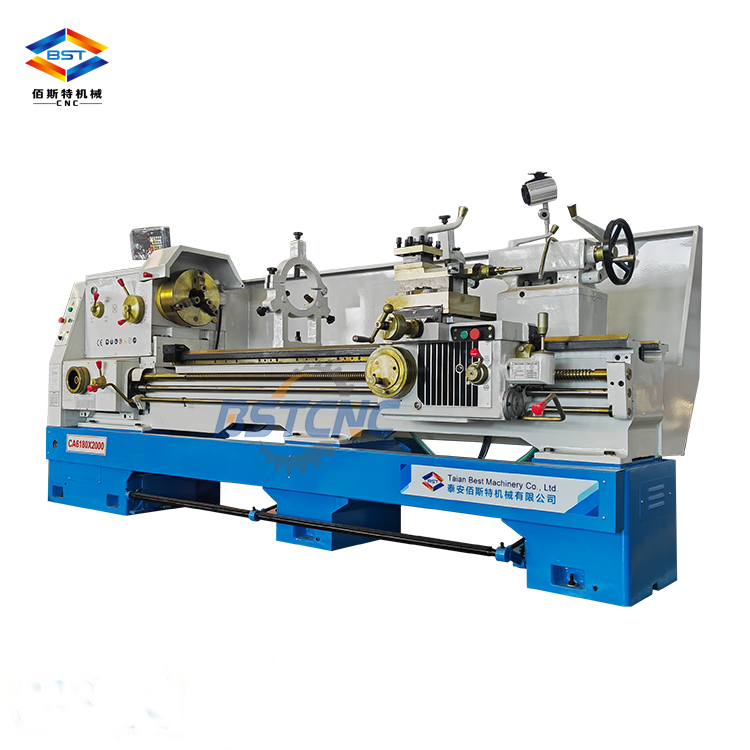

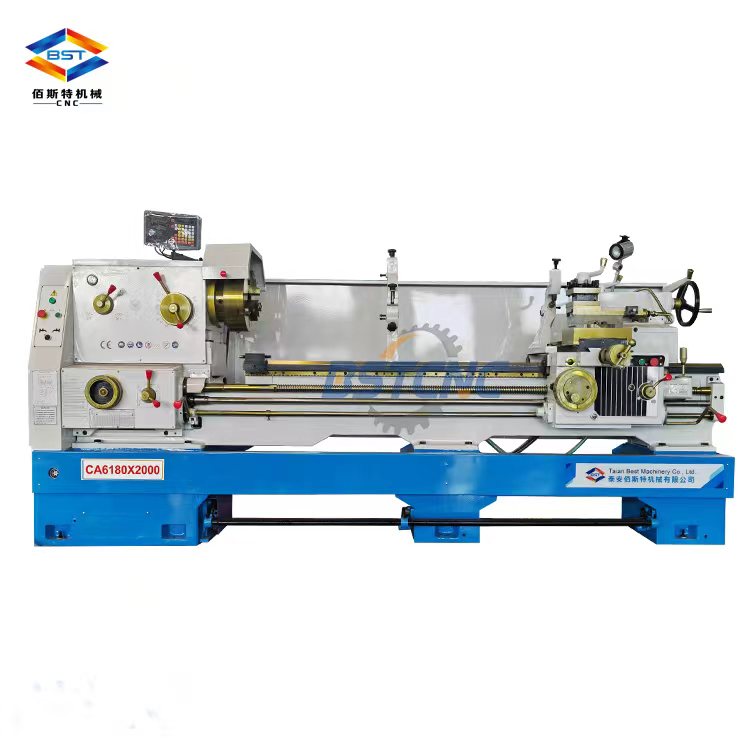

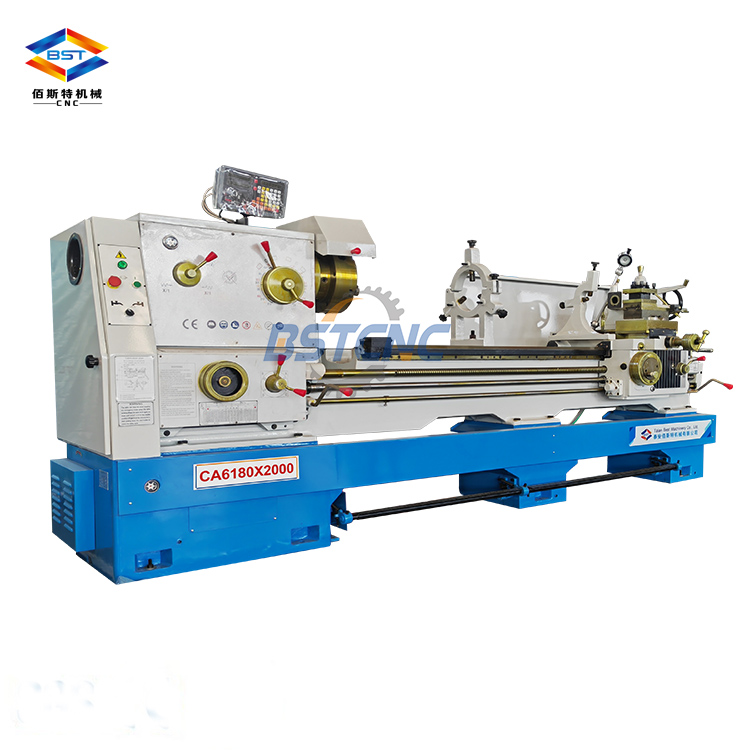

CA6180/CA6280 HORIZONTAL LATHE

Product Features:

-This lathe is suitable for internal and external turning,tapering ,and other rotating faces ,metric,module and inch threads, as well as drilling and pull oil slot .
-The lathe bed is 400mm,owns high rigidity,guide face after high frequency quenching,with high durability .
-Easy operated ,one handle to operate quite convenient .
-Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .

Standard configuration:

Product Parameter

Item	CA6180/CA6280
Max. Swing over bed	800mm
Max. swing over carriage	540mm
Max. swing in gap（saddle）	1020mm
Effective gap length	210mm
Max. Length of work piece	750/1000/1500/2000/3000/4000mm
Width of bed	400mm
Section of turning tool	25 x 25
Spindle speed	16-1400rpm(24 steps)
Hole through spindle	105mm
Spindle taper	NO.6(MT6) { Φ113 1:20}
Number of feeds	64 kinds
Range of metric threads(kinds)	(1-192mm) 44kinds
Range of inch threads(kinds)	(2-24tpi) 21kinds
Range of module threads(kinds)	0.25-48( Module 39 kinds)
Range of pitch threads(kinds)	1-96DP(37 kinds)
Max. Tailstock spindle travel	150mm
Tailstock spindle diameter	Φ75mm
Taper of Tailstock spindle center hole	NO.5 (MT5)
Main motor	7.5KW
Packing Dimension	2600X1200X1800mm
Net /Gross weight	2600/2400KG
