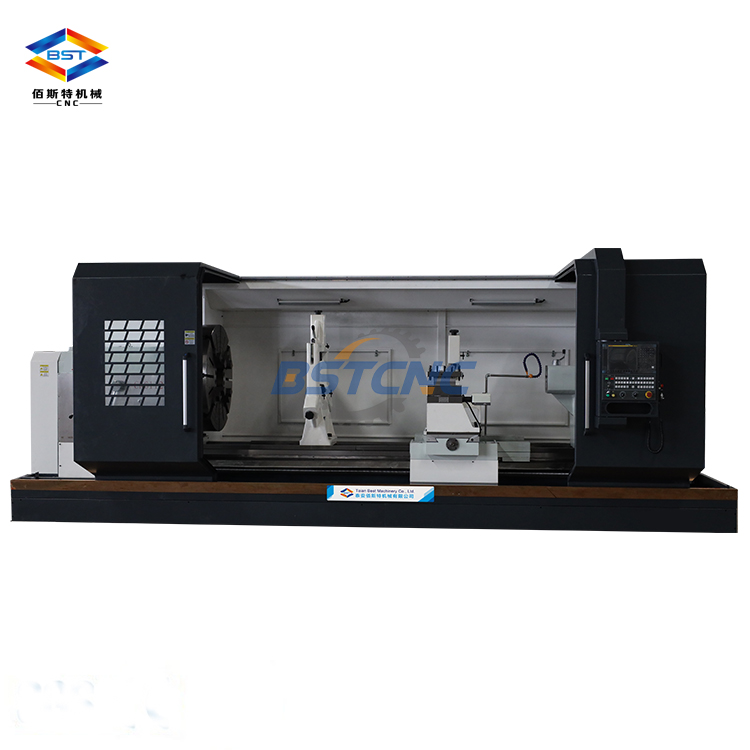

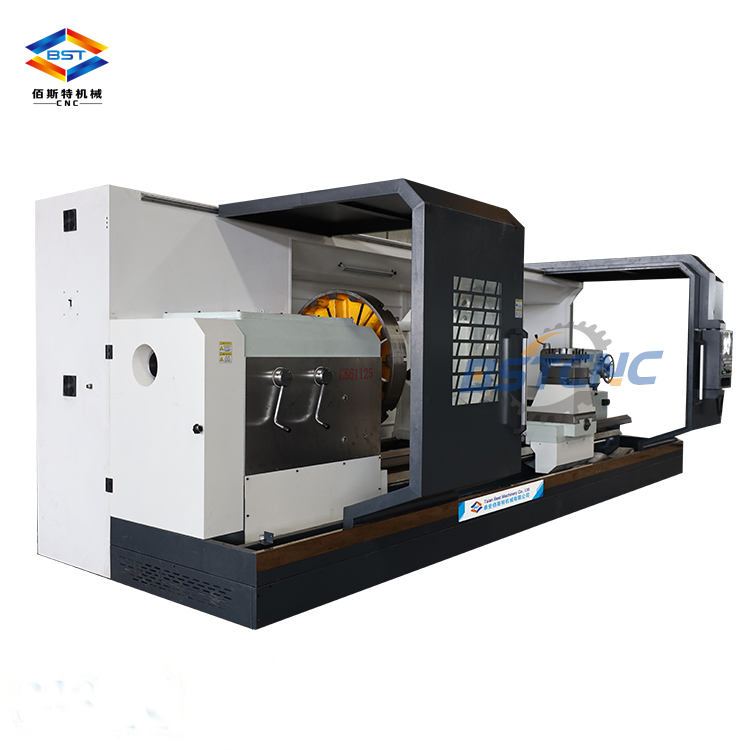

CK61125 Heavy Duty CNC Lathe
CK61125 Heavy Duty CNC Lathe CK61125 Heavy Duty CNC Lathe CK61125 Heavy Duty CNC Lathe CK61125 Heavy Duty CNC Lathe CK61125 Heavy Duty CNC Lathe

CK61125 Heavy Duty CNC Lathe

Product Description :
CK series heavy duty CNC lathe is universal standard automatic machining equipment for metal processing ,capable of semi-finish machining and finish machining of machinery components and parts ,with the main characters such as reliable strucyure and easy operating .This series lathe machine is mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surface ,and turning internal and external pipe threads including metric,inch ,module,DP threads etc.
Standard Configuration :
-GSK980TC3
-3 jaws manual chuck
-4 station electric turret
-manual tailstock

Product Parameter

Iitems

Unit

CK61125

Max dia.swing over bed

mm

1250

Max dia.swing over cross slide

mm

880

Max.length of work-piece

mm

1500/2000/3000/4000/5000/6000

Width of bed

mm

755

Spindle nose



A2-15

Spindle taper



1:20/140

Spindle bore

mm

130

Power of spindle motor

Kw

22

Range of spindle speed

R/min

                 17-250

Max.traverse of X/Z axis

mm

X:580 Z:1500

X/Z rapid traverse

mm/min

3000/6000





X-axis motor

Speed

r/min

1500

Torgue

N.m

18

Power

Kw

2.8





X-axis motor

Speed

r/min

1500

Torgue

N.m

30

Power

Kw

3.8

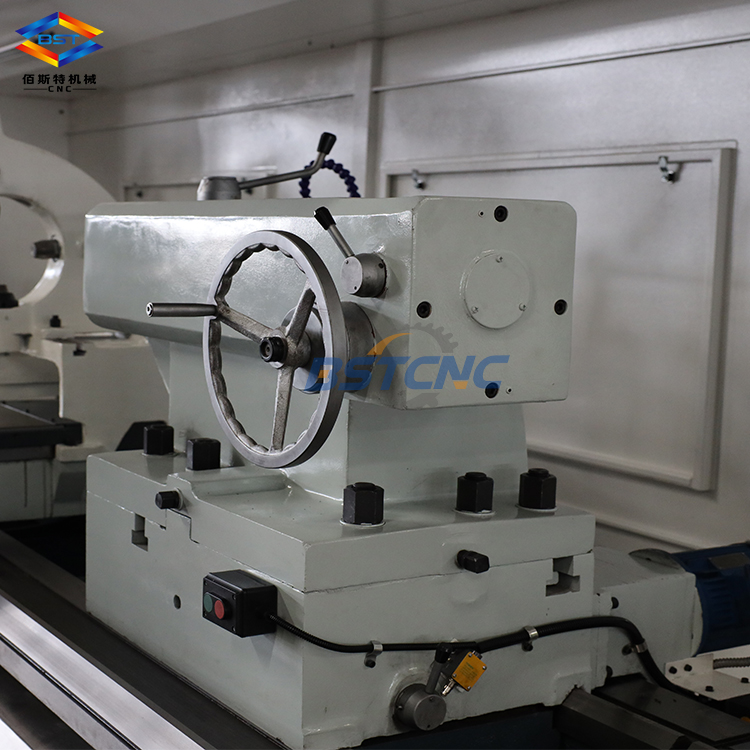

Tailstock quill

Diameter

mm

160

Travel

mm

300

Taper



Morse NO.6

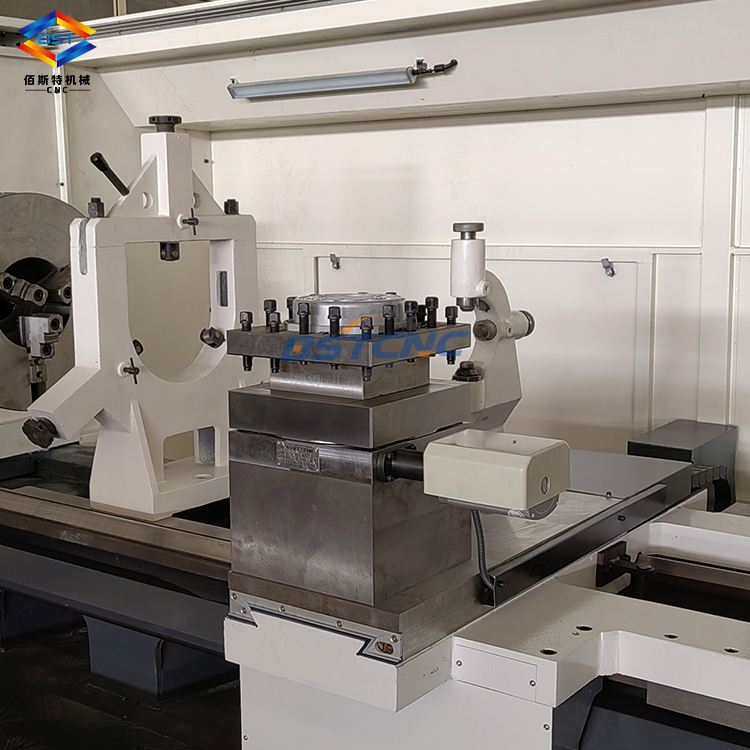

Electric tool-post

Model



SLD170

No.of tool stations



Vertical four station

Tool shank size

mm

32×32

Turret indexing time

S

2.6

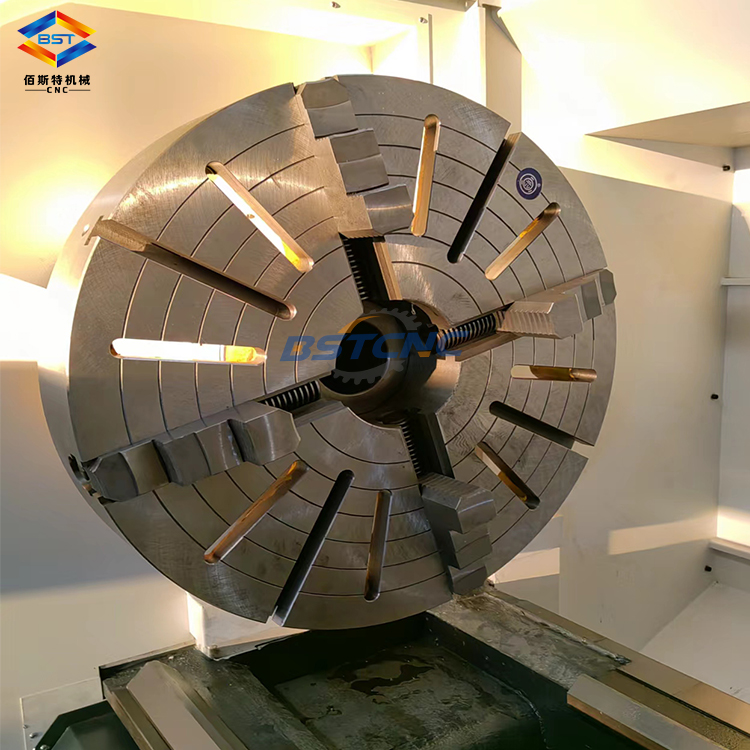

Chuck



K721000 four jaw chuck

Positioning accuracy

mm

0.020

Repositioning accuracy

mm

0.01

Overall dimensions(L*W*H)

mm

5000×2300×2300

Machine weight

KG

10000
