Product Description :

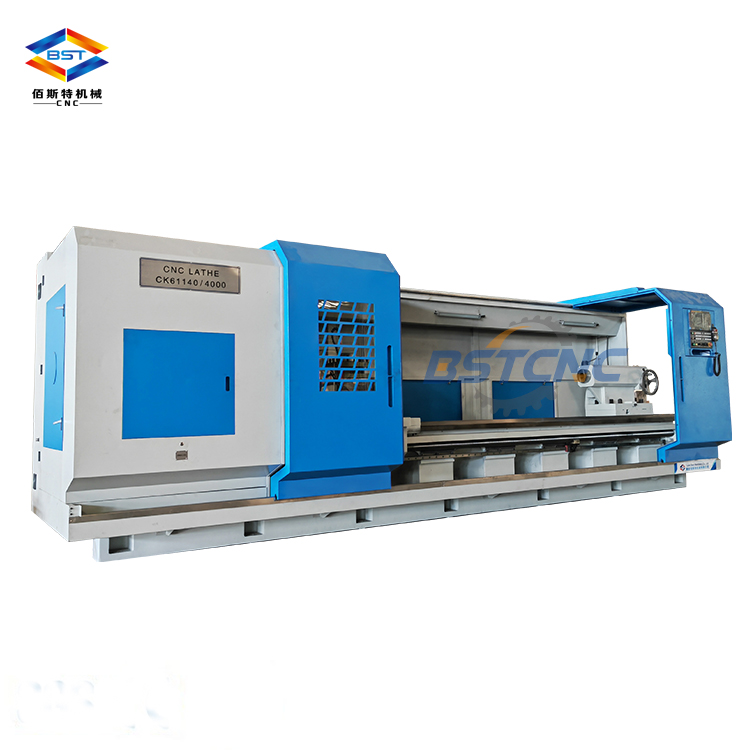

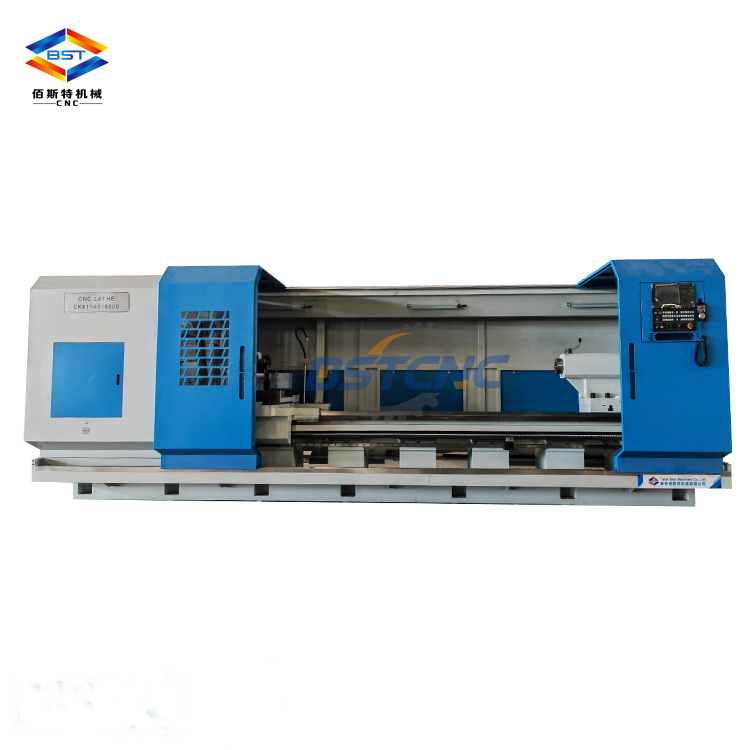

CK series heavy duty CNC lathe is universal standard automatic machining equipment for metal processing ,capable of semi-finish machining and finish machining of machinery components and parts ,with the main characters such as reliable strucyure and easy operating .This series lathe machine is mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surface ,and turning internal and external pipe threads including metric,inch ,module,DP threads etc.
Standard Configuration :
-GSK980TC3
-3 jaws manual chuck
-4 station electric turret
-manual tailstock
|
Item |
Unit |
CK61140 |
CK61160 |
|
|
Nc System |
|
GSK/SIEMENS/FANUC |
||
|
Max dia.swing over bed |
mm |
1400 |
1640 |
|
|
Max dia.swing over cross slide |
mm |
1000 |
1250 |
|
|
Max.length of work-piece |
mm |
1500/2000/3000/4000 |
||
|
Width of bed |
mm |
755 |
||
|
Maximum Weight of Loading |
KG |
5000 |
||
|
Spindle taper |
|
1：20/140 |
||
|
Spindle nose |
|
A2-15 |
||
|
Spindle bore |
mm |
130 |
||
|
Power of spindle motor |
Kw |
22 |
||
|
Mode of spindle speed |
|
Three gears，smooth adjustment |
Two gears，smooth adjustment |
|
|
Range of spindle speed |
r/min |
17-250 |
||
|
Max.traverse of X/Z |
mm |
X:630 Z:1500 |
||
|
X/Z rapid traverse |
mm/min |
3000/6000 |
||
|
X-axis motor |
Speed |
r/min |
1500 |
|
|
Torgue |
N.m |
18 |
||
|
Power |
Kw |
2.8 |
||
|
Z-axis motor |
Speed |
r/min |
1500 |
|
|
Torgue |
N.m |
30 |
||
|
Power |
Kw |
3.8 |
||
|

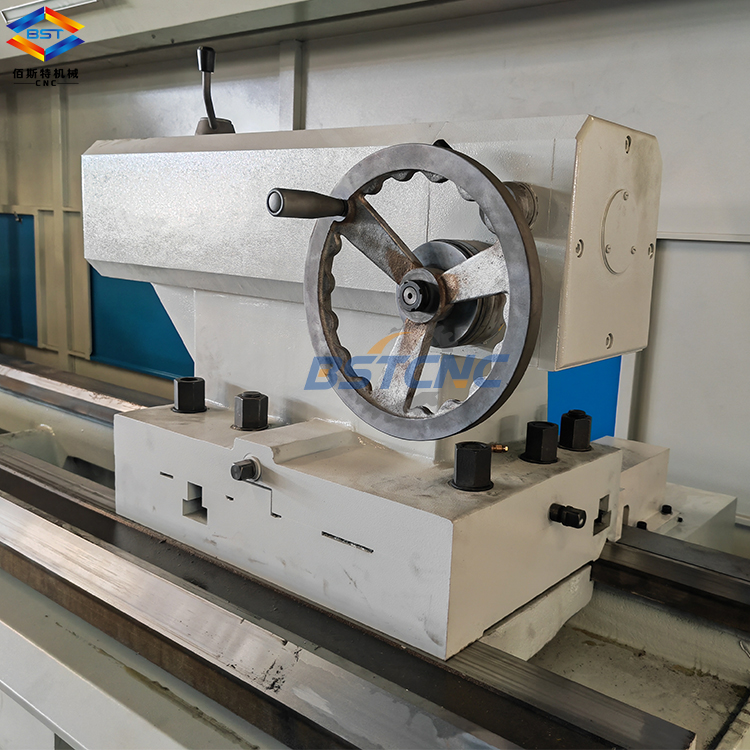

Tailstock quill |
Diameter |
mm |
160 |
|
|
Travel |
mm |
300 |
||
|
Taper |
|
Morse NO.6 |
||
|

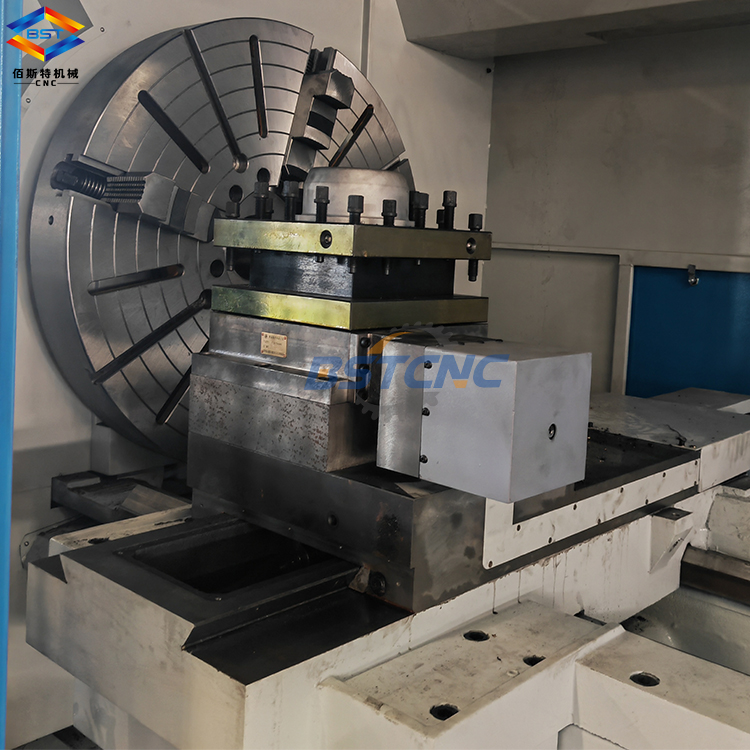

Electric tool-post |
Model |
|
SLD170A |
|
|
No.of tool stations |
|
Vertical 4 Station |
||
|
Dimension |
mm |
300×300 |
||
|
Turret indexing time |
S |
2.6 |
||
|

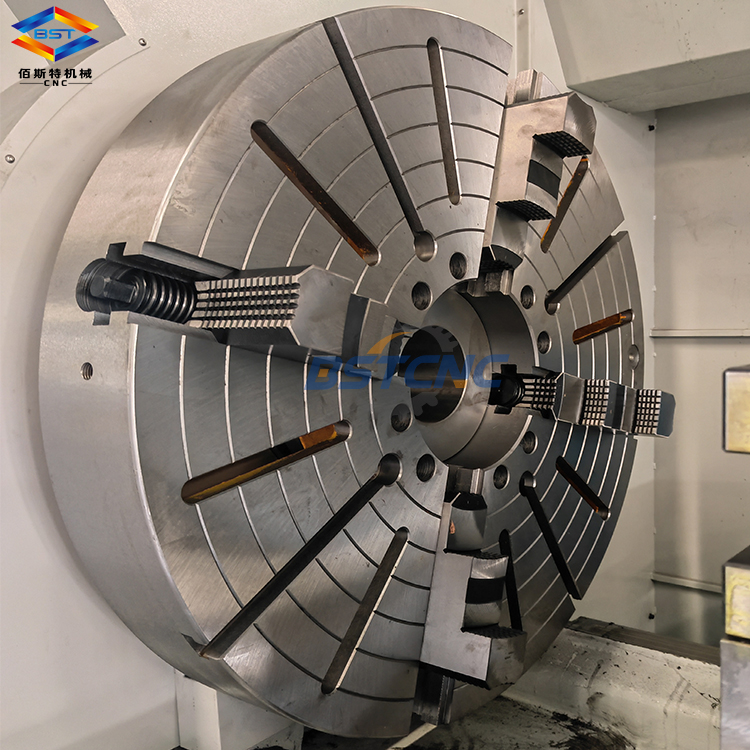

Chuck |
|
K72-φ1000 four jaw chuck |
||
|
Positioning accuracy |
mm |
0.020 |
||
|
Repositioning accuracy |
mm |
0.01 |
||
|
Overall dimensions(L*W*H) |
mm |
5500×2400×2200 |
5500×2600×2300 |
|
|
Machine weight |
T |
14.5 |
||
