Product Description :

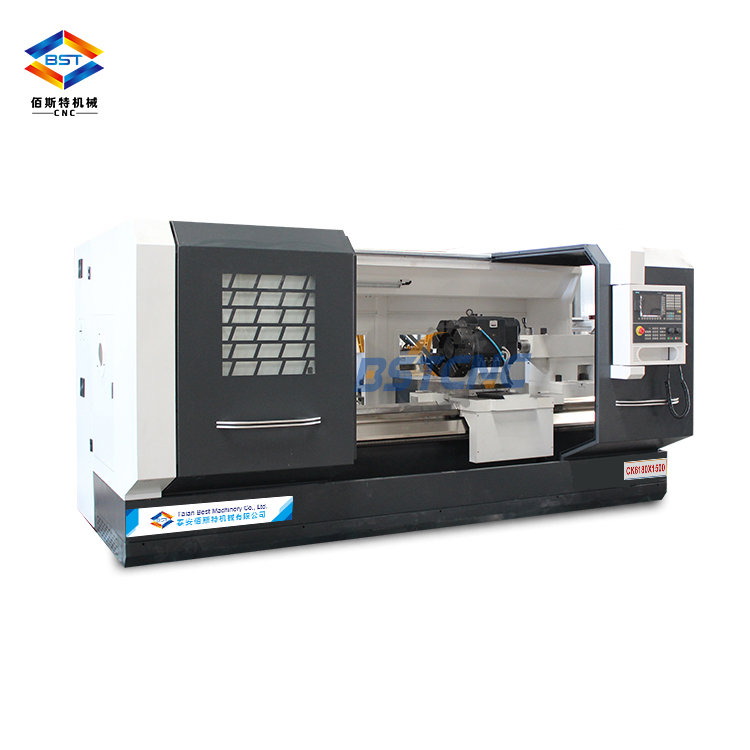

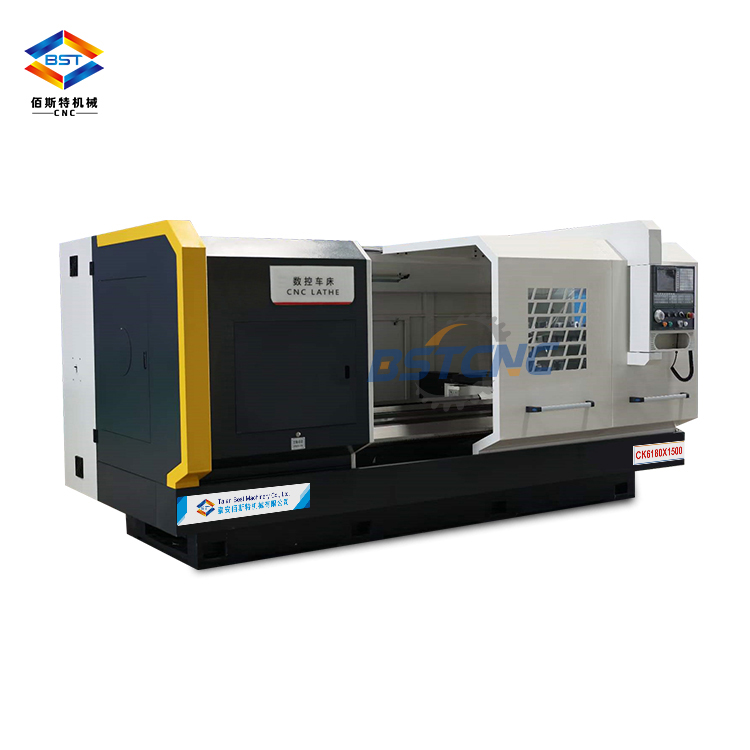

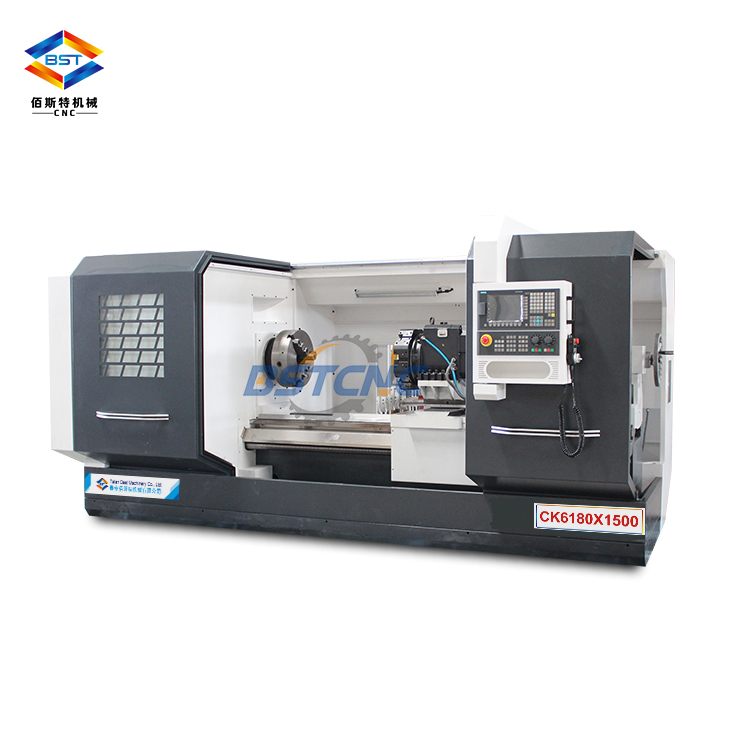

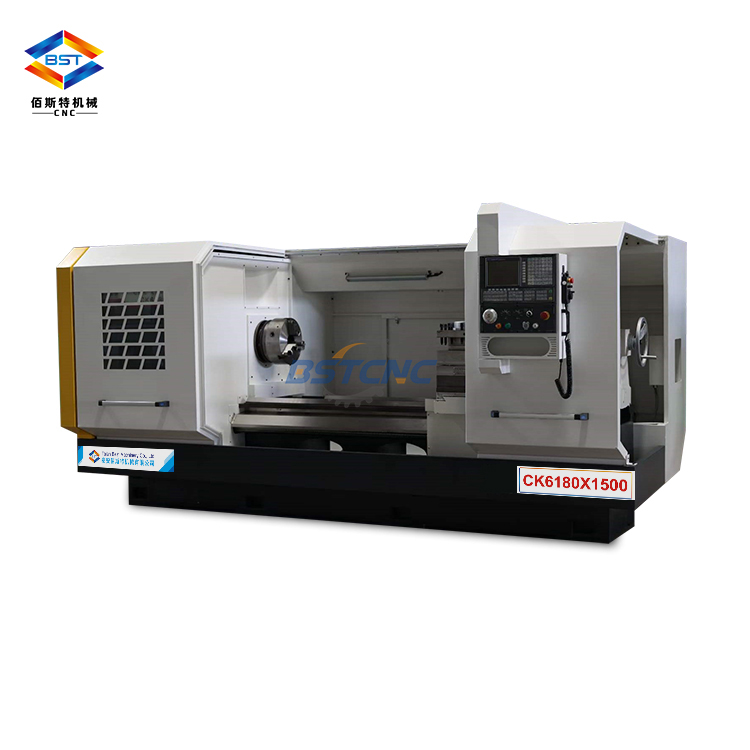

CK series heavy duty CNC lathe is universal standard automatic machining equipment for metal processing ,capable of semi-finish machining and finish machining of machinery components and parts ,with the main characters such as reliable strucyure and easy operating .This series lathe machine is mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surface ,and turning internal and external pipe threads including metric,inch ,module,DP threads etc.
Standard Configuration :
-GSK980TC3
-3 jaws manual chuck
-4 station electric turret
-manual tailstock
|
Iitems |
Unit |
CK6180 |
|
|
Max dia.swing over bed |
mm |
800 |
|
|
Max dia.swing over cross slide |
mm |
480 |
|
|
Max.length of work-piece |
mm |
1500/2000/3000/4000 |
|
|
Width of bed |
mm |
550/650 |
|
|
Spindle nose |
|
C11 |
|
|
Spindle taper |
|
1：20/120 |
|
|
Spindle bore |
mm |
104 |
|
|
Power of spindle motor |
Kw |
11 |
|
|
Mode of spindle speed |
|
Three gears，smooth adjustment |
|
|
Min.Feeding set unit of X/Z axis |
mm |
0.001 |
|
|
X/Z rapid traverse |
mm/min |
4000/8000 |
|
|
X-axis motor |
Speed |
r/min |
1500 |
|
Torgue |
N.m |
15 |
|
|
Power |
Kw |
2.3 |
|
|
X-axis motor |
Speed |
r/min |
1500 |
|
Torgue |
N.m |
18 |
|
|
Power |
Kw |
4.7 |
|
|
Tailstock quill |
Diameter |
mm |
100 |
|
Travel |
mm |
250 |
|
|
Taper |
|
Morse NO.6 |
|
|
Electric tool-post |
Model |
|
HAK-21240 |
|
No.of tool stations |
|
Vertical four station |
|
|
Tool shank size |
mm |
32×32 |
|
|
Turret indexing time |
S |
4.1 |
|
|
Chuck |
|
K11-φ320 three jaw chuck |
|
|
Positioning accuracy |
mm |
0.020 |
|
|
Repositioning accuracy |
mm |
0.01 |
|
|
Overall dimensions(L*W*H) |
mm |
3700×1800×1800 |
|
|
Machine weight |
KG |
||
