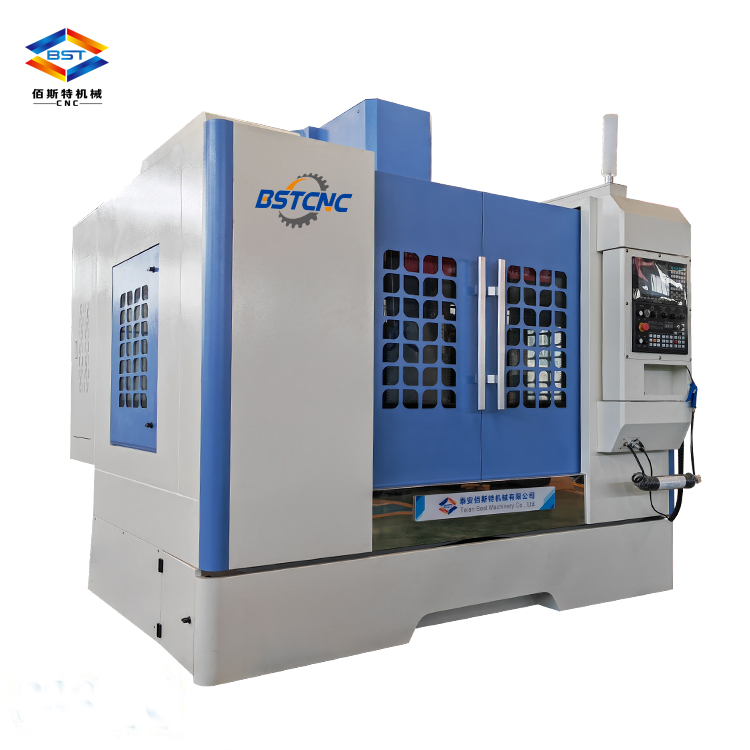

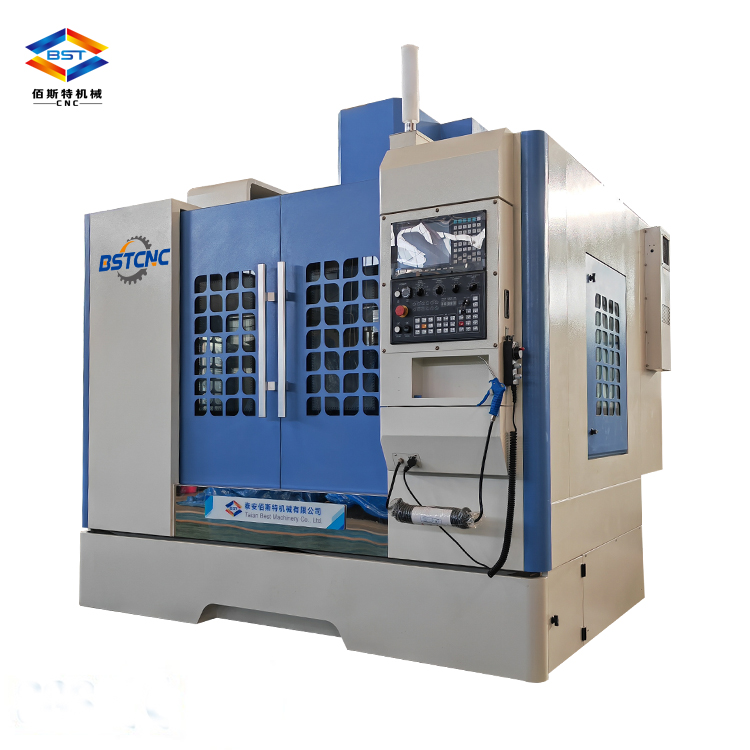

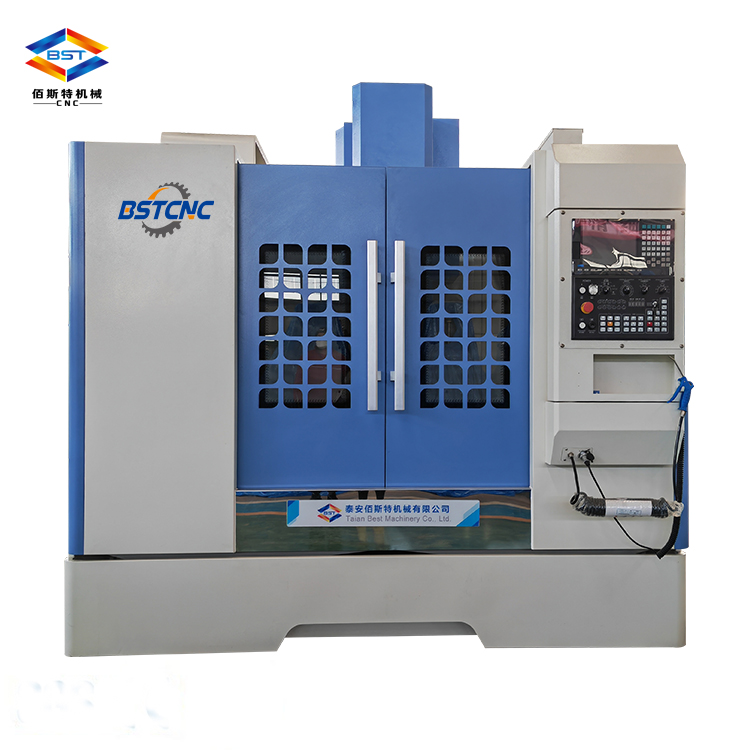

Product Description :
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Standard configuration:
|
Items |
VMC 550 CNC Machining Center |
|
|
Travel |
X axis |
550mm |
|
Y axis |
260mm |
|
|
Z axis |
450mm |
|
|
Spindle nose to table |
120-500mm |
|
|
Spindle nose to column |
420mm |
|
|
Feed |
max X rapid feed |
20 m/min |
|
max Y rapid feed |
20 m/min |
|
|
max Z rapid feed |
18m/min |
|
|
Cutting feed |
1-10000mm/min |
|
|
Torque |
X:10 N.m Y:10 N.m Z:10N.m |
|
|
Table |
Table size |
800×260mm |
|
Max load |
400Kg |
|
|
Table surface to floor |
840 mm |
|
|
T slot |
3×14×90mm |
|
|

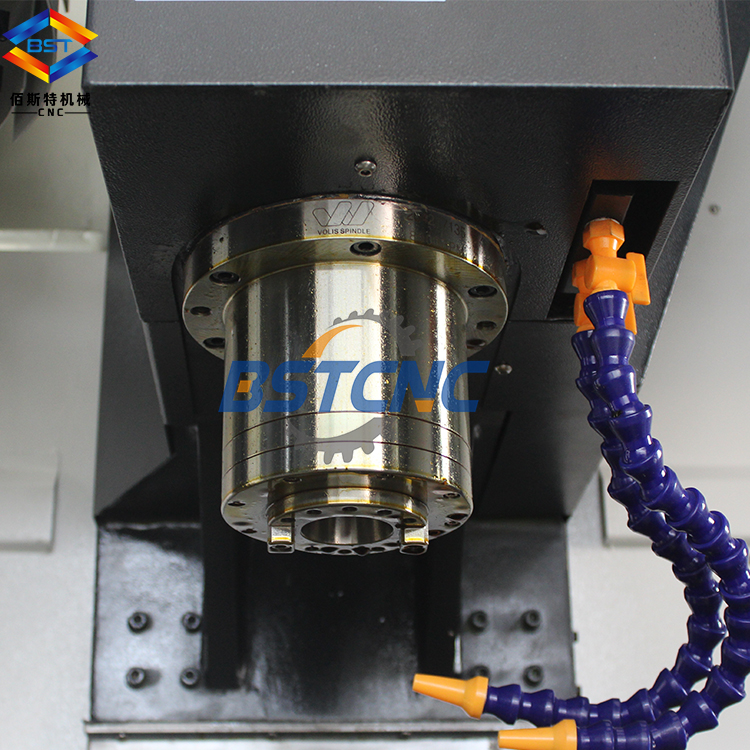

Spindle |
Type |
Belt |
|
Speed |
50-8000 rpm |
|
|
Spindle Diameter |
Φ120 mm |
|
|
Spindle taper |
BT40 |
|
|
Main motor |
5.5/7.5KW |
|
|
Accuracy |
Accuracy （JIS） |
±0.015/300mm |
|
Repeatability （JIS） |
±0.0075mm |
|
|
Other |
Machine Net weight |
2800 Kgs |
|
Machine Gross weight |
3000Kgs |
|
|
Machine size |
1980x1800x1990mm |
|
|
Packing Size |
2180x2000x2990mm |
|
