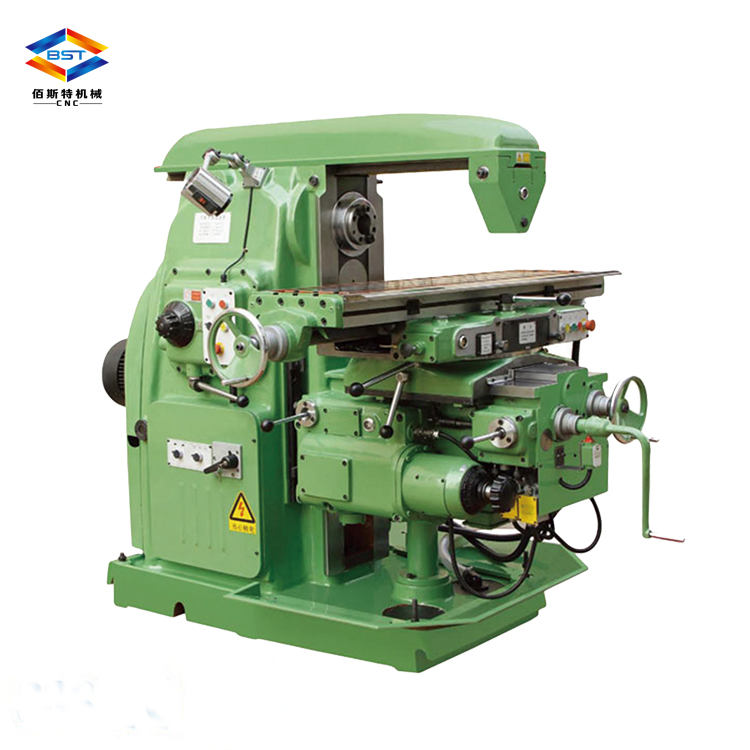

The X6140 and X6132 milling machine can process flat surfaces, inclined surfaces, grooves, holes, gears, etc. If a universal milling head, workbench, indexing head, and other accessories are used, the machining range of the machine tool can be expanded. The workbench can rotate 45 º to the left and right respectively. When the workbench rotates a certain angle around its vertical center and is equipped with a indexing head, it can mill the spiral surface (such as the spiral groove of the drill bit, spiral gear, drum, etc.).
|
Specifications |
Units |
X6140 |
X6132 |
|
Table size（length×width） |
mm |
1700×400 |
1325×320 |
|
T-slot number/width/pitch |
mm |
3/18/70 |
3/18/70 |
|
Table travel(X/Y/Z)(manual/auto) |
mm |
900/880,315/300,350/330 |
700/680,255/240,350/330 |
|
Range of table speed X/Y/Z |
mm/min |
23.5-1180/15-786/8-394 |
23.5-1180/15-786/8-394 |
|
Rapid speed of table（X/Y/Z） |
mm/min |
2300/2300/770 |
2300/1540/770 |
|
Max load |
kg |
500 |
500 |
|
Distance between spindle nose and table |
mm |
30-380 |
30-350 |
|
Distance between spindle and column |
mm |
255-570 |
215-470 |
|
Spindle taper |
|
ISO50 7:24 |
ISO50 7:24 |
|
Spindle bore |
mm |
Φ29 |
Φ29 |
|
Spindle speed |
rpm |
18 steps 30-1500rpm |
18 steps 30-1500rpm |
|
Max rotary angle of table |
|
±45° |
±45° |
|
Main motor power |
kw |
11 |
7.5 |
|
Main motor speed |
rpm |
1450 |
1440 |
|
Feed motor power |
kw |
1.5 |
1.5 |
|
Feed motor speed |
rpm |
1430 |
1400 |
|
Overall dimension |
mm |
2556×2159×1770 |
2294×1780×1610 |
|
Machine weight |
kg |
3800 |
2650 |
