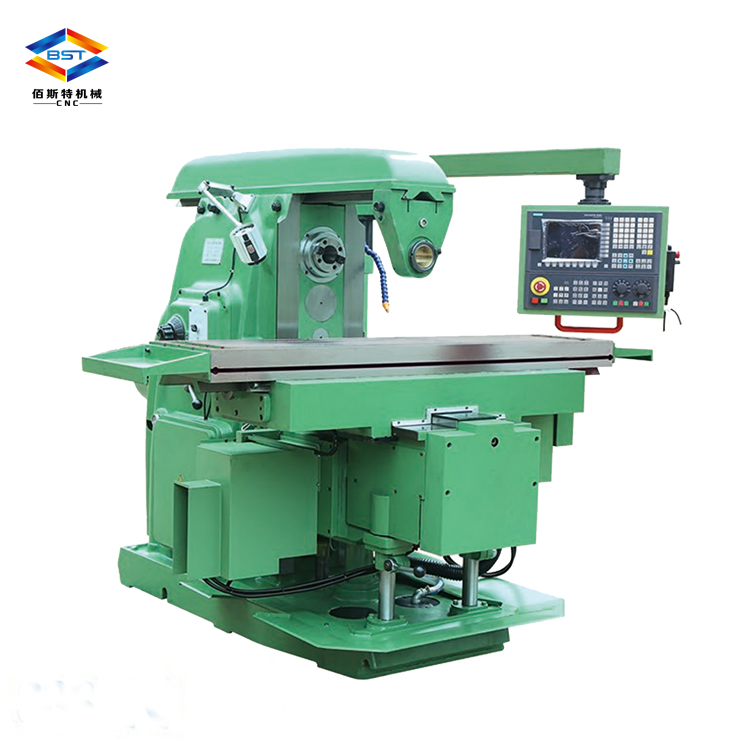

The XK6140 and XK6132 milling machine can process flat surfaces, inclined surfaces, grooves, holes, gears, etc. If use a universal milling head, workbench, indexing head, and other accessories are used, the machining range of the machine tool can be expanded. The workbench can rotate 45 º to the left and right respectively. When the workbench rotates a certain angle around its vertical center and is equipped with a indexing head, it can mill the spiral surface (such as the spiral groove of the drill bit, spiral gear, drum, etc.).
|
Specification |
Unit |
XK6132 |
XK6140 |
|
Table travel of X/Y/Z |
mm |
900x290x270 |
920x380x350 |
|
Table size |
mm |
320x1325 |
400x1700 |
|
T-slot of number/width/pitch |
mm |
3-18-70 |
3-18-90 |
|
Max. load of table |
kg |
320 |
500 |
|
Distance from spindle to table |
mm |
60~330 |
60~370 |
|
Distance from column vertical guideway to the center of table |
mm |
225~505 |
275~625 |
|
X,Y,Z Rapid feed speed |
mm/min |
5000/3000/4000 |
5000/3000/4000 |
|
X,Y,Z Feed speed |
mm/min |
3-3000 |
3-3000 |
|
Spindle taper |
|
ISO50 (7:24) |
ISO50 (7:24) |
|
Spindle speed range |
r/min |
30-1500 |
30-1500 |
|
Spindle speed step |
steps |
18steps |
18steps |
|
Spindle motor power |
kw |
7.5 |
11 |
|
Longitudinal, transverse feed motor torque |
N.m |
12 |
12 |
|
Vertical feed motor torque |
N.m |
22 |
22 |
|
Max. spindle torque |
N.m |
1000 |
1000 |
|
Overall dimensions(L×W×H) |
mm |
2300×2100×2000 |
2600×2200×2400 |
|
Net weight |
kg |
2800 |
3900 |
